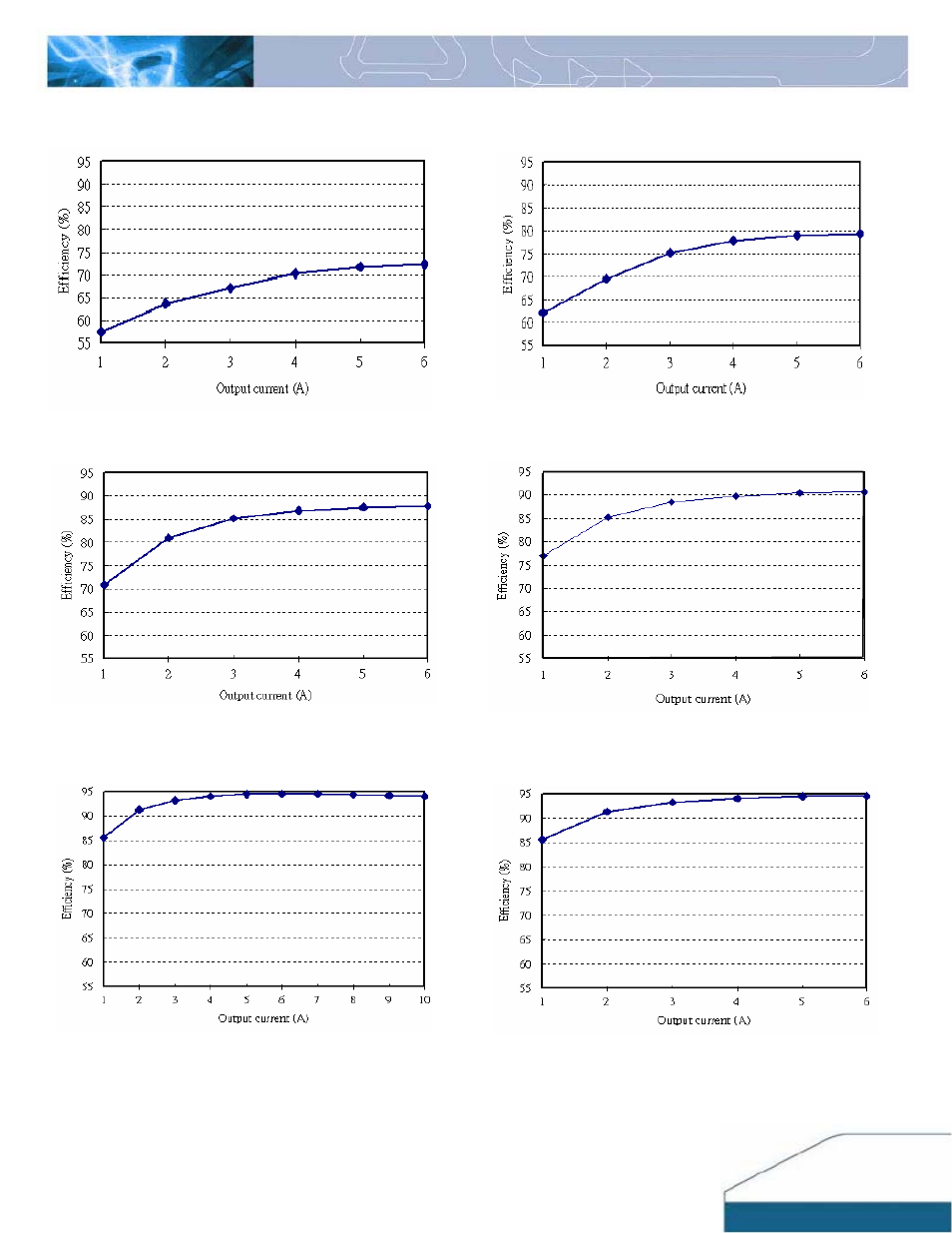

ELECTRICAL CHARACTERISTICS CURVE
Figure 1:
Converter efficiency vs. output current
(0.59V output voltage, 12V input voltage)
Figure 2:
Converter efficiency vs. output current
(0.9V output voltage, 12V input voltage)
Figure 3:
Converter efficiency vs. output current
(1.8V output voltage, 12V input voltage)
Figure 4:
Converter efficiency vs. output current
(2.5V output voltage, 12V input voltage)
Figure 5:
Converter efficiency vs. output current
(3.3V output voltage, 12V input voltage)
Figure 6:
Converter efficiency vs. output current
(5.0V output voltage, 12V input voltage)
