1.2 System Requirements
1. A PC with Pentium series, or equivalent.
2. A minimum of 16M bytes of RAM.
3. One available USB type A downstream port (UHCI, OHCI, or EHCI).
4. Windows 98 or later.
1.3 Package Contents
The product you purchased should contain the equipment and
accessories shown as follows:
1. A Harbour 2.0.
2. One 6” USB AB type cable.
3. One 2A switching power adapter.
4. One Harbour 2.0 driver and User’s manual CD.
1.4 Connectors (

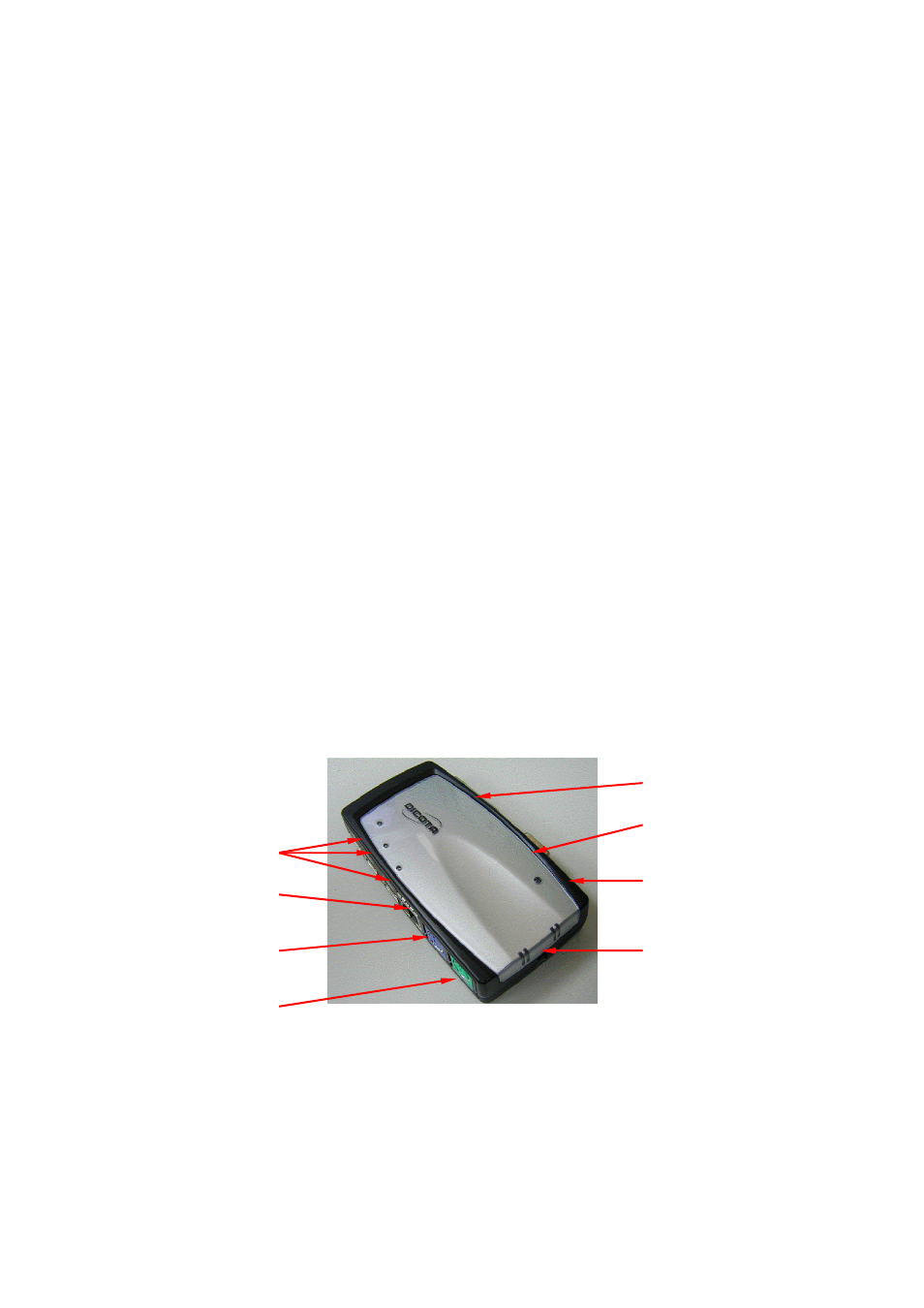

Ref. Fig.1
)
1. One DB-9 RS-232 serial interface connector supports baud rates from
2,400 to 115.2K.
2. One DB-25 parallel printer connector supports IEEE-1284 printer port.
3. One Mini-din for PS/2 keyboard, mouse.
4. Three USB receptacles type A downstream ports.
5. One USB type B upstream connector.
6. One RJ45 Ethernet connector.
Parallel Port
Serial Port
USB 2.0 Downstream
USB Upstream
RJ45 Ethernet
PS/2 Keyboard Power Connector
PS/2 Mouse
Fig.1
1.5 Available functions.
