2.3 Set Up the Printer Device

Follow the steps below to connect your printer to the Harbour 2.0 with

your PC:

2.3.1 For Windows 98/98SE/ME:

1. Connect the Harbour 2.0 to your printer with the parallel cable and

then turn on the printer.

2. Connect the Harbour 2.0 to the USB port on your computer with the

USB2.0 transfer cable provided.

3. Please go to Start, Settings, Control Panel, double click System,

and Device Manager. Check Ports on the dialog box and see which

printer ports the “USB-to-Parallel Port” is located. The following

example is located as LPT2. (Ref. Fig.5)

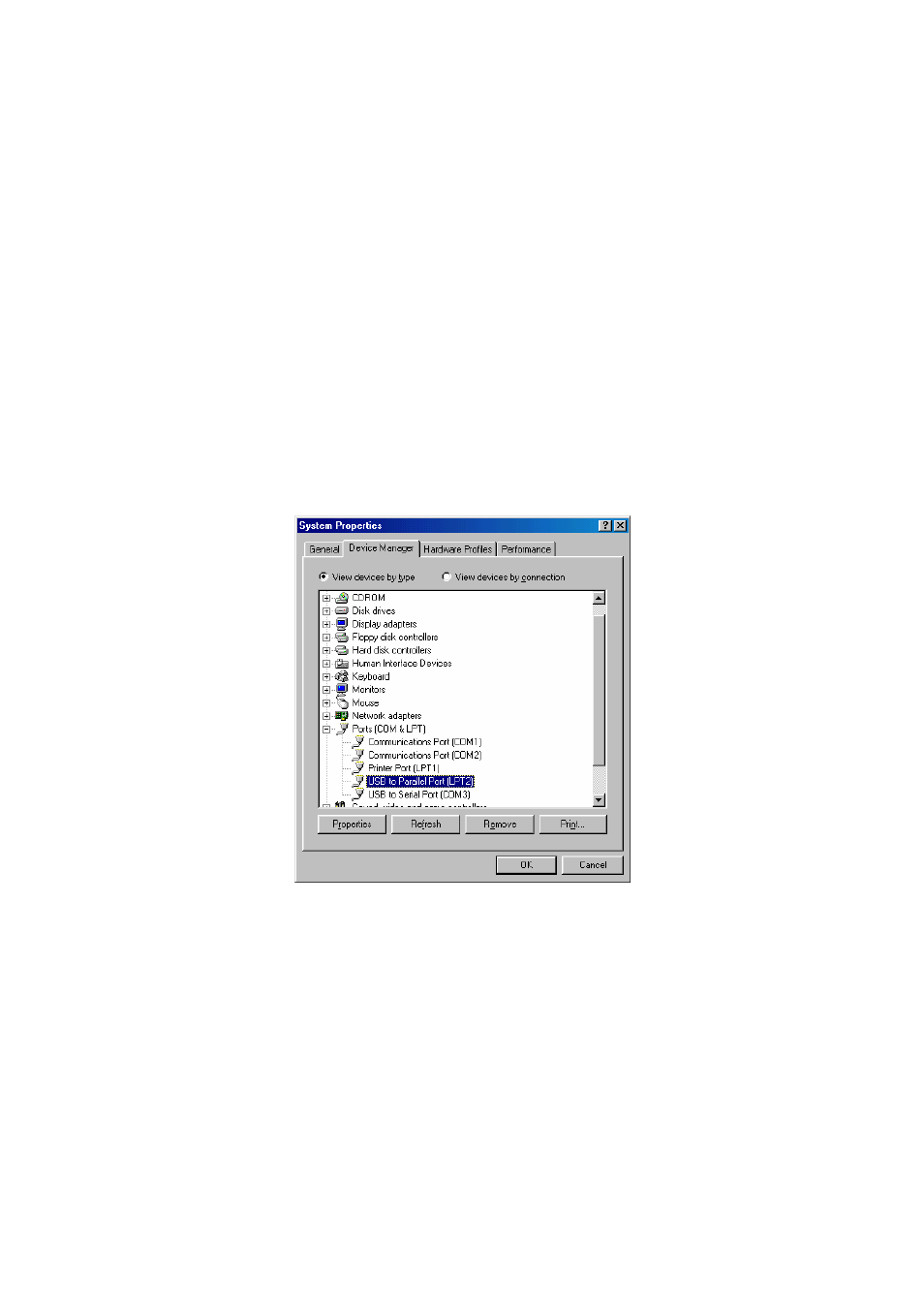

Fig.5

4. If you have installed a printer device before, go to Start, Settings,

and Printers. Right-click the default-installed printer and choose

Properties. The Properties dialog box of the installed printer will

appear on your screen.
