4 Design and planning
4.1 General Information
The fresh water station is a fresh water module
that heats domestic water according to the contin-
uous flow heater principle. In order to ensure fault-
free operation of the fresh water station, the
system must fulfil certain prerequisites. Before
installation, take some time for planning.
CAUTION!
Danger of scalding due to hot water!
Due to external circulation in the primary cir-
cuit, water with a temperature of up to 90 °C
can leak out at the dispensing connection.
– No external pumps are permitted to be
installed between the fresh water module
and the buffer tank.
– The fresh water module is not permitted to
be connected to a heating cycle distributor.
Installation example
The operating mode can be bivalent alternative.
This hydraulic diagram serves merely to assist in planning activities;
the hydraulic system on site must be planned and laid out by the installer!
Subject to technical changes!
MPS 800
oder/or
MPS 1000
A
B
C
FB KW WW
D
E

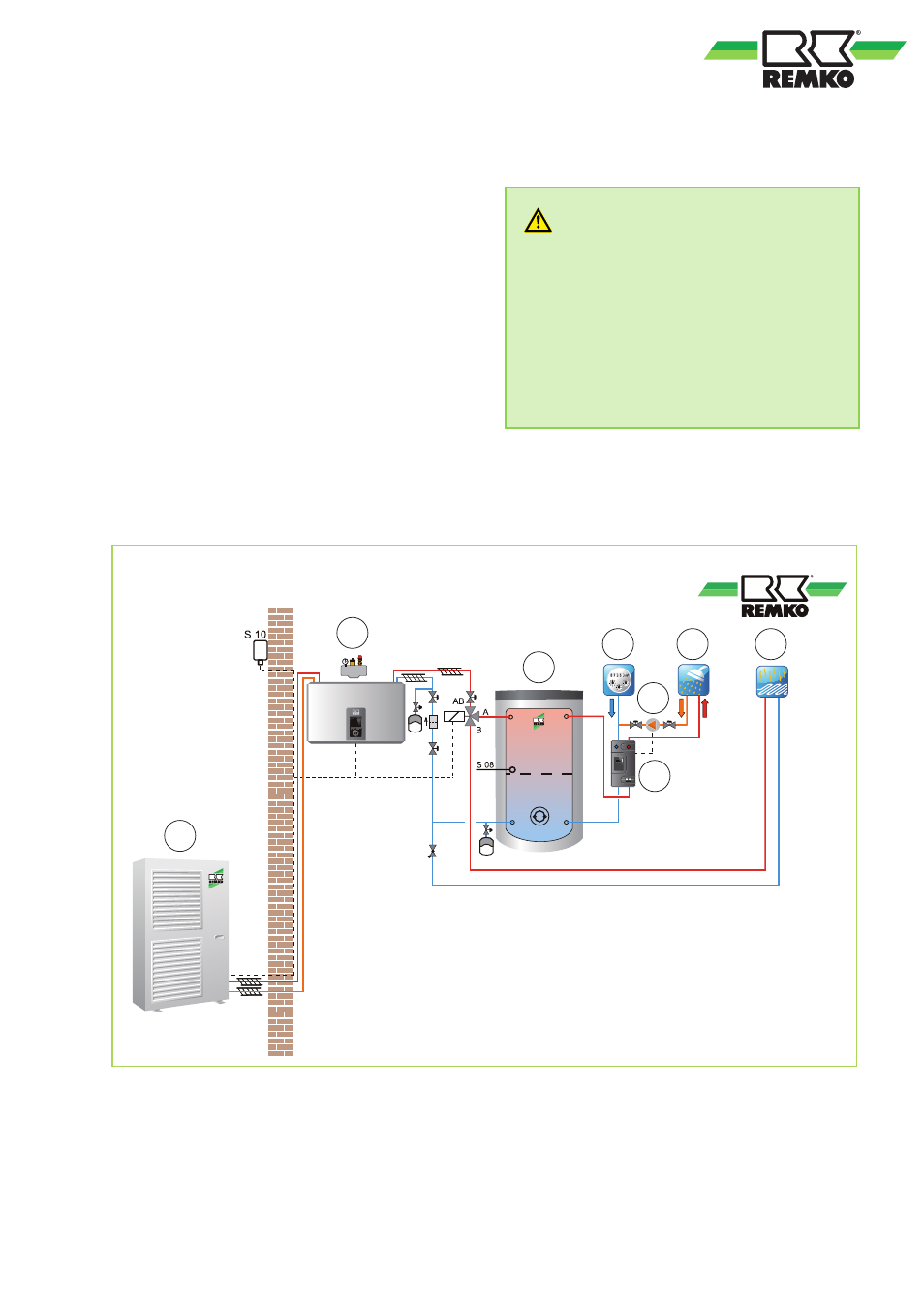

Fig. 3: Fresh water station with optional circulation set and optional return distribution
(Schematic with missing hydraulic components!)
A: Outdoor module
B: Indoor module
C: Storage tank
D: Circulation
E: Fresh water station EFS 35
FB: Floor heating cycle
KW: Cold water
WW: Hot water
