REMKO Fresh Water Station - Manual (Page 11)

11
Zirkulationspumpe
( bauseits )
Verteilerdose
( bauseits )
Steckerschaltuhr
( bauseits )

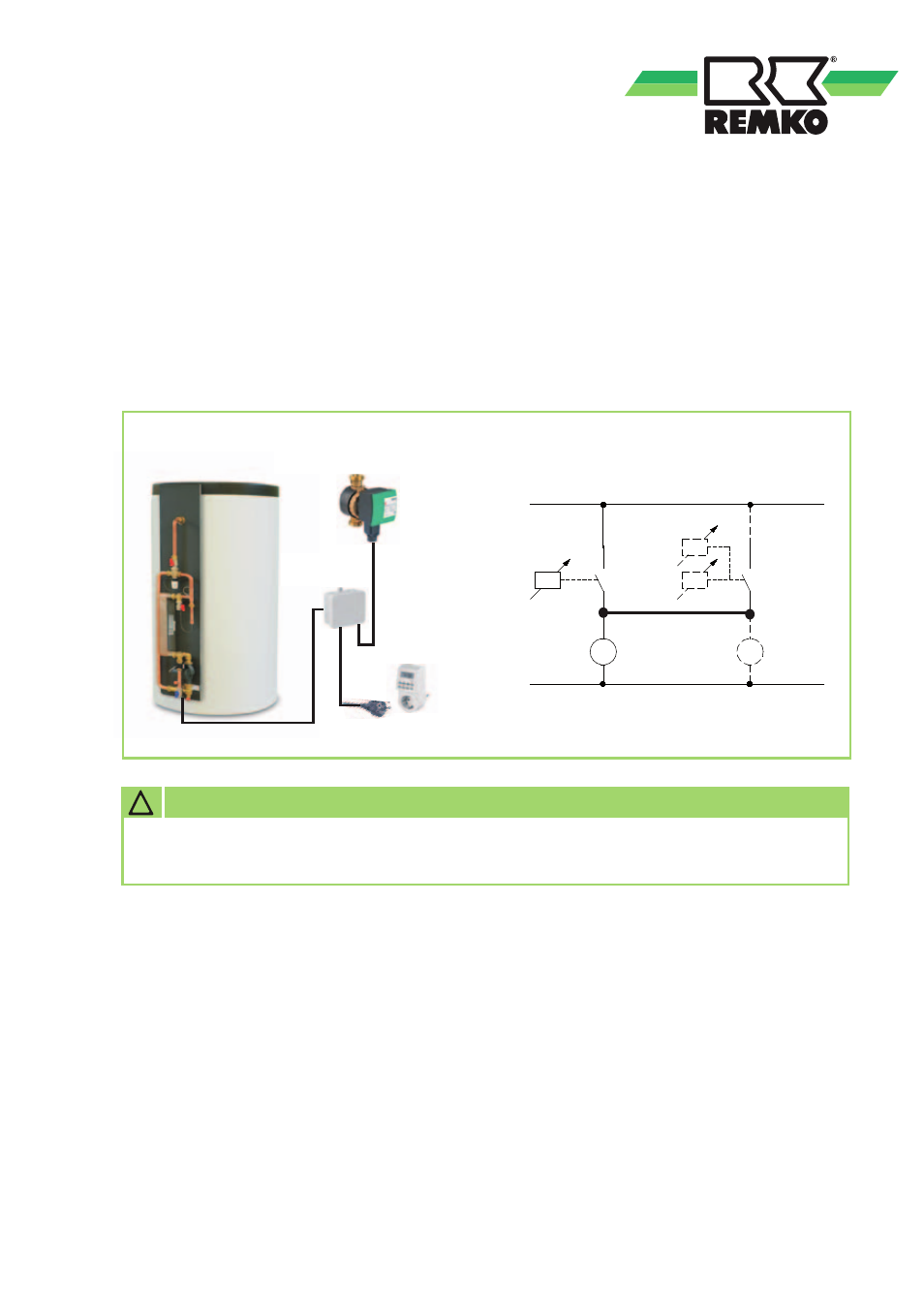

Supplemental note with regard to the on-site
drinking water circulation system
Circulation pump
Fresh water station
M
~
l/h
L
N
M
~
t
T
Flow switch
Circulation pump (on site)
thermostatically
and / or timed
In rare cases, it can happen that the pressure loss in the circulation line is relatively
large and that, as a consequence, the circulation pump's output will not be adequate
to overcome the fresh water station flow monitor's activation threshold of 1.5 l/min.
As soon as a timer is connected on-site to the circulation pump and is in operation,
the following switching will also activate the fresh water station's circulation pump.
The necessary materials are to be provided by the customer (see illustration).
Junction box
(on site)
Connected timer
(on site)
Make sure phases are synchronised! (the same mains circuit for the fresh water
station mains socket and the connected timer!)
! CAUTION
Circulation
pump
(on site)
Note that the
control can be
thermostatic or
timed (T or t)
