Nevertheless, except Posiflex peripheral device, do not connect any other
device to this port before the power in this port is disabled.
CAUTION:
Please turn off the system power first! Then hold the base and
move the terminal carefully.
Connecting Cables
To have the terminal ready for operation, please connect all required cables to
the appropriate connectors. Please make sure that each connector is connected
to the correct port with the correct orientation. Damages due to incorrect
connection or orientation are not covered by product warranty!
Some connectors like the LAN or CR connector have to be gently inserted
until a click is heard. It is recommended that connectors such as the COM port
and VGA connector be screwed into place once seated. Please make sure that
each connector has to be connected to the right device in the right way.
CAUTION: On doing any insertion or extraction of any connector, please
always hold the connector head itself instead of pulling on the
cable wire. Failure to do this could damage the cable and jack
that is considered as an artificial destruction and is not
covered by the warranty.
Preparing the Main Unit

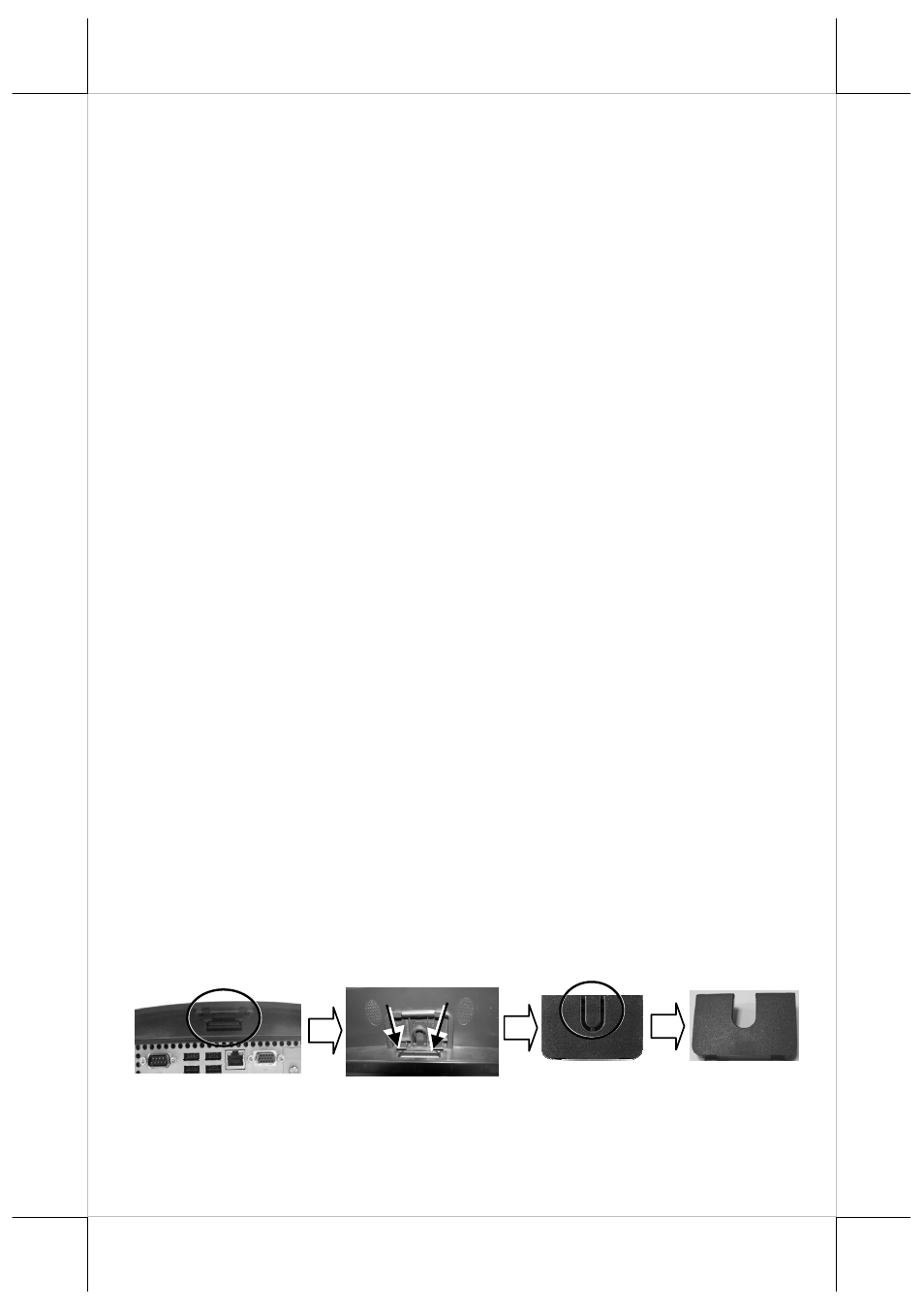

Before install the rear mount upgrade kits such as customer display, there is
one step needs to do. Please release the cable exit cover as following steps:
A: Please find the back of cable cover which just near the I/O plate.
B: Please use the Fingertip to release compression lock.
C: after the cable cover released, please cut the circle part which show in the
picture C.
After finish this step, the cable cover can be fixed back when the rear mount
upgrade kits fixed.
B A C
