5.4.2 Timer Setting
Before turning on the timing output, you should set the timer parameters, including
voltage, current and output time. This function allows up to 100 groups of timer
parameters.
In timer status, press the Set key to enter/exit timer setting interface.
Number Voltage Current
Output
time
Editing value
Page number

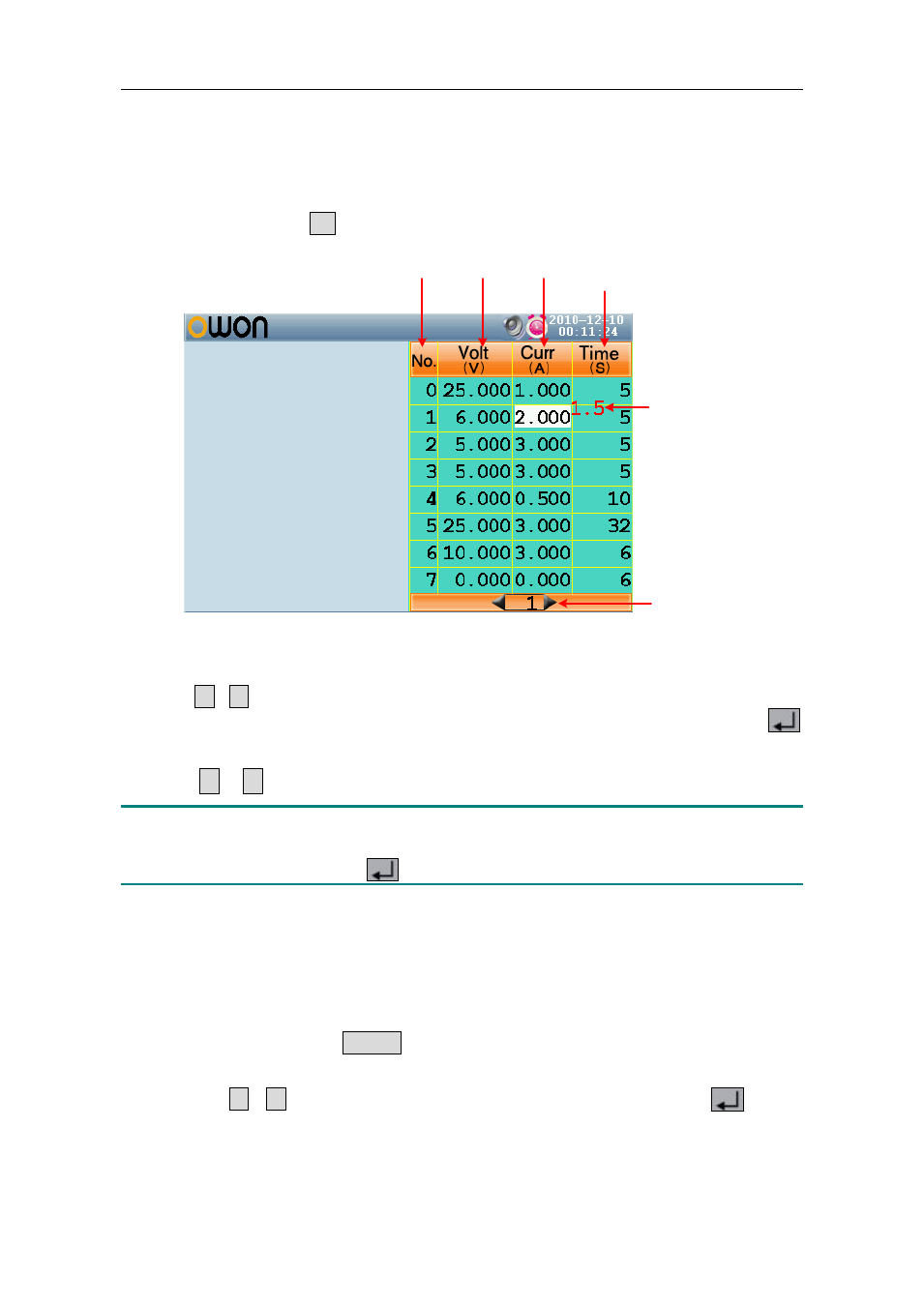

Figure 5-1 Timer Setting Interface
The selected parameter will be highlighted.
Press the
▲ / ▼ key to change the parameter item.
After selecting the parameter, use the numeric keys to enter a desired value, press the
key to confirm.
Press the ＜ / ＞ key to go to the previous or next setting page.
Note:
If the input value exceeds the rating, the system will change it to the maximum rating
automatically after pressing the
key to confirm.
5.4.3 Timer Range
Timer range setting denotes that you can set the last number of timer parameter group and
output mode. You can find out the TimerRng submenu of system menu only in timer
status. If turn on the timing output, the system will output the pre-set parameters between
0 and the set number at sequence or loop mode.
(1) In timer status, Press the System key, enter [TimerRng].
(2) The timer range setting box pops up. Use the numeric keys enter a number (0~99),
press the
▲ / ▼ key to switch between Sequence and Loop, press the
key to
confirm.
