www.desatech.com 113109-01D 19
OpTIONAL WIRELESS HAND-HELD
REMOTE CONTROL ACCESSORIES
(HRC100 and HRC200)
Installing Remote Receiver Unit
1. Disconnect switch wires from the con-
trol valve.
. Remove screws attaching switch plate.
3. Remove switch plate (see Figure 33).
Discard after removing.

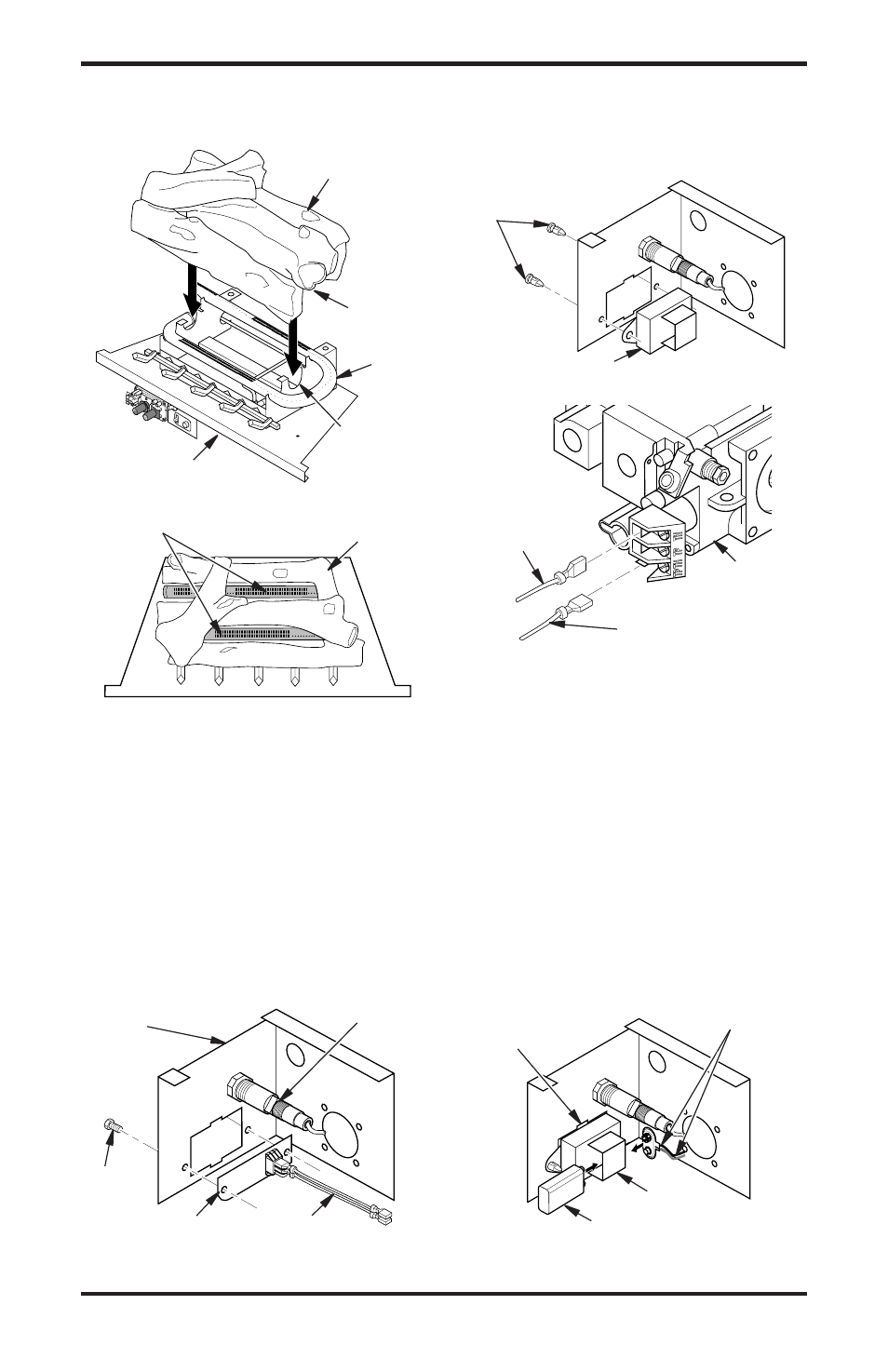

Figure 33 - Switch Plate and Wiring
Harness
Figure 34 - Installing Remote Receiver
Valve
White Wire
From Receiver
Screw
Switch Plate Wires
Remote
Switch
Bracket Ignitor
Remote Receiver
Mounting
Clips
Figure 35 - Connecting Wires
Red Wire From
Receiver
INSTALLATION
Continued
O F
F P ILO T O N
H I L O
Chassis
Burner
One Piece
Log Set
Middle
Section at
Bottom of
Log Set
"U" Shaped
Cutout In
Chassis
Figure 31 - Installing One Piece Log Set
Figure 32 - Installing One Piece Log Set,
Top View
One Piece
Log Set
Burner Ports
4. Install remote receiver unit onto gas log
heater base using mounting clips.
5. Push clips firmly into place (see Figure 34).
6. Connect wires as shown in Figure 35.
INSTALLING 9-VOLT BATTERIES
Two 9-volt batteries (not included) are re-
quired to operate this heater with the wireless
hand held remote control set. Install one bat-
tery in the receiver and one in the hand-held
remote control unit. Note: Only use alkaline
batteries.
Installing 9-Volt Battery in Receiver
1. Locate back of receiver under front burner
of heater.
. Locate the battery clip mounted on the
back of the receiver.
3. Slide a 9-volt battery through the clip.
4. Attach the terminal wires to the battery.
Figure 36 - Installing Battery in Remote
Receiver
Battery Clip
9-Volt Battery
Remote
Receiver Terminal Wires
