3-1-1 Input Power Cable Installation (continued)
INPUT TERMINAL
X 1
X 2
X 3
H 1
OUTPUT TERMINAL
H 2
H 3
GND
X 0
Customer furnished

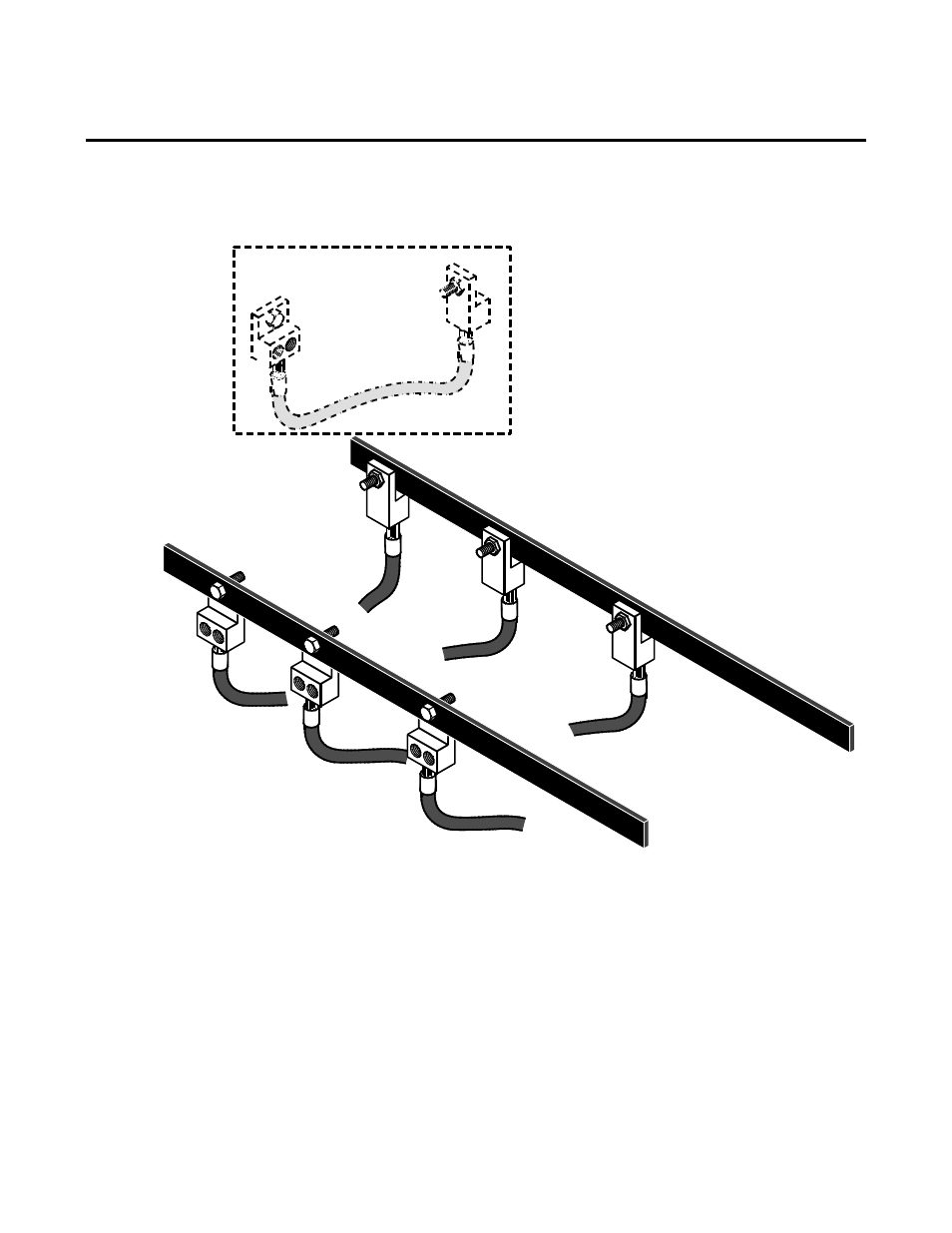

NRT INPUT & OUTPUT TERMINAL CONNECTION
ILLUSTRATION 3-3
