OnLine Power
6002-033
Rev
C
2-4
E
D
B
C
A
CONDUIT
CUT-OUT
(See "F" in Table)
Units
A
B
C
D
E
75, 100, 125,
AND 150 kVA
51.5"
40.5"
26.5"
37"
20.5"
15, 30, 50 kVA
40.5"
31.5"
22"
28"
17"
F
5" Dia
4" Dia

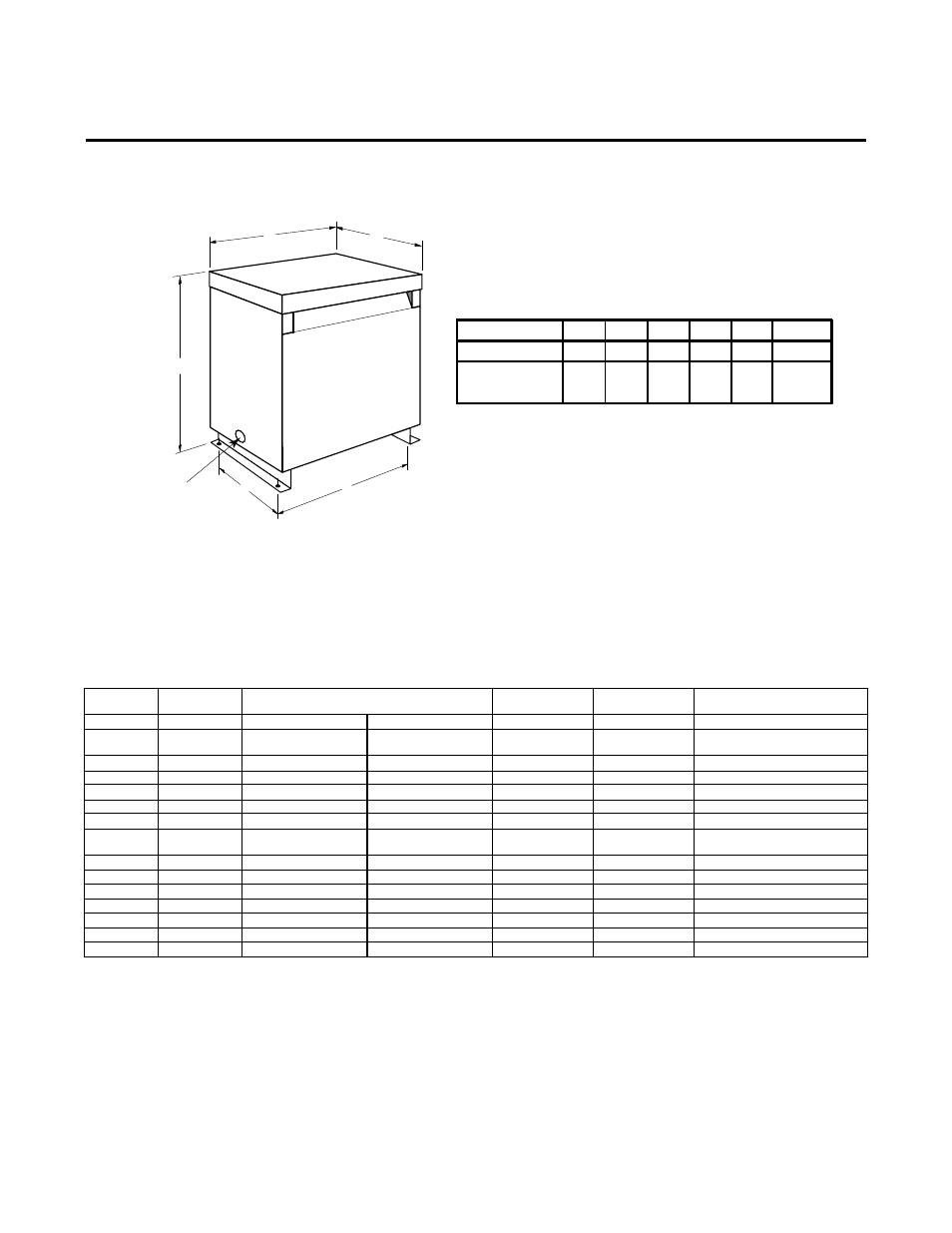

NRT DIMENSIONS
ILLUSTRATION 2-2
TABLE 2-2
NRT SPECIFICATION
kVA INPUT
VOLTAGE
MODEL NUMBER
WEIGHTS (LBS)
BTUs/HR
CABINET SIZES (H x W x D)
208Y/120 OUT
480Y/277
15
208
NR015B0500I3
NR015B0900I3
400
2040
40.5” x 31.5” x 22”
480 NR015H0500I3
NR015H0900I3
30 208
NR030B0500I3
NR030B0900I3 460
4080
480 NR030H0500I3
NR030H0900I3
50 208
NR050B0500I3
NR050B0900I3 550
6800
480 NR050H0500I3
NR050H0900I3
75
208
NR075B0500I3
NR075B0900I3
710
10200
51.5” x 40.5” x 26.5”
480 NR075H0500I3
NR075H0900I3
100 208 NR100B0500I3
NR100B0900I3 850
13600
480 NR100H0500I3
NR100H0900I3
125 208 NR125B0500I3
NR125B0900I3 940
17000
480 NR125H0500I3
NR125H0900I3
150 208 NR150B0500I3
NR150B0900I3 1050
20400
480 NR150H0500I3
NR150H0900I3
