6002-034 REV. C 4-3
4-1-3 Thermo Remote Emergency Power Off
Thermo remote emergency power off station with 50 feet of cable provides a two stage thermo temperature
monitor and a temperature shunt trip (if selected). The lower temperature monitor will cause an audible alarm.
Also a REPO button is provided. See Illustration 4-3 for the connection diagram.
-
+
1
2
3
1
2
14
12
ST
LOGIC
BOARD
P4
REPO
CONNECTOR
MAIN
CIRCUIT BREAKER RED RED
WHITE
WHITE
BLACK
BLACK
TB1
2 STAGE
THERMO REPO
CONSTANT POWER 6
JUMP 1 & 14

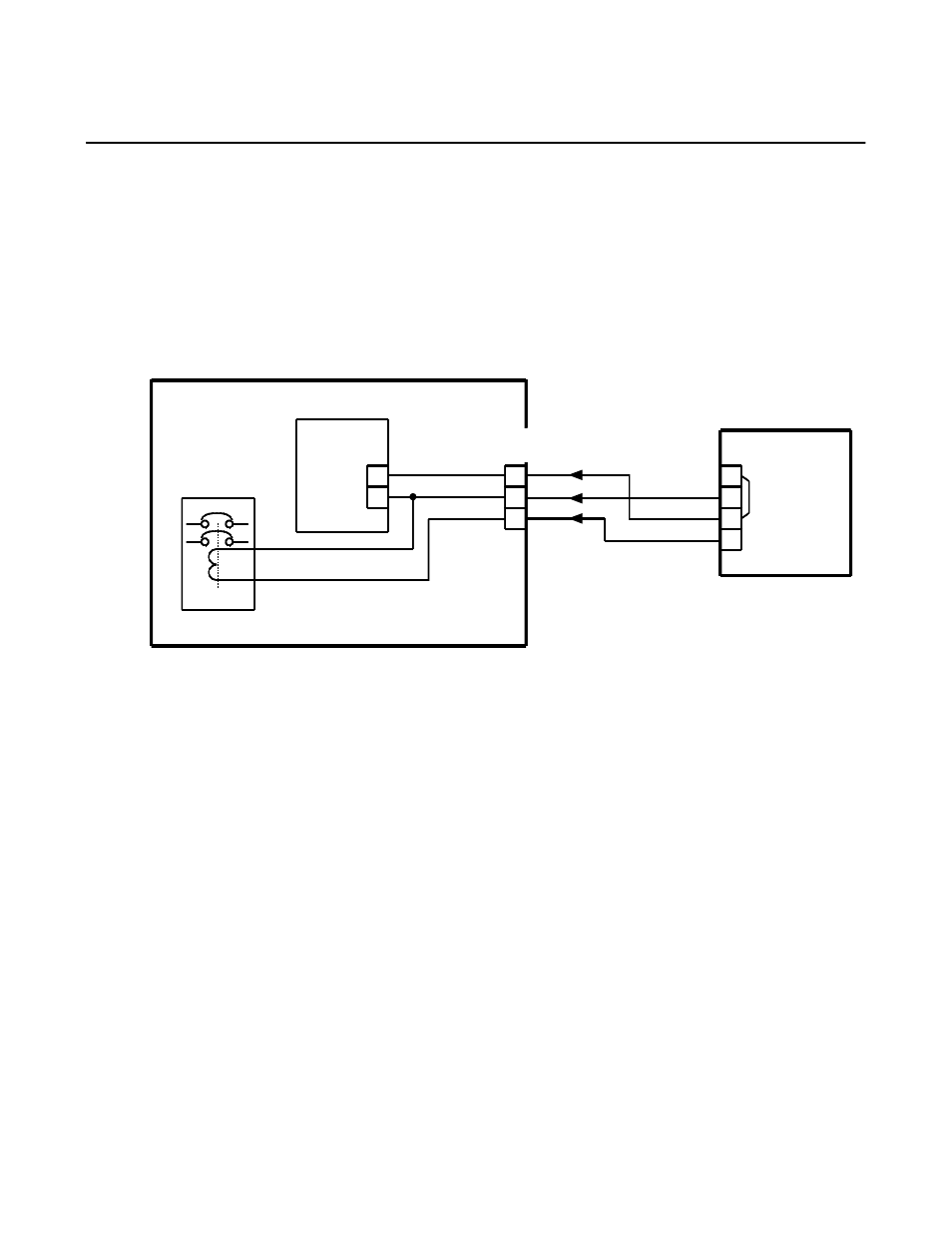

THERMO REPO STATION SCHEMATIC DIAGRAM
ILLUSTRATION 4-3
4-1-4 Manual Restart
Manual restart option is available for factory installation. If the input power fails, the IMCB will shunt-trip so the
CP6 will not be on when the power is restored. After power is restored press the RESET button, and push the
IMCB to OFF and then to ON to restore power to the CP6. See Illustration 4-4 for the wiring diagram.
