Specifications
2.1 General specifications
AC Power: PWR-AC-160W
AC power supply module 100-240VAC.
Redundant Power
(optional): PWR-AC-160W
Dimensions:
19’’ width 2RU height
Card slots: 20 for Flashlink modules, 1 allocated for a possible future
board
Power Supply slots 2.
Internal voltages:
Sync:
GPI: +5V, +15V, -15V.
Return loss; typical <14dB, 0-5MHz (dependent of the
quality of the termination at Power C5)
Open drain output from each power supply which turns low
ohmic in an alarm situation.
To withstand +10VDC (open) and 100mADC (at less than
50mOhm) (closed)
2.2 Front view
The front view of the frame shows status LEDs for the power supply modules.

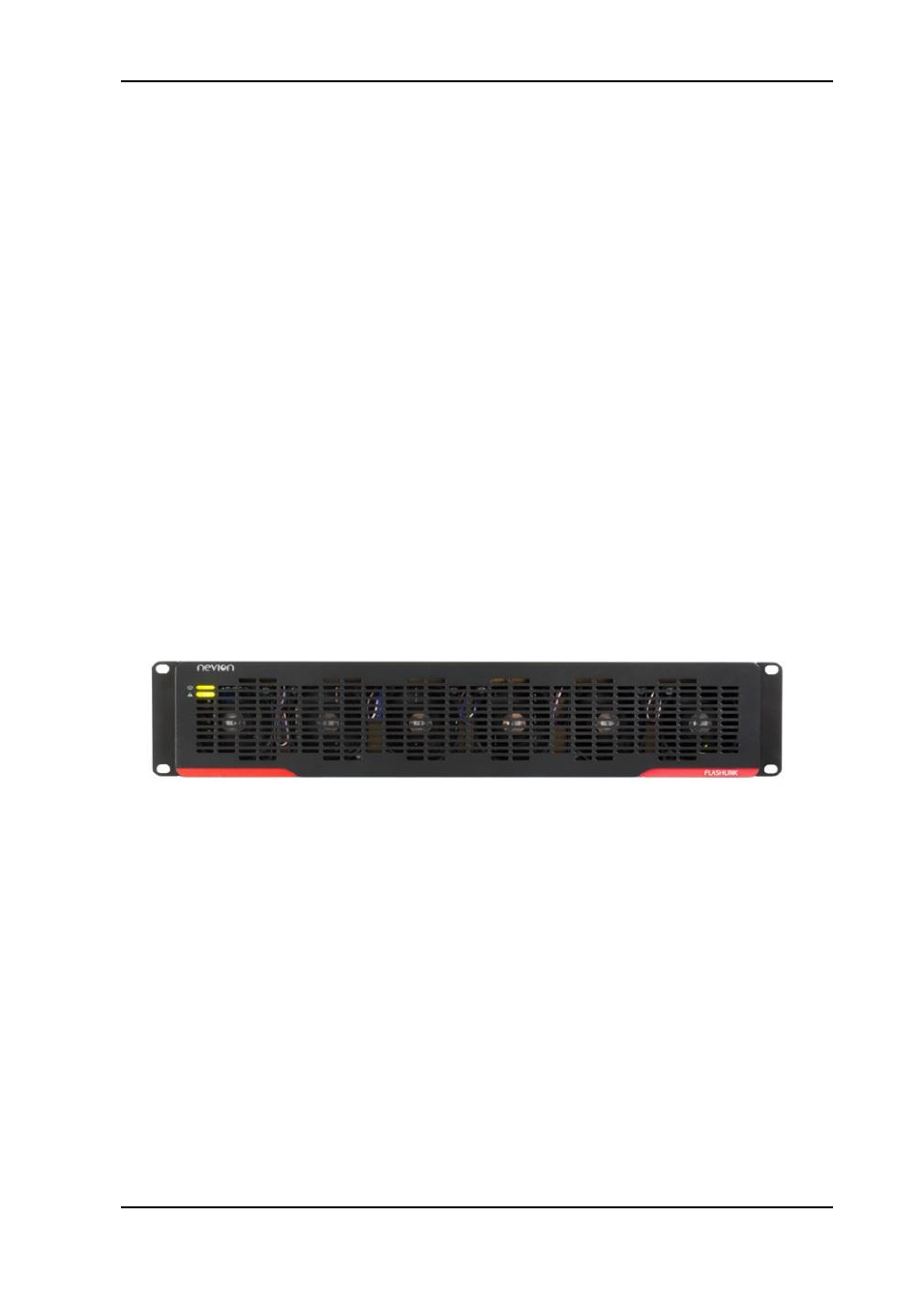

Figure 1:Front view of the Flashlink frame.
The two LEDs at the front have the following functions:
Upper LED: Voltage and current alarm, internal voltages
Lower LED: Fan and temperature alarm
