MovinCool Climate Pro 18 - Manual (Page 39)

39
OPERATION (cont.)
Emptying the Drain Tank
During COOL or HEAT mode, the condensate water accumulates in the dran tank.
When the drain tank becomes full, the LCD displays self-diagnostic code “FL” with
backlight in orange color and the unit turns off automatically.
Note: To empty the drain tank while the unit is in operation, press START/STOP
button to turn the unit off. If a program is running, stop program operation first (see
“Program Operation and Schedule” section).

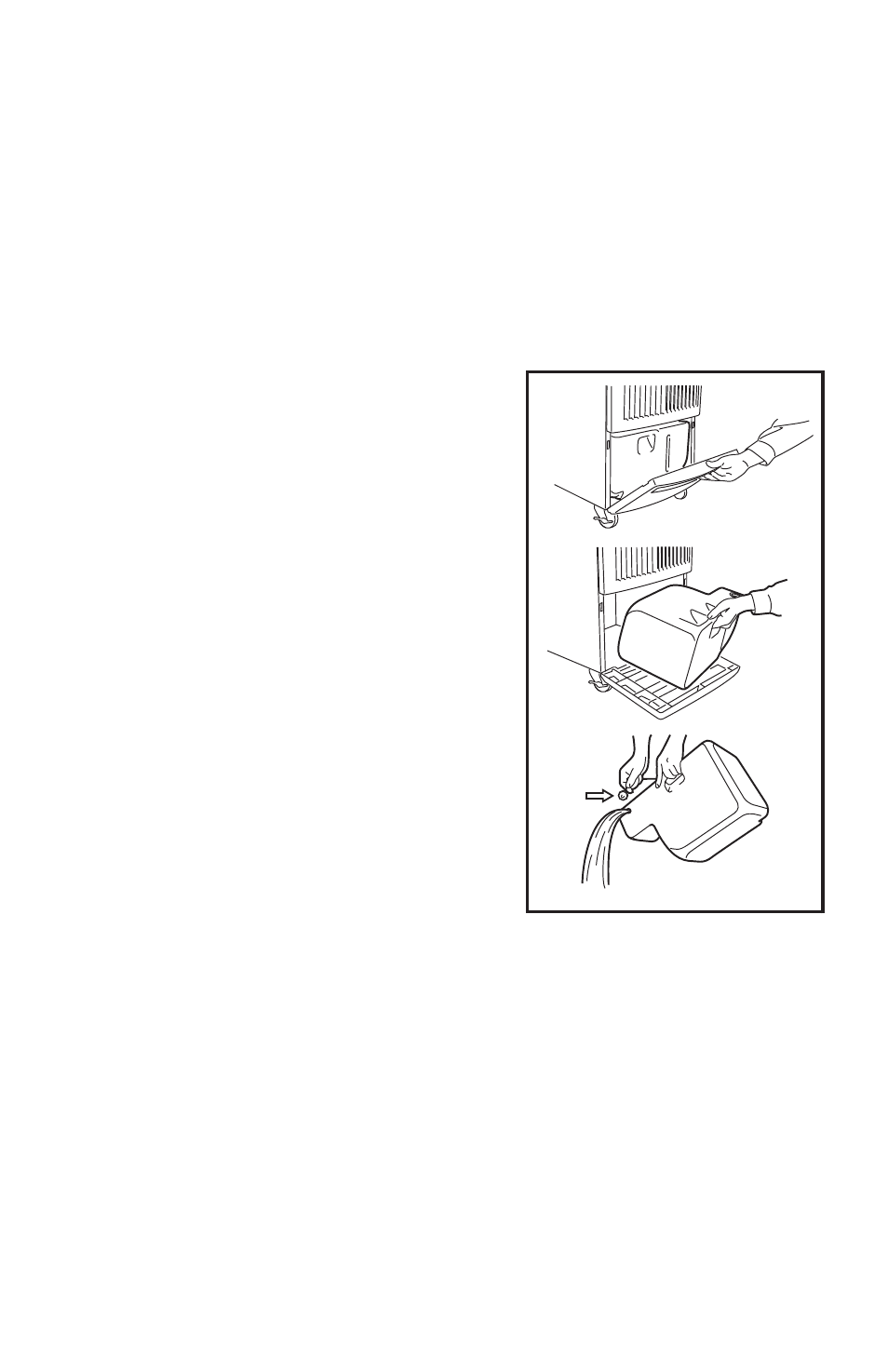

1. Open the drain tank door.
2. Pull the drain tank from the unit.
3. Remove the cap and empty the drain tank.
4. Replace the cap and return the drain tank to the unit.
5. Close the drain tank door.
6. Press START/STOP button to restart unit operation.
CAP
ILL00063-01
