INSTALLATION (cont.)
Fire Alarm Control Panel Connection
(Input Signal Terminal E+ and E-) (cont.)
Connecting Fire Alarm Control Panel to Controller

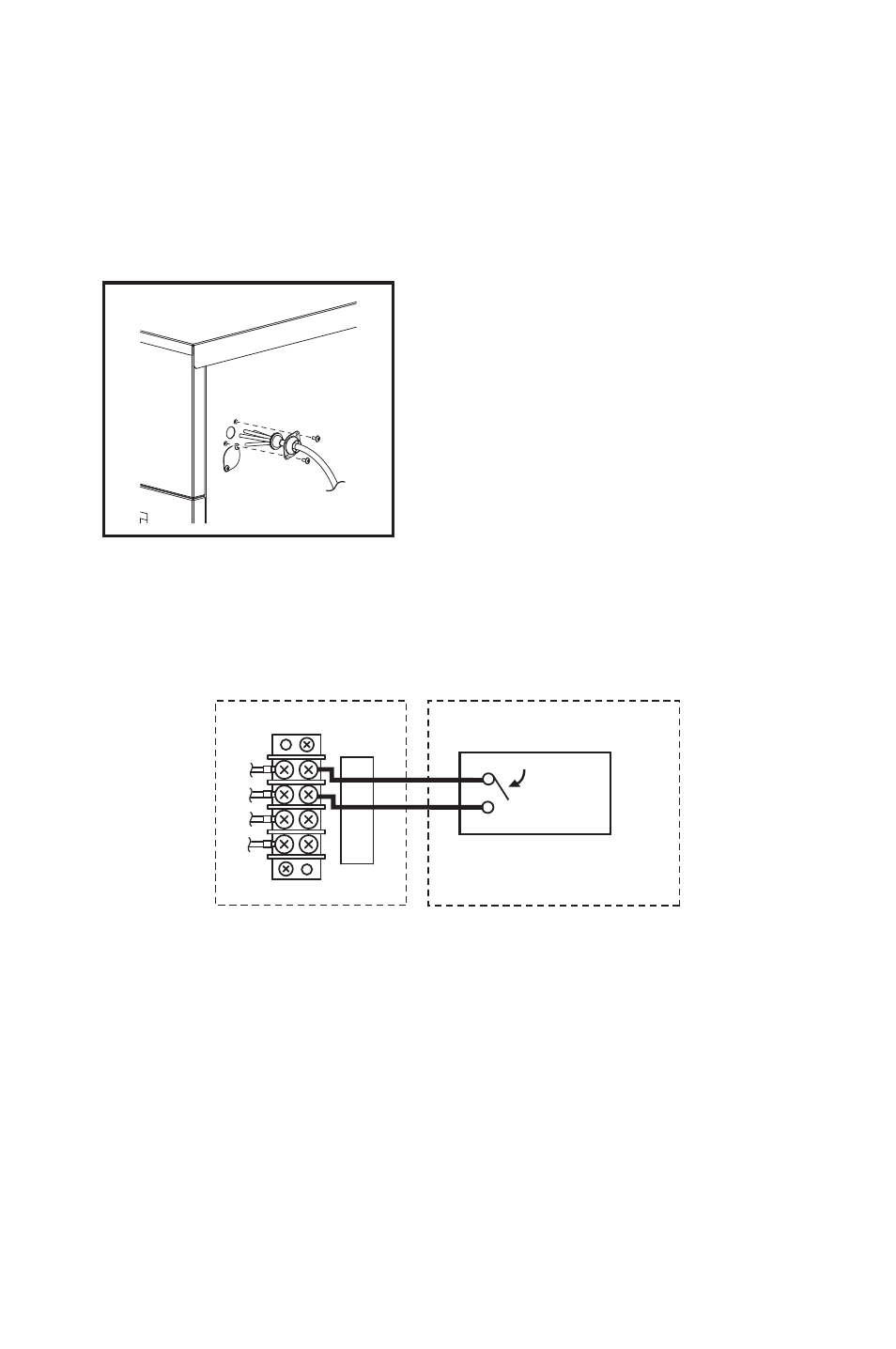

3. Insert the fire alarm signal wire through the clip, grommet, and hole in the right
side panel.
Note: Use recommended fire alarm signal wire size from 16 AWG to 26 AWG
for a solid wire, or 16 AWG to 22 AWG for a stranded wire with ring terminal
for #6 stud size.
4. Connect the fire alarm device to terminal E+ and E- according to its polarities.
UNIT TERMINAL
OUTPUT SIGNAL
FIRE ALARM DEVICE
E+
E-
L+
L-
OPEN DRY CONTACT
