Microscope Application Program http://www.ViTiny.com

The Windows can be chosen per USER‟s preferred window size. But it need depend on
User‟s PC to choose a suitable resolution as Fig.2-13. For example, your PC is 1280*960 pixels;

you can choose 1280*960. When the PC screen size is wide screen (16:9), it may cause

imbalance ratio at “Full Screen” mode. The user may choose “Full Screen (4:3)” for an equally

true ratio. When in “Video Resolution” mode, the window size is same as the output size.

Please refer to 1.2.2.

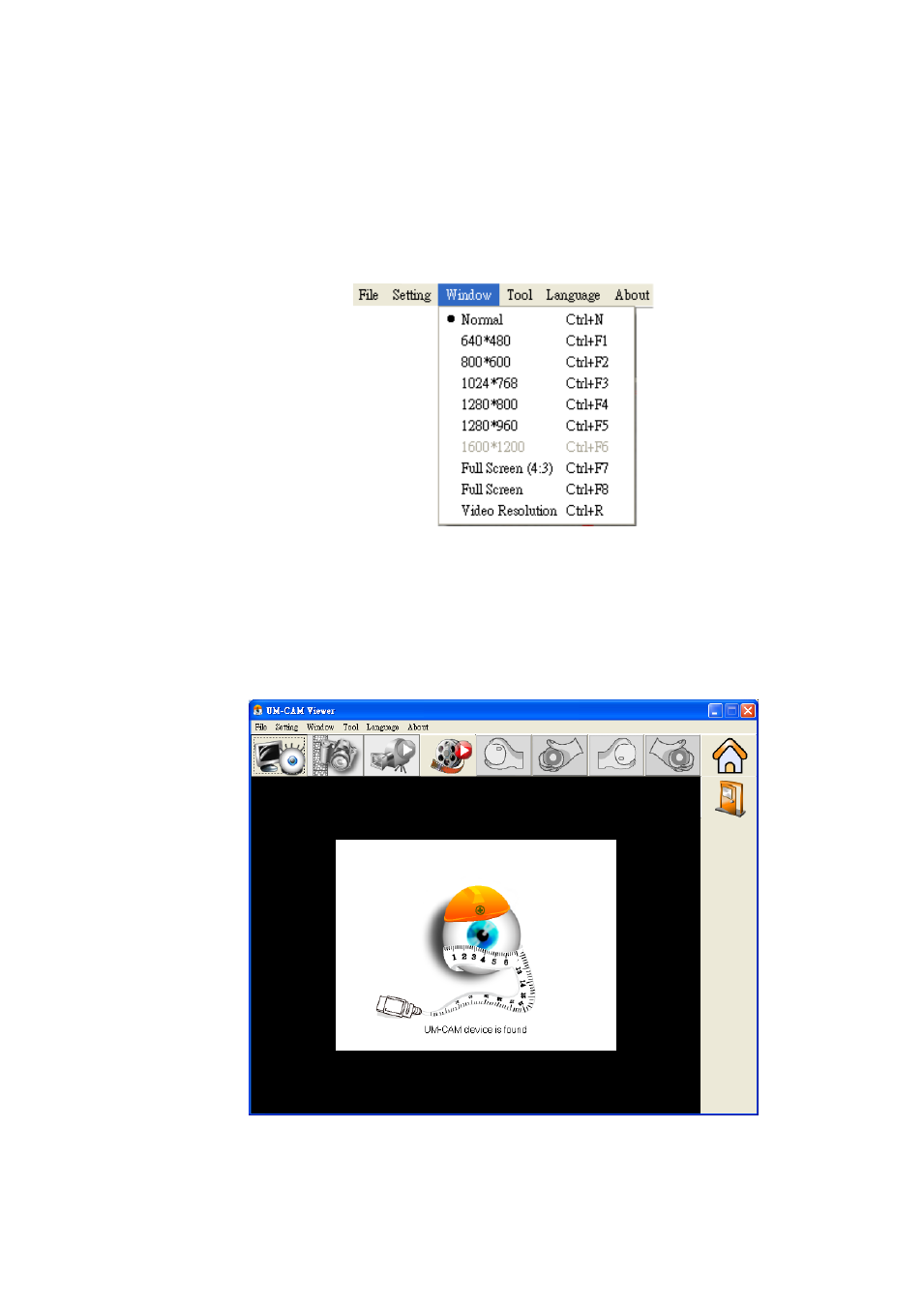

Fig.2-13 Optional window size

User can choose full screen under window mode. The original left sub-window in the AP will

become a single window, available tool bar of the connection (disconnection), snapshot, video

recording and video playing under the full screen.

Fig.2-14 Full screen of 640*480 under Window mode

If changing to single window and want to return to normal mode, please click “Normal Mode
