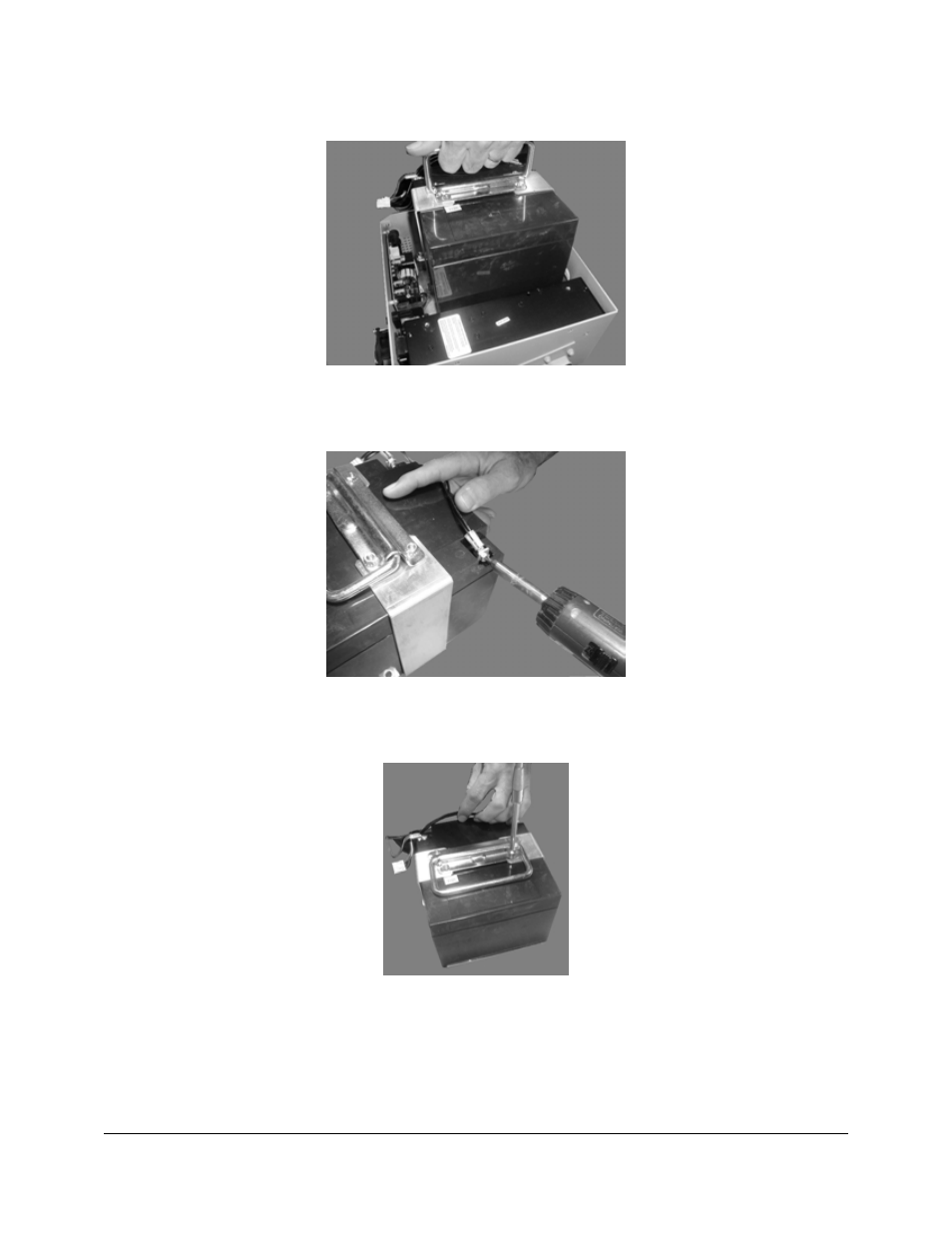

6. Lift the battery out of the MSLA Power Supply case.
Lift the SLA Battery Up and Out (Using handle - if attached)
7. Using the screwdriver and ¼" box wrench if necessary, remove the wiring harness from the
battery.
Disconnect the Harness from the SLA Battery Terminals
8. If the battery has a metal carrying handle, remove the four ¼" nuts on the top and remove
the battery from the carrying handle.
Remove Nuts to Remove Handle (if present)
9. Place the new battery in the carrying handle, and replace the four nuts removed in step 8
above.
10. Re-install the wiring harness on the new battery removed in step 7 above.
