NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
I) FUEL VALVE
( For RMC-KFA210T Model only)
- Remove side cover screws using medium phillips screwdriver (See page 13).
- Remove upper shell (See page 9).
- Remove fan (See page 10).
- Pull fuel line (lower and upper) off the fuel valve fittings (See figure 21).
- Disconnet red and orange wires from valve connector (See figure 21).
- Remove 2 screws holding fuel valve and bracket to lower shell Using medium
phillips screw driver (See figure 21).
- Remove 2 screws holding fuel valve to Bracket using medium phillps screw driver.(See figure 21).
- Attach new fuel valve to bracket with 2 screws.
- Install new fuel valve and bracket on lower shell with 2 screws.
- Connect red and orange wires (polarity not important) to valve connector (See figue 21).
- Connect upper and lower fuel lines to fuel valve (See figure 21).
- Replace fan, upper shell, side cover.

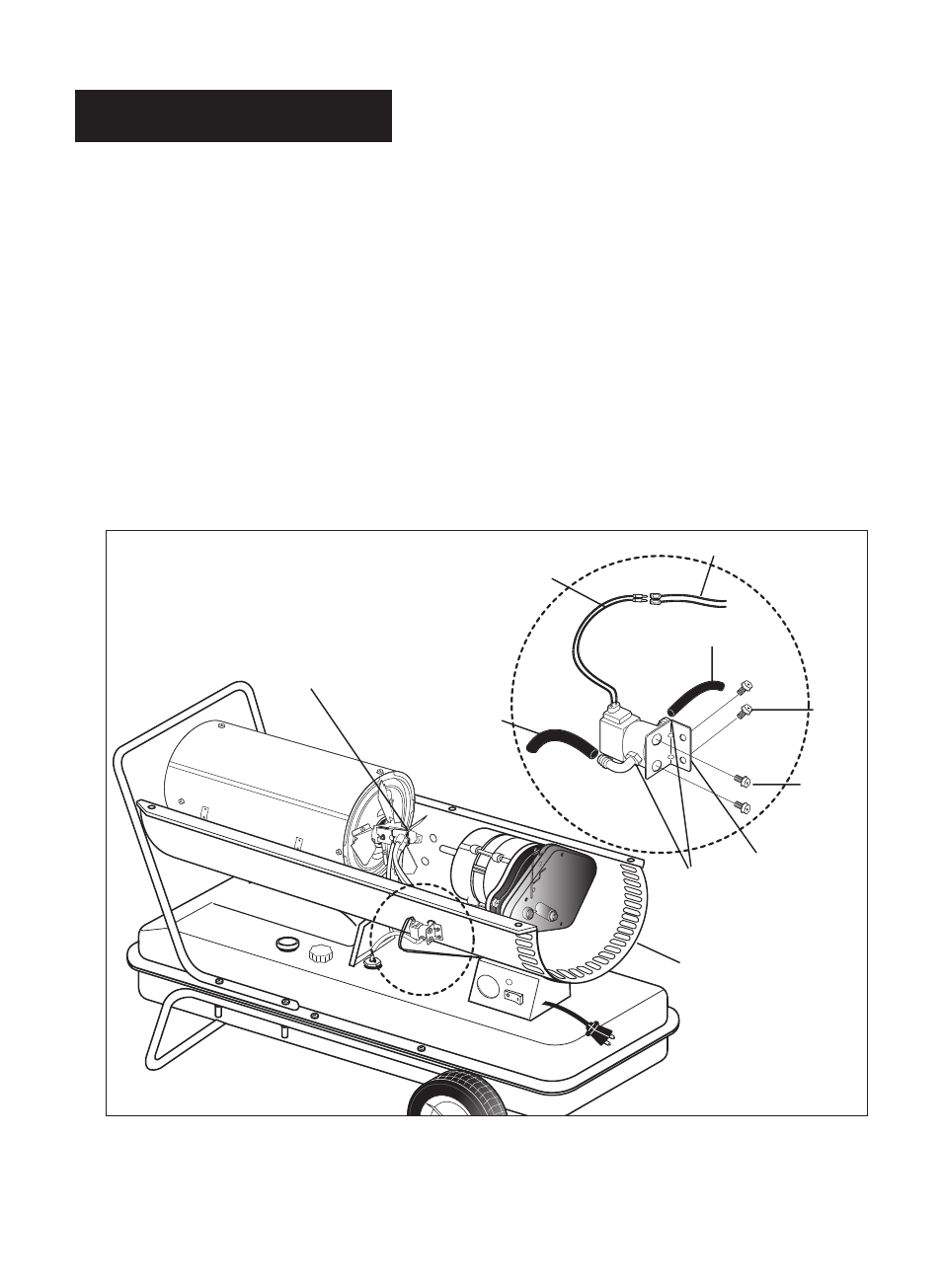

Figure 21.
Adaptor Nozzle
Fuel Line
Hose Upper
Screw
Screw
Bracket
Valve
Low shell
Valve
Fittings
Valve Connector
Electrical Wire
Fuel Line
Hose Lower
