Electrical characteristics curves – Delta Electronics NC15 Series User Manual
Page 6
NC12S15A_01102008
6

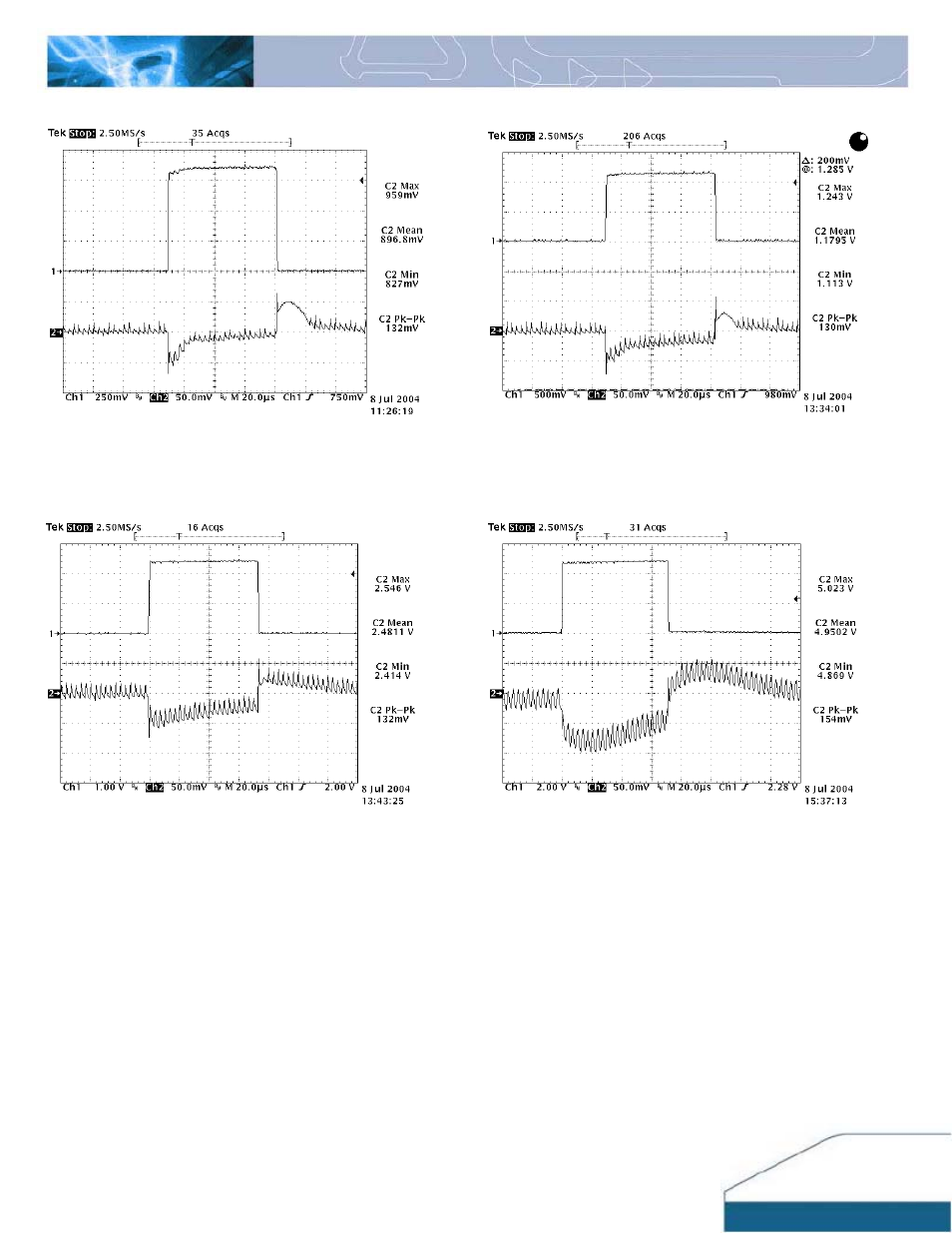

ELECTRICAL CHARACTERISTICS CURVES
Figure 19:
Typical transient response to step load change at
10A/μS from 50% to 75% and 75% to 50% of Io_max at
12Vin, 0.9V out
Figure 20:
Typical transient response to step load change at
10A/μS from 50% to 75% and 75% to 50% of Io_max at
12Vin, 1.2V out
Figure 21:
Typical transient response to step load change at
10A/μS from 50% to 75% and 75% to 50% of Io_max at
12Vin, 2.5V out
Figure 22:
Typical transient response to step load change at
10A/μS from 50% to 75% and 75% to 50% of Io_max at
12Vin, 5.0V out
