Electrical characteristics curves – Delta Electronics NC15 Series User Manual
Page 4
NC12S15A_01102008
4

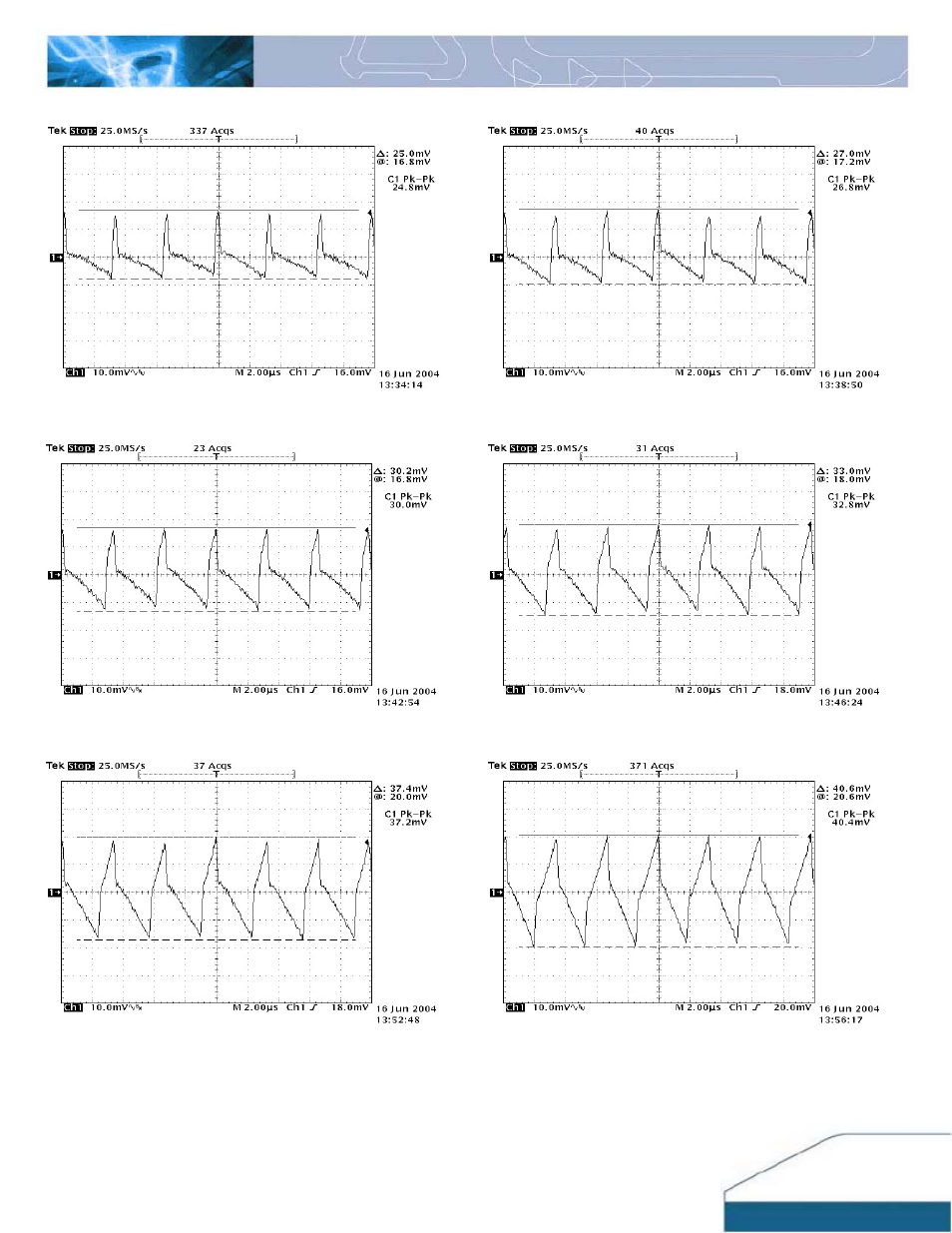

ELECTRICAL CHARACTERISTICS CURVES
Figure 7:
Output ripple & noise at 12Vin, 0.9V/15A out
Figure 8:
Output ripple & noise at 12Vin, 1.2V/15A out
Figure 9:
Output ripple & noise at 12Vin, 1.8V/15A out
Figure 10:
Output ripple & noise at 12Vin, 2.5V/15A out
Figure 11:
Output ripple & noise at 12Vin, 3.3V/15A out
Figure 12:
Output ripple & noise at 12Vin, 5.0V/15A out
