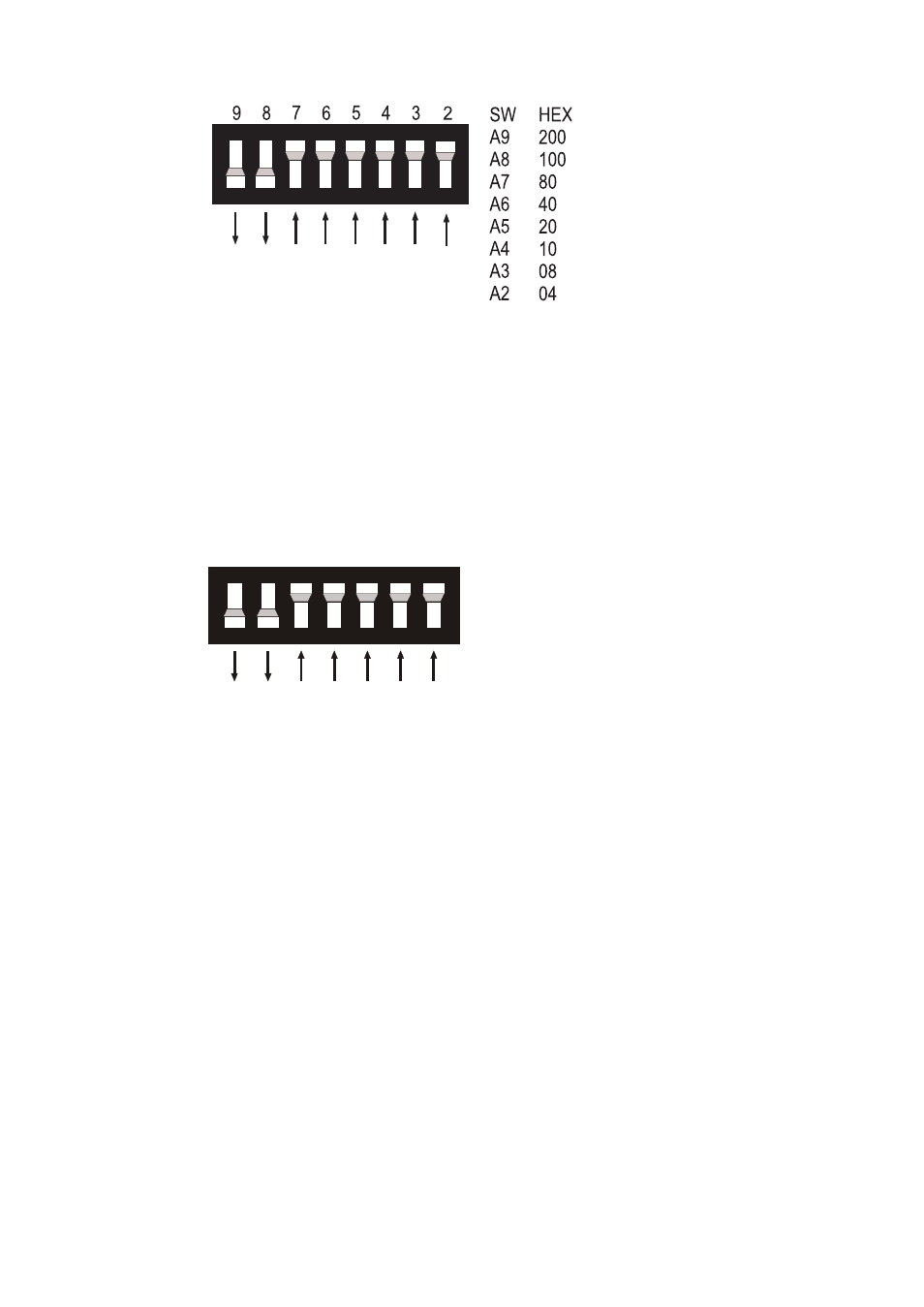

Figure 3-1. CIO-DO24DD Address Select Switches
NOTE
DISREGARD THE NUMBERS PRINTED ON T HE SWITCH.
REFER TO THE NUMBERS PRINTED IN W HITE ON T HE
BOARD!
Figure 3-2. CIO-DO48DD Address Select Switches
Certain addresses are u sed by the PC, others are free and can be u sed by the
CIO-DO24DD and other expansion boards. R efer to Table 3-1 for PC register
addressing. We recommend BASE = 300h (768 decimal) be tried first.
3
S W
A 9
A 8
A 7
A 6
A 5
A 4
A 3 H E X
2 0 0
1 0 0
8 0
4 0
2 0
1 0
0 8 9 8 7 6 5 4 3
BASE ADDRESS SW ITCH
- A d d re s s 3 0 0 H s h o w n h e re
