MMP4(T2)-OPS-1
4 Oct 2011
SECTION 3
System Operation
3-5

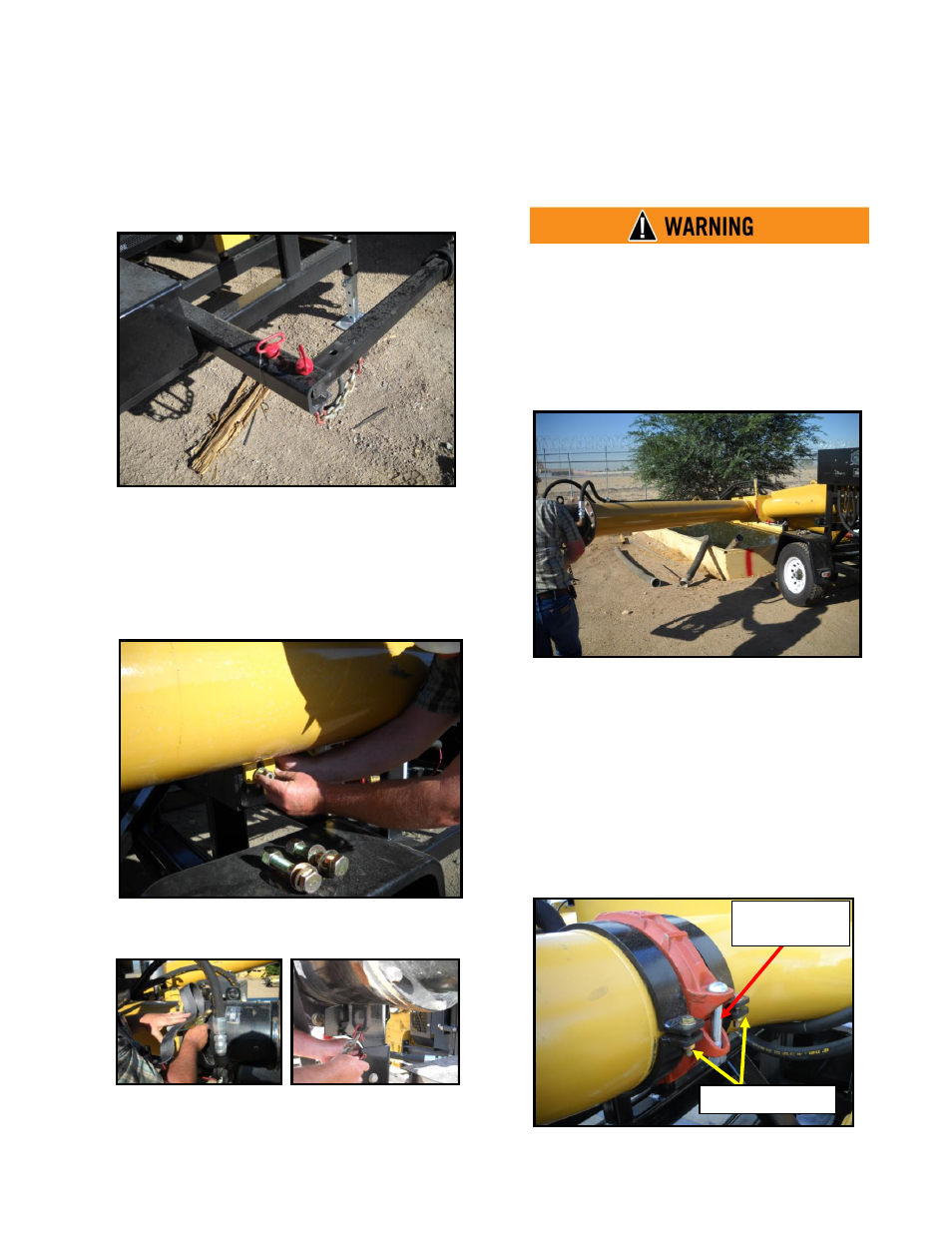

21. Insert the second shear pin into the empty
hole on the frame assembly and install both
safety pins.
22. Ensure the safety chain on the inlet boom
cylinder is tight and the shear pin is fully
seated and the safety pin is in place.
23. Remove the retaining bolt from the travel
lock on the inlet boom.
24. Remove the safety strap and the safety
chain from the water pump.
25. Locate and secure the 2 flange bolt
assemblies.
26. Stand behind water pump and guide the
inlet boom to full extension.
Use caution when extending the inlet boom.
Never stand in front of the water pump
when extending boom. Standing in front of
the inlet boom when extending may cause
the operator to lose their balance and be
impacted by the boom when it swings this
can cause serious personal injury or death.
27. When the inlet boom is fully extended
insert and secure the 2 flange bolt
assemblies.
28. Tighten the bolts until the flanges are
parallel.
29. Loosen the Victaulic coupling 1 to 2 turns
and loosen the pipe mounts to allow the
booms to pivot.
Pipe Mount Bolts
Victaulic
Coupling Bolt
