Speaker connection

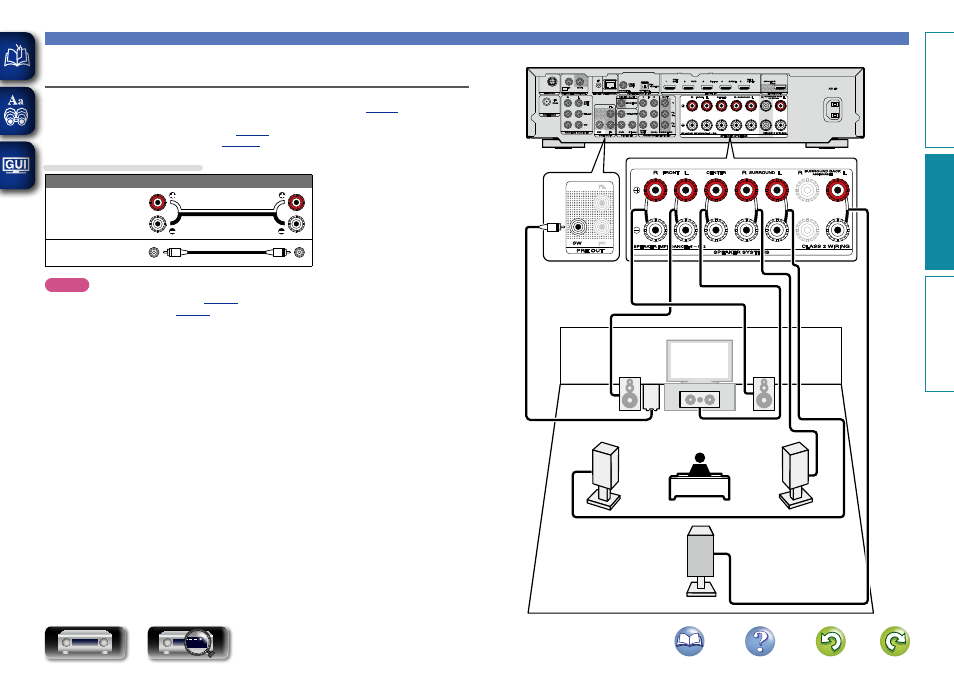

Connecting 6.1-channel speakers using one surround back
speaker
If using only one surround back speaker, connect to the “L” side of the SURROUND BACK terminal.
For speaker settings in this case, see “When 6.1ch speakers are installed” (
vpage 75 ).
To perform 6.1-channel playback using the surround back speaker, set “Assign Mode” to “Surround Back”
in steps 3 to 5 for “Set up “Amp Assign”” (
vpage 85 ).
Also use the “Speaker Config.” setting ( vpage 119 ) to set “Surr. Back” to “1spkr”.
Cables used for connections
Audio cable (sold separately)
Speaker
cable
Subwoofer
cable
NOTE
• For speaker cable connections, see page 76 .
• For speaker impedance , see page 76 .
FL FR
C
SL SR
SW
SB
