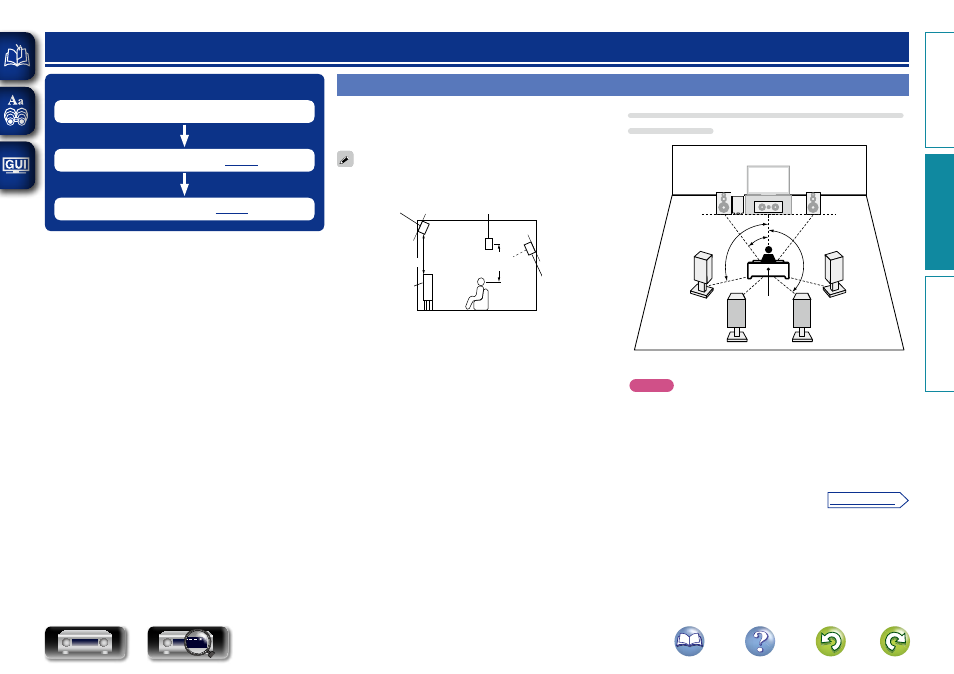

74
Procedure for speaker settings
Speaker installation
Speaker connection ( vpage 76 )
Set up speakers ( vpage 85 )
Speaker installation
• Determine the speaker system depending on the number of speakers
you are using and install each speaker and subwoofer in the room.
Here, we explain how to install the speakers using a typical example.
• The speaker impedance should be from 6 to 8 Ω.
Use the illustration below as a guide for how high each speaker should
be installed. The height does not need to be exactly the same.
z
Surround
speaker
2 – 3 ft /
60 – 90 cm
GViewed from the sideH
Front height
speaker
• Point slightly
downwards
At least
3.3 ft / 1 m
Surround back
speaker
• Point slightly
downwards
Front
speaker
z Recommended for Dolby Pro Logic gz
When 7.1ch speakers are installed using surround
back speakers
FL FR
C
SBL SBR
SL SR
SW
z 1
z 2
z 3
Listening
position
z1 22˚ – 30˚ z2 90˚ – 110˚ z3 135˚ – 150˚
NOTE
You cannot have audio output from the surround back speakers and
front height speakers simultaneously.
GSpeaker abbreviationsH
FL Front speaker (L) SL Surround speaker (L)
FR Front speaker (R) SR Surround speaker (R)
C Center speaker SBL Surround back speaker (L)
SW Subwoofer SBR Surround back speaker (R)
Installation/connection/setup of speakers (Advanced)
Basic v
ersion
A
dv
anced v
ersion
Inf
or
mations
A
dv
anced v
ersion
v See overleaf
