134

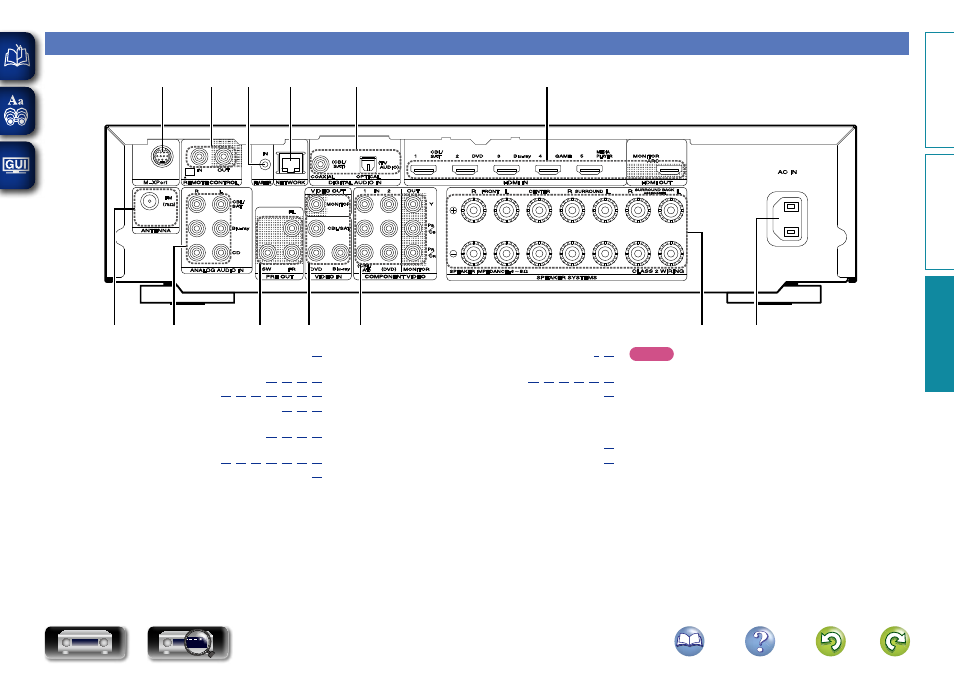

Rear panel
See the page indicated in parentheses ( ).
Q2
q w e r t y u
o Q1 Q0 Q3 i
q FM antenna terminal (ANTENNA) ········································· ( 20 )
w Analog audio connectors
(ANALOG AUDIO IN) ············································· ( 14 , 15 , 16 , 19 )
e PRE OUT connectors ··························· ( 77 , 78 , 79 , 80 , 81 , 82 , 83 )
r Video connectors (VIDEO IN / VIDEO OUT)·············· ( 13 , 14 , 15 )
t Component video connectors
(COMPONENT VIDEO) ·········································· ( 14 , 15 , 16 , 17 )
y Speaker terminals (SPEAKER SYSTEMS)
······························································ ( 77 , 78 , 79 , 80 , 81 , 82 , 83 )
u AC inlet (AC IN) ········································································ ( 23 )
i HDMI connectors ································································· ( 9 , 10 )
o Digital audio connectors
(DIGITAL AUDIO IN) ·································· ( 13 , 14 , 15 , 16 , 17 , 19 )
Q0 Network connector (NETWORK) ··········································· ( 22 )
Q1 FLASHER IN jack
Used when using a control BOX or other such control devices to
control this unit.
Q2 REMOTE CONTROL connectors ············································· ( 87 )
Q3 M-XPort connector ·································································· ( 21 )
NOTE
Do not touch the inner pins of the connectors on the rear panel.
Electrostatic discharge may cause permanent damage to the unit.
