Speaker connection
Connecting 7.1-channel speakers using surround back speakers

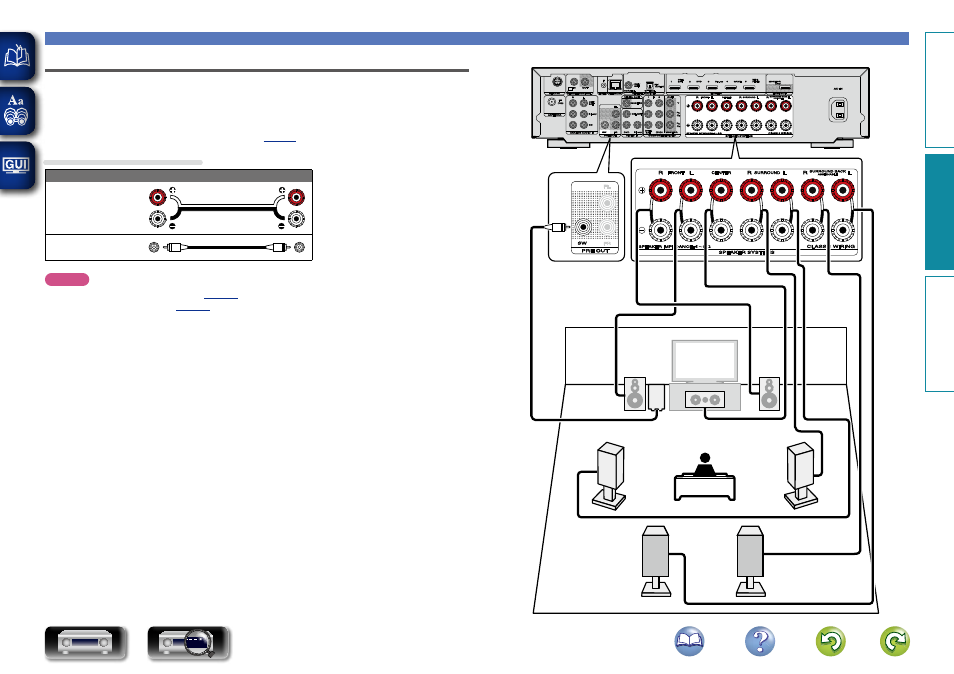

The illustration on the right shows a connection example for performing 7.1-channel playback using the
surround back speakers.
If you connect the surround back and front height speakers before you start playback, the audio is played
back by automatically switching the speakers in accordance with the sound mode or input signals.
To perform 7.1-channel playback using the surround back speakers, set “Assign Mode” to “Surround
Back” in steps 3 to 5 for “Set up “Amp Assign”” (
vpage 85 ).
Cables used for connections
Audio cable (sold separately)
Speaker
cable
Subwoofer
cable
NOTE
• For speaker cable connections, see page 76 .
• For speaker impedance , see page 76 .
FL FR
C
SL SR
SW
SBL SBR
