CARE AND MAINTENANCE

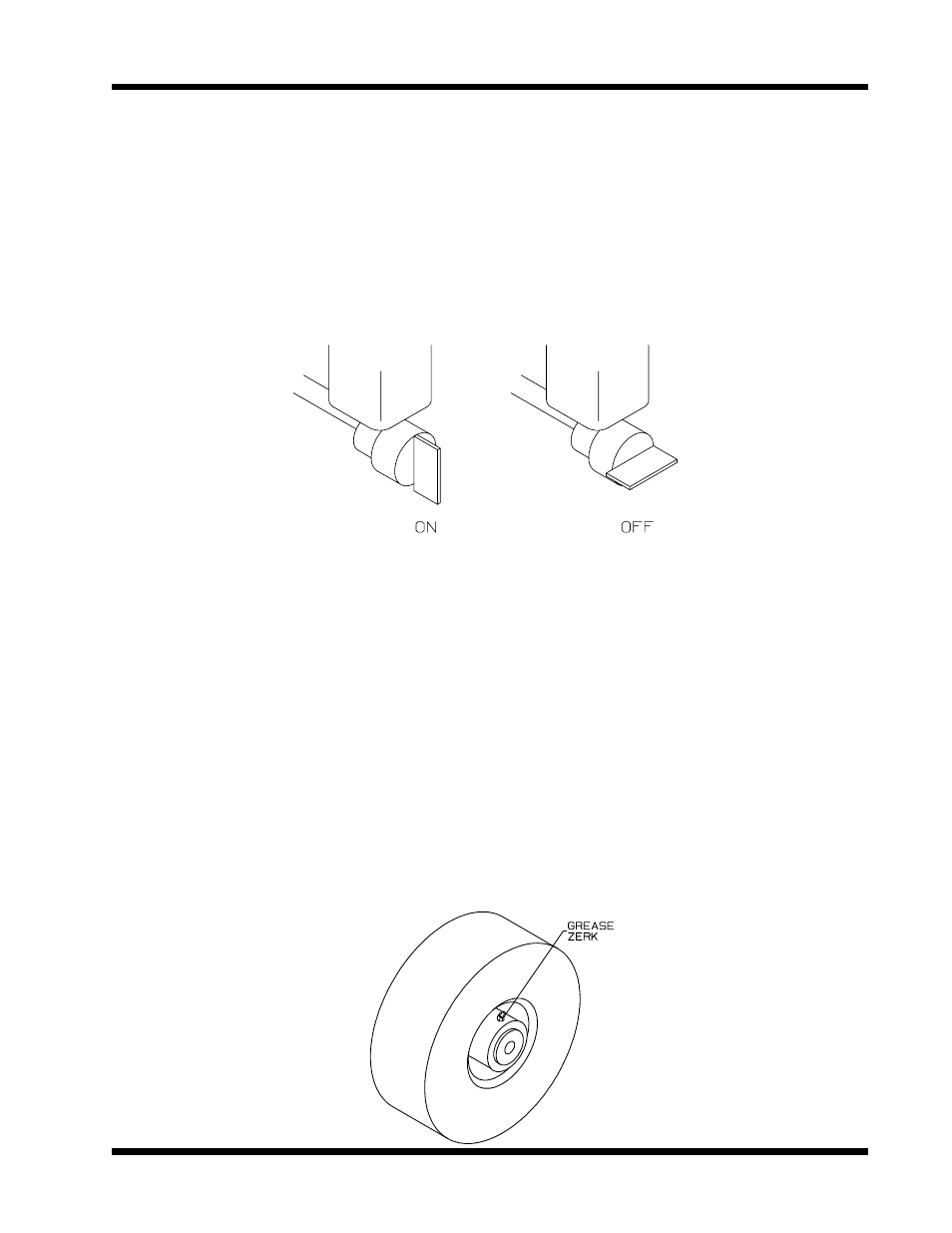

FUEL SHUT OFF VALVE:
The fuel shut off valve is located at the bottom rear of the fuel tank.
Always turn the valve to the "OFF" position when the mower is stored or not in use.
LUBRICATION:
CHASSIS:
Number of grease zerks used: (5) for 30"
(6) for 36"
(7) for 42"
LOCATIONS:
(1) each front wheel caster and each front wheel hub.
(1) each mower deck hub
SERVICE INTERVALS:
Every 50 hours of operation
RECOMMENDED GREASE:
Name brand wheel bearing or multi-purpose grease
Lubricate each front wheel to allow even distribution of grease
within the wheel, rotate or spin each front wheel after (3) pumps of
the grease gun. Repeat process until the appearance of grease is noted
completely around each caster axle.
