Delta 36-714 - Manual (Page 17)

17

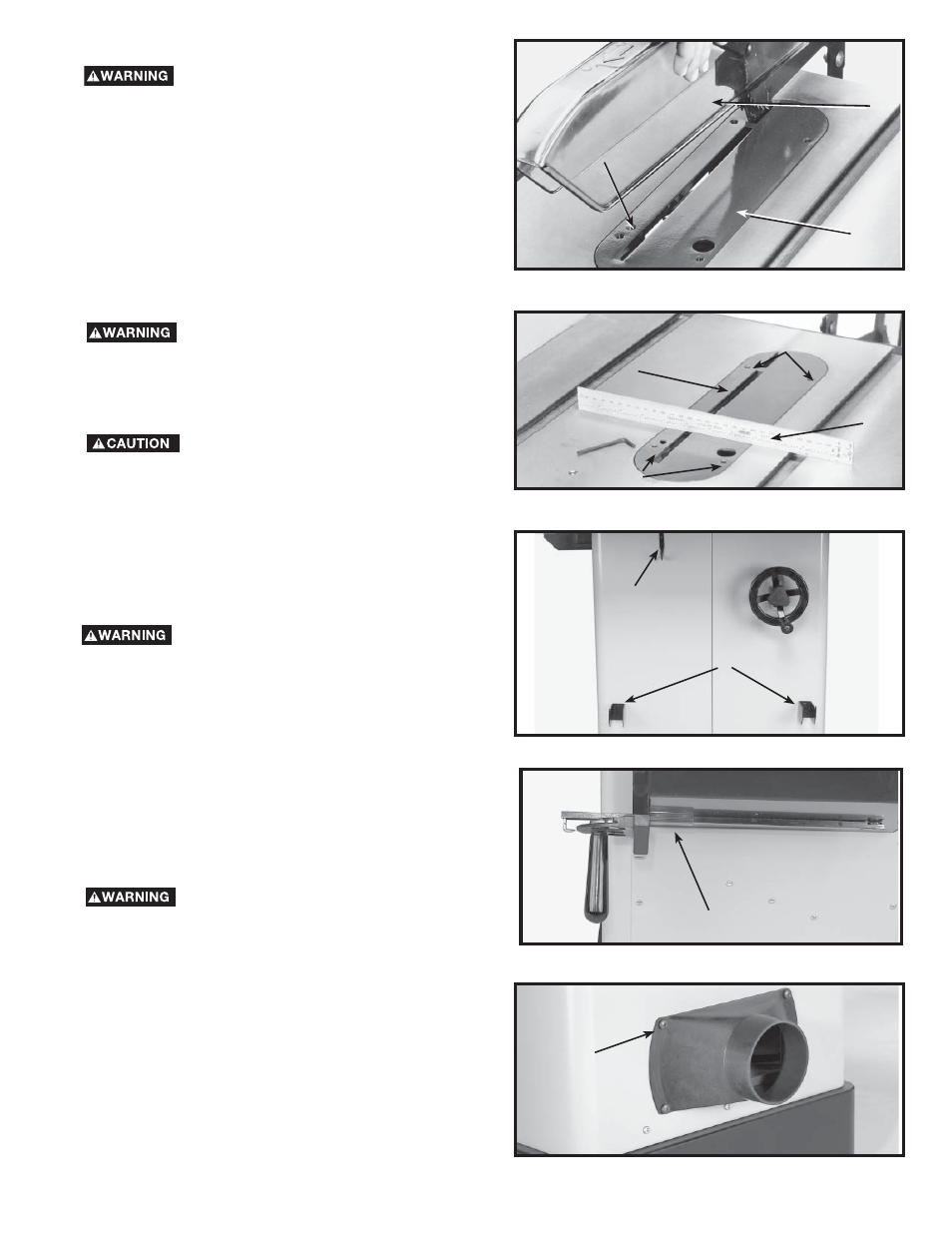

Fig. 26
L
P
INSTALLING TABLE INSERT
Disconnect machine from power source.
Lower saw blade and install table insert (P) Fig. 26, in
the saw table. IMPORTANT: When installing the table
insert, make certain to hold on to the blade guard (L).
The insert will automatically release the holding action on
the splitter and lower the blade guard when the insert is
installed in the table opening.
Insert M5x20mm screw into hole (M) Fig. 26 and
tighten.
INSTALLING TOOL HOLDERS
Disconnect machine from power source.
Install fence holders (A) Fig. 27 using four self-tapping
screws (4).
Install wrench hook (B) using two self-tapping screws.
Install miter gage holder (C) Fig. 28 underneath the motor
cover on the right side of the saw using four self-tapping
screws.
Fig. 27
Fig. 28
Fig. 29
INSTALLING DUST PORT
Disconnect machine from power source.
Attach dust port (D) Fig. 29 using four self-tapping
screws.
A
B
C
D
ADJUSTING TABLE INSERT
Disconnect machine from power source.
Place a straight edge (B) Fig. 26A across the table at both
ends of the table insert (A) as shown in Fig. 26A.
THE TABLE INSERT (A) SHOULD
ALWAYS BE LEVEL WITH THE TABLE.
If an adjustment is necessary, loosen screw (M) Fig. 26
and turn the adjusting screws (C) Fig. 26A, as needed,
with allen wrench supplied.
Fig. 26A
C
B
C
A
M
