Installation 19

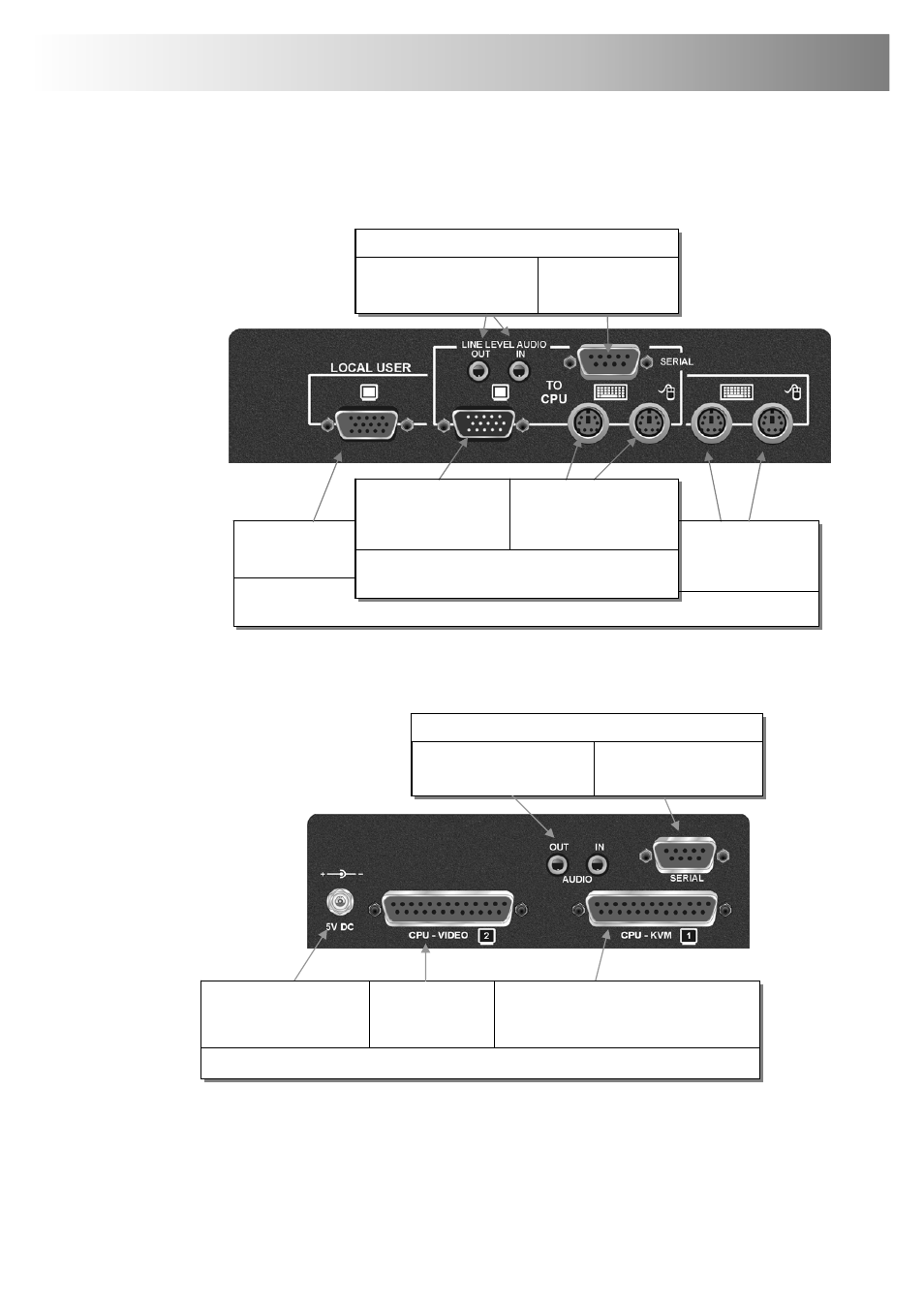

Figure 6 SDBX Local Unit (Single Video) - rear view
Figure 7 SDBX Local Unit (Dual Video) - rear view
Connect to
Local monitor.
Connect to audio ports
on computer. Connect to serial
port on computer.
SDBX/DA1 and SDBX/SA1 only
SDBX/D1, SDBX/DA1 only
Connect to
computer’s video
output. Connect to computer’s
PS/2 keyboard and
mouse ports.
SDBX/S1, SDBX/SA1,
SDBX/D1, SDBX/DA1
Connect to Local
PS/2 keyboard
and mouse.
Connect to audio ports
on computer. Connect to serial port
on computer.
SDBX/SA2 only
Connect to
secondary video
output. Connect to computer’s primary video,
PS/2 keyboard and mouse ports using
supplied cable. Optional connection for
5V PSU (not supplied).
SDBX/S2 and SDBX/SA2
