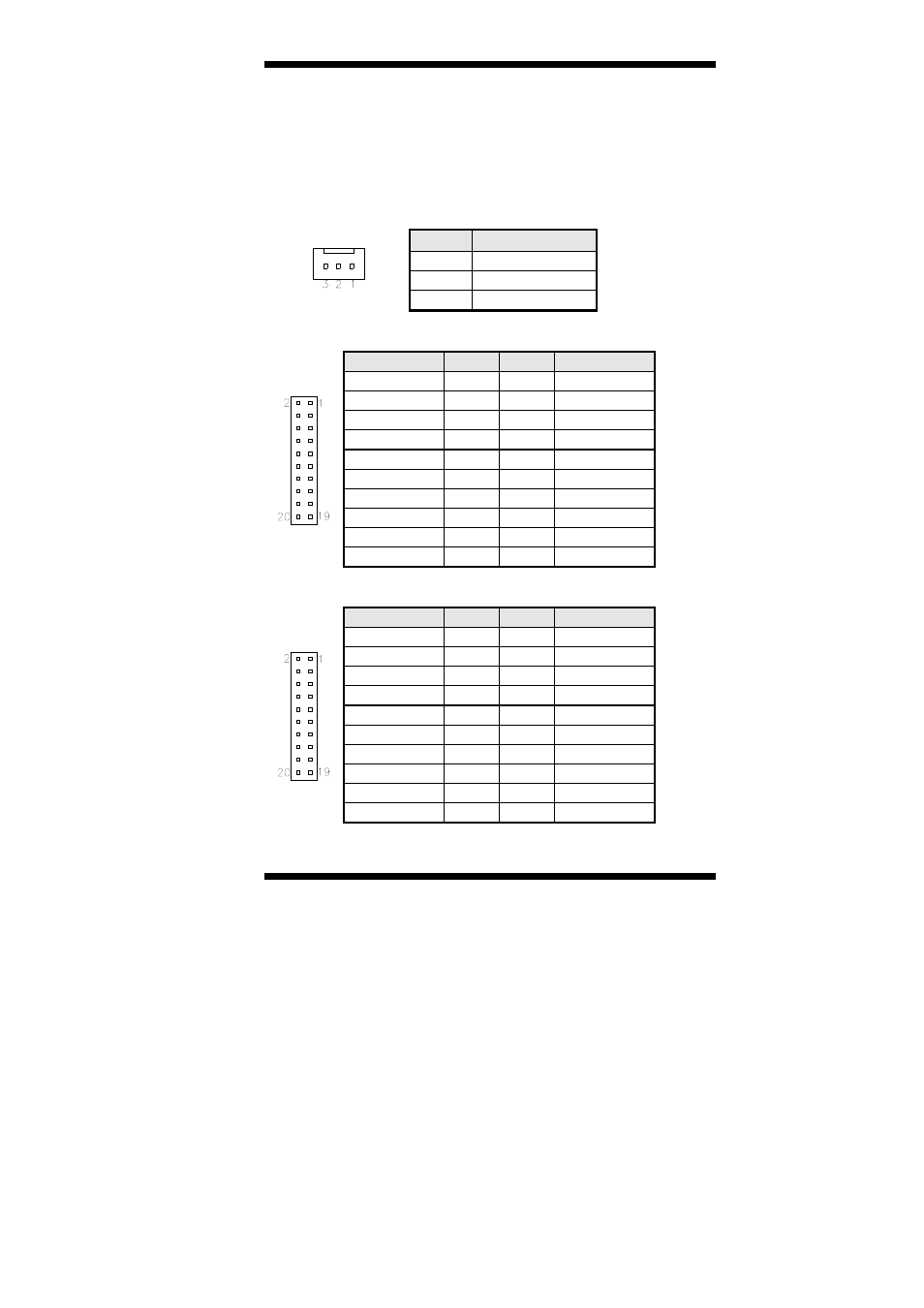

IBD185 Connectors Pin Definition
J1
,
J2 for I2C
Pin #
Signal Name
1
SCL
2
SDA
3
GND
J3 Supports 16-in GPIO
Signal Name
Pin #
Pin #
Signal Name
3.3V 2
1 3.3V
DIN8 4
3 DIN0
DIN9 6
5 DIN1
DIN10 8 7 DIN2
DIN11 10 9 DIN3
DIN12 12
11 DIN4
DIN13 14
13 DIN5
DIN14 16
15 DIN6
DIN15 18
17 DIN7
Ground 20 19 Ground
J4 Supports 16-out GPIO
Signal Name
Pin #
Pin #
Signal Name
3.3V 2
1 3.3V
OUTPUT24
4 3
OUTPUT16
OUTPUT25
6 5
OUTPUT17
OUTPUT26
8 7
OUTPUT18
OUTPUT27
10 9
OUTPUT19
OUTPUT28
12 11
OUTPUT20
OUTPUT29
14 13
OUTPUT21
OUTPUT30
16 15
OUTPUT22
OUTPUT31
18 17
OUTPUT23
Ground 20 19 Ground
