www.desatech.com 108661-01F 1
FIREPLACE INSTALLATION
Continued

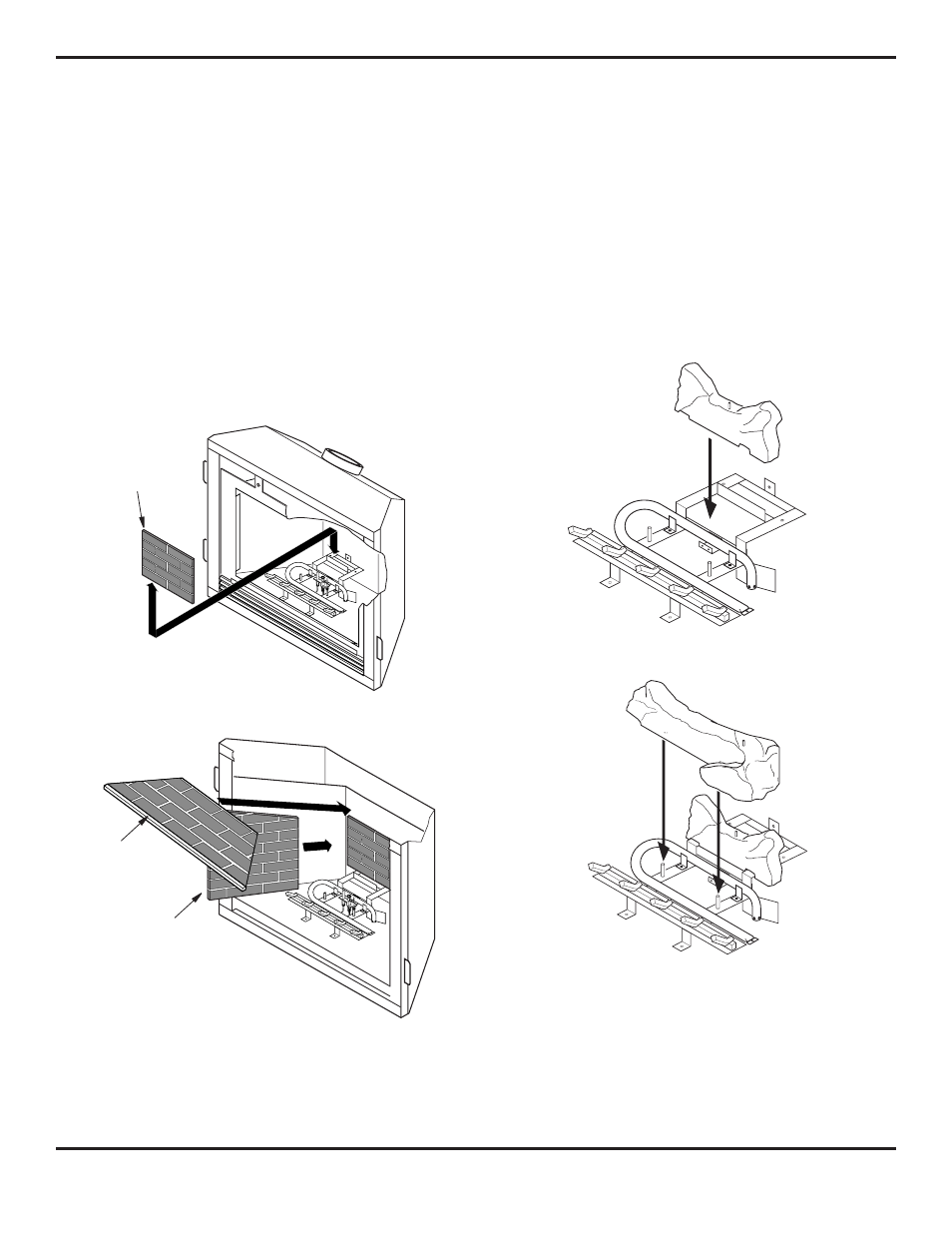

Figure 42 - Installing Rear Brick Panel
Figure 43 - Installing Left Side and Top Brick Panels
Rear Brick Panel
Left Side
Brick Panel
Top Brick Panel
((V)T36 Series
and CTDV36NR
Only)
INStALLING LOGS, LAvA ROCK AND
GLOWING EMbERS
Note: 36" models shown. Logs will vary slightly for 32" models.
Each log is marked with a number. These numbers will help you
identify the log when installing. It is very important to install these
logs exactly as instructed. Do not modify logs. Only use logs sup-
plied with fireplace.
Open louvers, remove screen, unlock door latches, and open glass
door. See steps 1 and 2 of Removing/Replacing Glass Door, page 20.
Install logs according to instructions for fireplace model numbers.
1. Place log #1 (rear log) on top of grate. Make sure the notches
in the bottom of the log fit over the grate (see Figure 44).
2. Rest log #2 (large front log) on the pins on the front part of the
grate (see Figure 45).
1
2
Figure 44 - Installing Log No. 1
Figure 45 - Installing Log No. 2
5. Install rear brick panel first. Rest bottom edge of panel on back
edge of grate (see Figure 42).
6. Install top brick panel (36" Series only) by resting on the top
of the rear panel. Hold the top brick panel in place and install
left side brick panel by sliding it between the grate and the side
of the firebox, securing top panel (see Figure 43).
7. Install the right brick panel using the same method described
in step 6 for the left brick panel.
8. Replace deflector shield using screws removed in step 4.
9. Follow instructions on page 24 to install logs, lava rock, and
ember material.
10. Close glass door, lock latches on top and bottom of door and
replace screen (see steps 5 and 6 of Removing/Replacing Glass
Door, page 20).
11. Close top and bottom louvers.
