Page 13

Chapter 1: Introduction

1-3

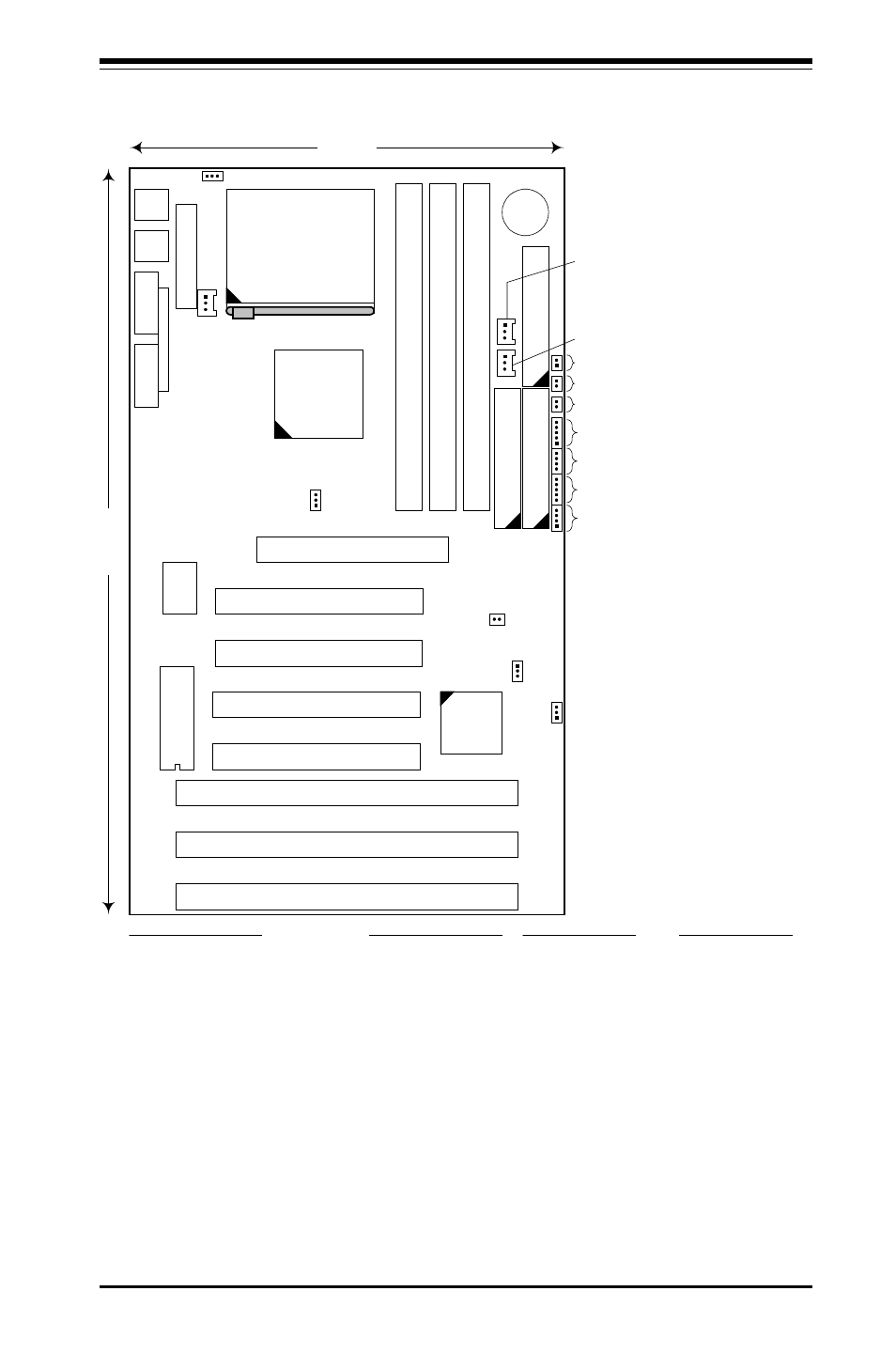

Figure 1-2. SUPER 370SBA Motherboard Layout

12 inches

7 inches

Super

370SBA

ISA 1

ISA 2

ISA 3

PCI 1

PCI 2

PCI 3

PCI 4

A G P

Super

I/O

DIMM - BANK 2

DIMM - BANK 1

DIMM - BANK 0

IDE 1

IDE 2

Floppy

Battery

4 4 0 B X

Chipset

PIIX4EB

Keybd

---------

Mouse

USB

COM 1

COM 2

LPT 1

JP11

JPWAKE (see Note 1)

JT1 - CPU FAN

J O H ( O V E R H E A T L E D )

R E S E T S W

P O W E R O N L E D

IR CON (INFRARED PORT)

S P E A K E R

K E Y L O C K

IDE LED

JL1 - CHASSIS

I N T R U S I O N S W

JBT1 - CMOS CLEAR

JT3 - THERMAL CTL FAN

JT2 - CHASSIS FAN

(see Note 2)

BIOS

ATX Power

Celeron

Processor

( P P G A p a c k a g e )

Jumper Settings

J P W A K E :

1-2 Disable Keyboard Wake-Up (default)
2-3 Enable Keyboard Wake-Up (see Note 1)

JP11:

1-2 Auto Select Bus Speed
2 - 3 6 6 M H z B u s S p e e d
O F F 1 0 0 M H z B u s S p e e d

J B T 1 :

1-2 Normal
2 - 3 C M O S C l e a r

Notes

1 T o e n a b l e K e y b o a r d W a k e - U p , s e t

JPWAKE jumper to 2-3 and E N A B L E
K e y b o a r d W a k e - U p f u n c t i o n i n
system BIOS.

2 Chassis Intrusion Switch (JL1) is

normally open. If connected to
chassis switch, removing chassis
cover causes switch input to close.

3 No CPU jumper settings are required

for the Celeron (333/366 MHz)
processor. The settings are preset
(fixed bus ratio) in the processor.

W O L
