5 MiniCore
Installation
The system design and installation should follow
accepted industry practices, such as described in the
ASHRAE Handbook and SMACNA.
Minimum service clearance should be provided on
the side of the unit for routine service and component
removal should it become necessary.
Before beginning installation see page 4 for appropriate
service clearances

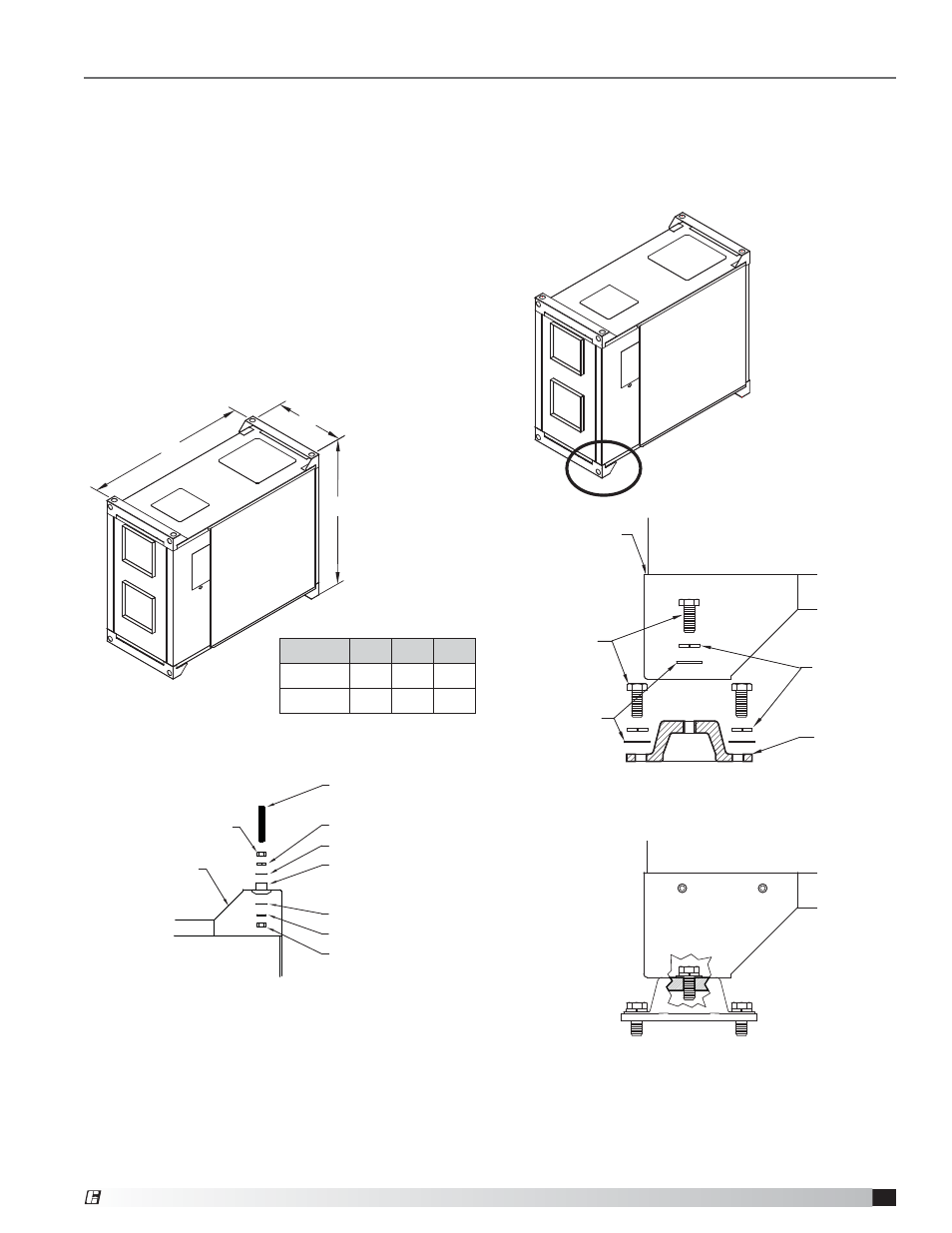

Hang Mounting
with Hanging Vibration Isolators
• The hanging isolator kit includes four (4) isolators and
required hardware.
• Locate the support rods as shown in the drawing.
• Assemble each isolator as shown below.
MiniCore A B C
5
44.8 14 39.4
10
44.8 19.2 39.4
All dimensions are in inches.
A
B
C
Isolator
Flat Washer
Lock Washer Nut
1/2-inch threaded rod,
provided by others
Flat Washer
Lock Washer
Nut
Hanger bracket,
factory-mounted
Hanging Vibration Isolator Assembly
Base Vibration Isolator Assembly
3/8-inch bolt
Factory-mounted
bracket
Lock washer
Flat washer
Isolator
Assembled and Mounted Isolator Detail
Base Mounting
with Base Vibration Isolation
• The base isolators kit includes four (4) isolators,
four (4) brackets and required hardware.
• Assemble and mount the isolators as shown in the
figures below.
®
