3 MiniCore

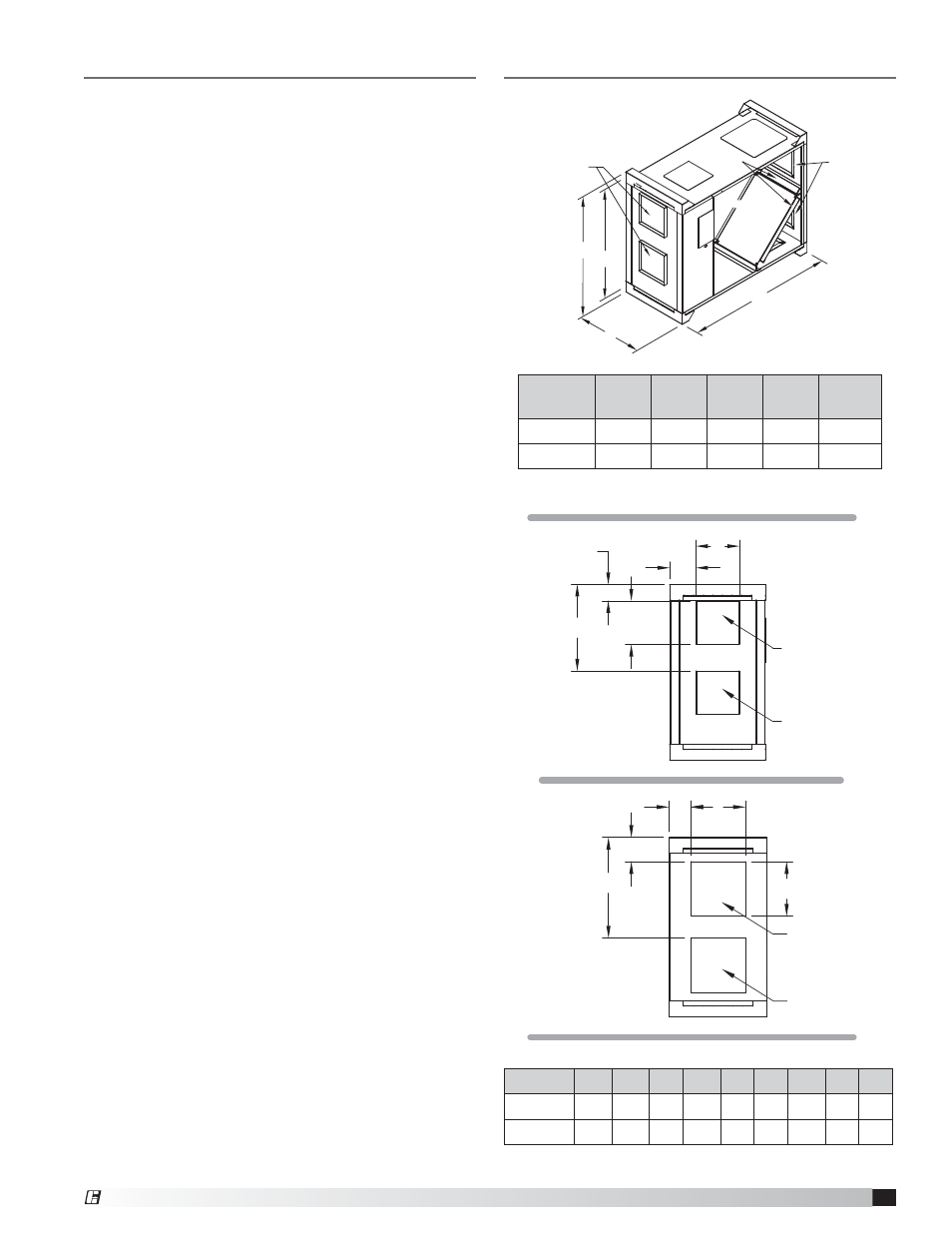

Dimensional Data and Weights
MiniCore A A1 B C
Weight
(lbs.)
5
39.4 34.4 16.2 47.3 230
10
39.4 34.4 21.4 47.3 245
All dimensions are in inches.
Table of Contents
Dimensional Data and Weights . . . . . . . . . . . . 3
Changing the Inlet Location . . . . . . . . . . . . . . 4
Changing the Discharge Location . . . . . . . . . . . 4
Service Clearances and Access Panel Locations . . . 4
Installation
Hang Mounting with Hanging Vibration Isolators. . 4
Base Mounting with Base Vibration Isolators. . . . 5
Duct Connections . . . . . . . . . . . . . . . . . . 6
Electrical Connections
Unit Wiring Sequence . . . . . . . . . . . . . . . . 6
Frost Control . . . . . . . . . . . . . . . . . . . . 6
Wiring Schematics . . . . . . . . . . . . . . . . . . . 7
System Start-Up
Unit Documentation Record . . . . . . . . . . . . 8
Pre-Start-Up Checklist . . . . . . . . . . . . . . . 8
Start-Up Checklist . . . . . . . . . . . . . . . . . 8
General . . . . . . . . . . . . . . . . . . . . . . . 9
Check Voltage . . . . . . . . . . . . . . . . . . . . 9
Blower Wheel Rotation . . . . . . . . . . . . . . . 9
Air Volume Check & Measurement . . . . . . . . . 9
Voltage, Amperage and Fan RPM . . . . . . . . . 9
Routine Maintenance
General . . . . . . . . . . . . . . . . . . . . . . . 9
Fasteners and Set Screws . . . . . . . . . . . . . 9
Removal of Dust and Dirt . . . . . . . . . . . . . . 9
Internal Filters . . . . . . . . . . . . . . . . . . . . 9
Energy Core . . . . . . . . . . . . . . . . . . . . 10
Optional EC Motors . . . . . . . . . . . . . . . . . 10
Troubleshooting . . . . . . . . . . . . . . . . . . . 11
Maintenance Log. . . . . . . . . . . . . . . Backcover
Our Commitment. . . . . . . . . . . . . . . Backcover
A
A1
B
C
Discharge End
Intake End Filters
Core Core
MiniCore D E F G H J K L M
5
9.75 9.75 3.7 19.8 3.2 5.3 22.1 12 2.1
10
9.75 9.75 3.7 19.8 5.8 5.3 22.1 12 4.7
All dimensions are in inches.
D
E
F
H
G
Discharge A
Discharge B
J
K
L
L M
Intake A
Intake B
Discharge End
Intake End
®
