3

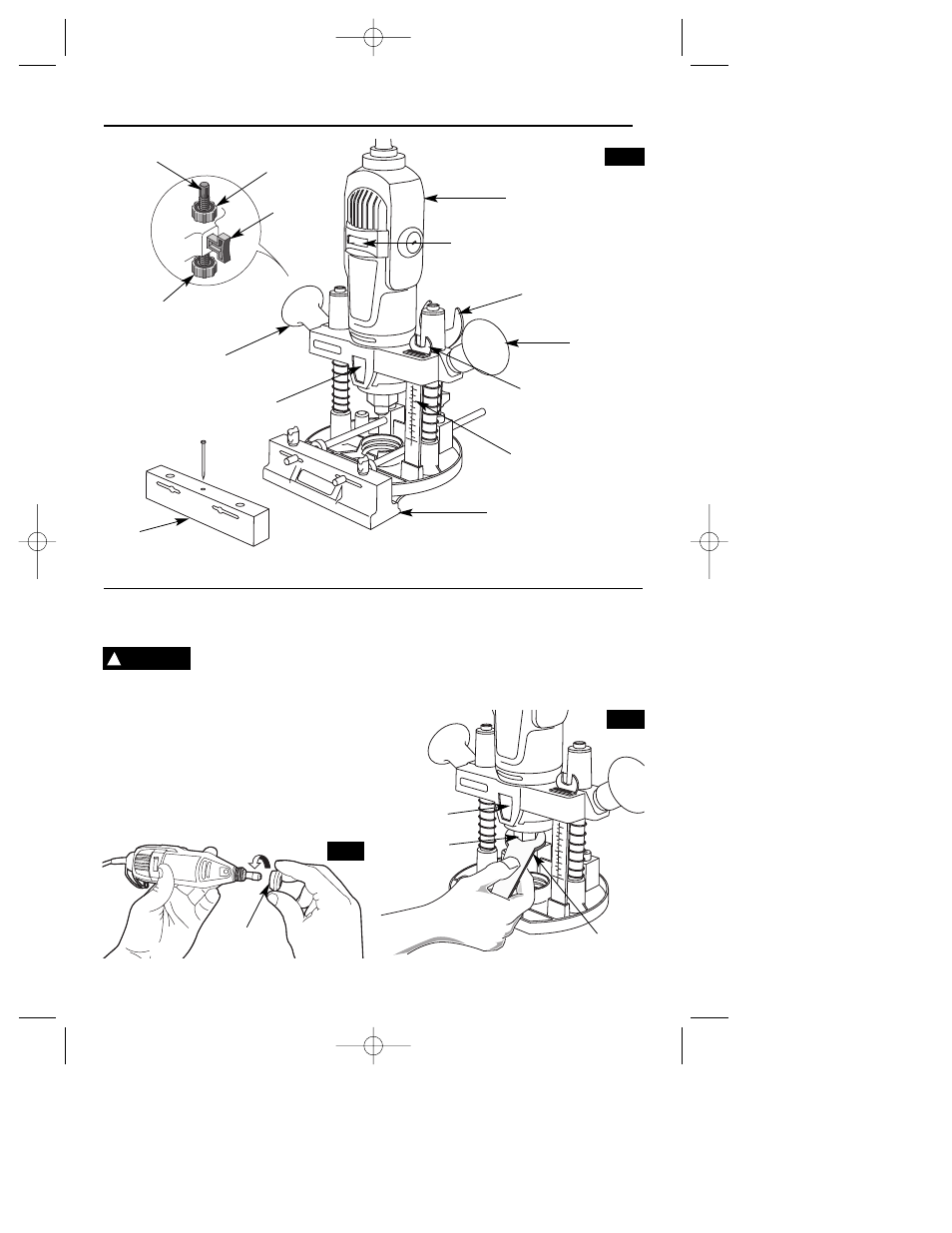

Operating Controls
Assembling Plunge Router Attachment to your Tool
ATTACHMENT FOR USE WITH DREMEL
ROTARY TOOL MODELs 275, 285, 395, &
398.
Disconnect the plug from
the power source before
making any assembly, adjustments or
changing accessories. Such preventive
safety measures reduce the risk of starting
the tool accidentally.
1. Remove collet nut, then remove housing
cap from your rotary tool and set housing
cap aside (Fig. 2). The housing cap must
be reinstalled when this attachment is
not used. Once housing cap has been
removed, reassemble the collet nut.
2. Place tool into your router attachment
with the shaft lock button facing forward
as shown (Fig. 3).
3. Thread mounting nut clockwise onto the
threaded portion of your Rotary Tool and
securely tighten with the mounting
wrench provided.
! WARNING
Shaft Lock
Button
Hand Grip
(turn to lock)
Hand Grip
(stationary)
Speed Control
Depth Scale
(English/Metric)
Dremel
Rotary Tool
Depth Stop Adjustment
Nut, Upper
Release
Button
Adjustment
Nut, Lower
Shaft Lock
Button
Housing
Cap
Mounting Wrench
& Storage Area
Collet Nut Wrench
Storage Area
(Wrench not included)
Mounting
Wrench
Mounting
Nut
Edge Guide
FIG. 1
FIG. 2
FIG. 3
Circle
Guide
