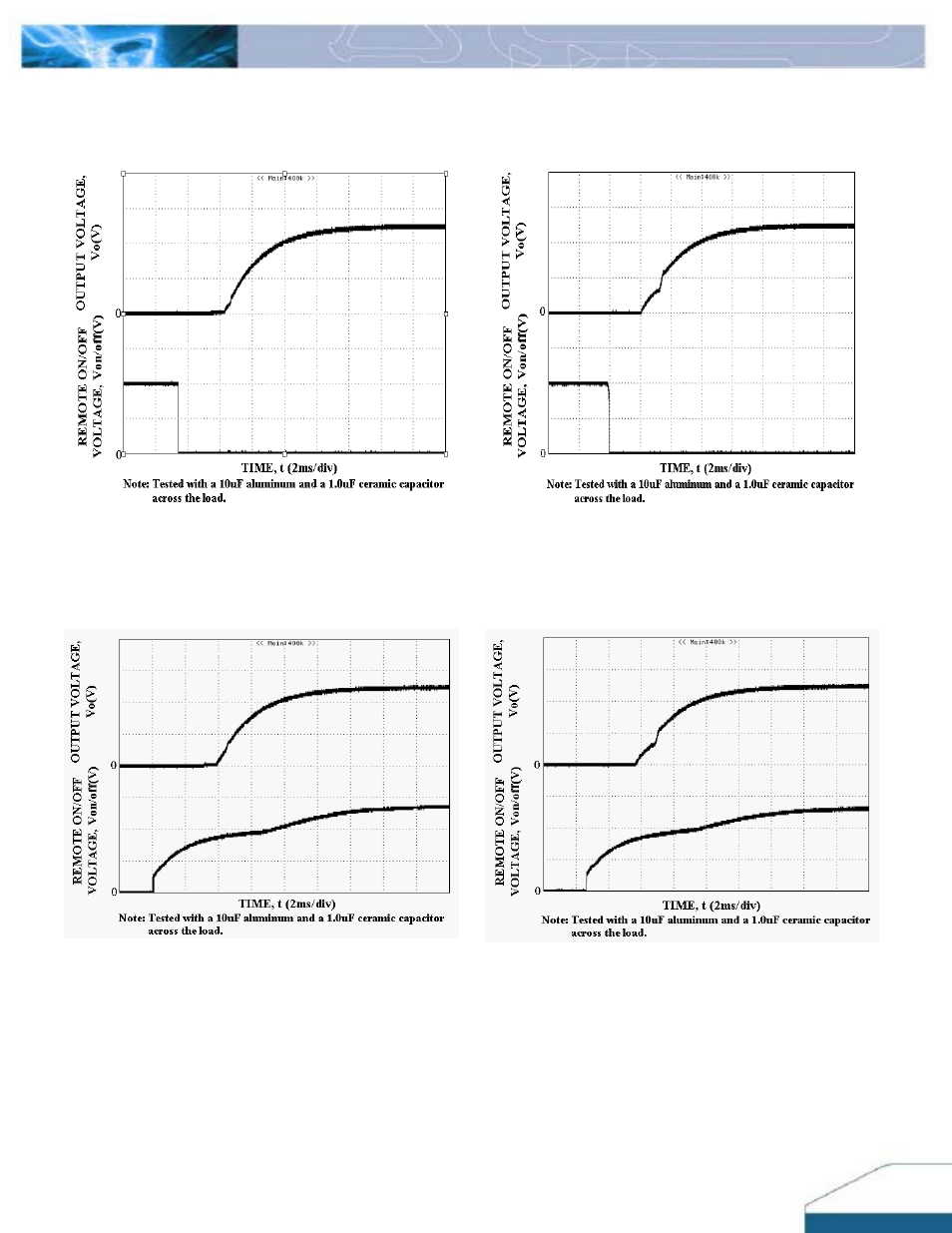

ELECTRICAL CHARACTERISTICS CURVES

For Negative Remote On/Off Logic

Figure 4: Turn-on transient at full rated load current (resistive
load) (2 ms/div).Vin=48V. Top Trace: Vout; 2V/div; Bottom
Trace: ON/OFF input: 5V/div

Figure 5: Turn-on transient at zero load current (2 ms/div).
Vin=48V. Top Trace: Vout: 2V/div; Bottom Trace: ON/OFF input:
5V/div

For Positive Remote On/Off Logic

Figure 6: Turn-on transient at full rated load current (resistive
load) (2 ms/div).Vin=48V. Top Trace: Vout; 2V/div; Bottom
Trace: ON/OFF input: 5V/div

Figure 7: Turn-on transient at zero load current (2 ms/div).
Vin=48V. Top Trace: Vout: 2V/div; Bottom Trace: ON/OFF input:
5V/div

4
