Back Panel Connectors

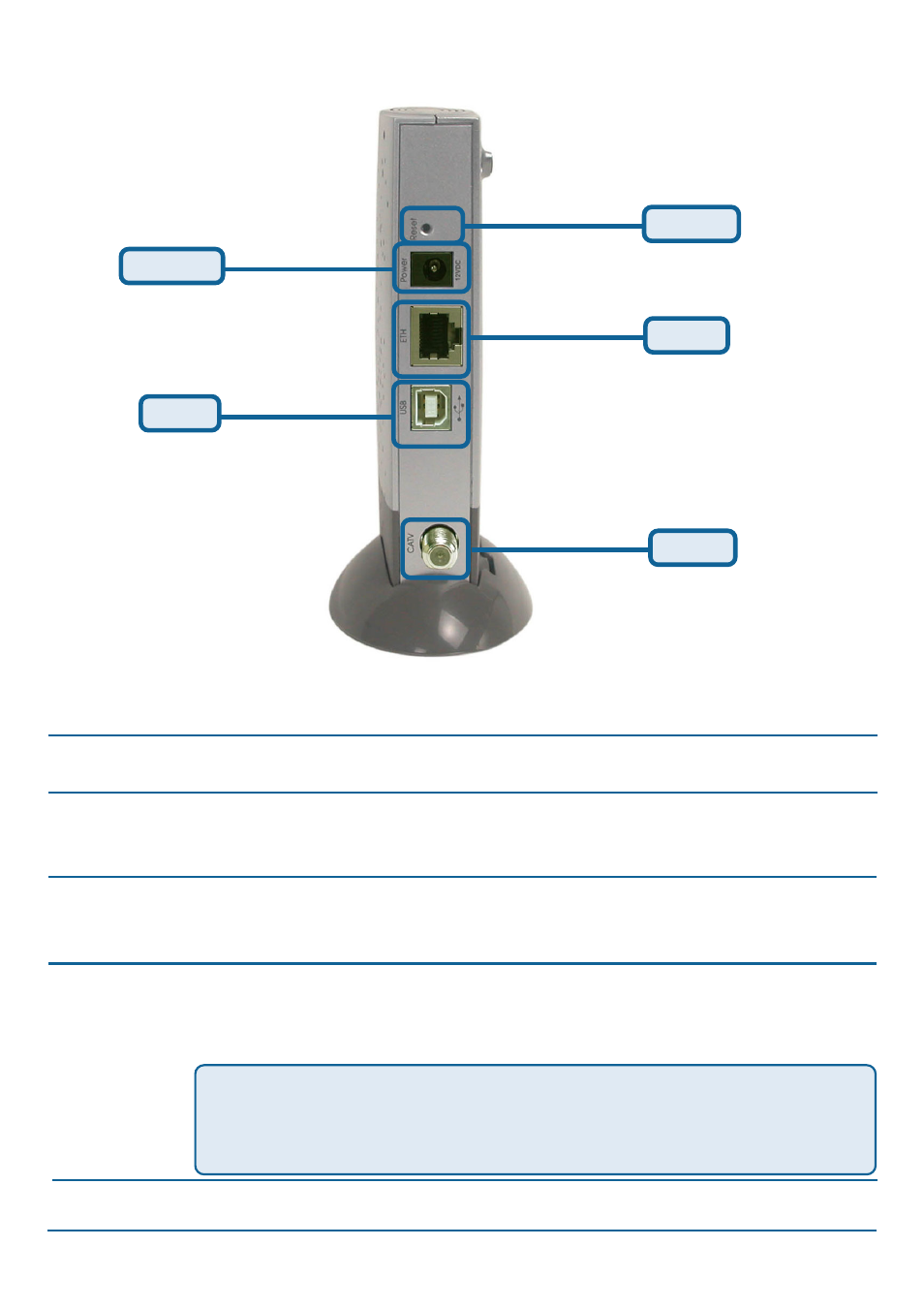

Descriptions of the Back Panel Connectors
ETH
RJ-45 female port for connection of Ethernet cable.
USB
USB ‘B’-type port. Connects through USB cable to a
computer’s USB ‘A’-type port.
CATV
RF connector to attach the cable for broadband Internet
access.
Power
Jack to connect the power adapter included in the product
package.
Caution! You must use the 12VDC/1.0A power adapter that
comes with the DCM-202 cable modem. Using the
wrong power adapter can damage the cable modem.
RESET
Restores factory default settings.
Reset
Power
ETH
USB
CATV
