34
This list contains replaceable parts used in your generator. When ordering parts,
follow the instructions listed under REPLACEMENT PARTS on page 28 of this

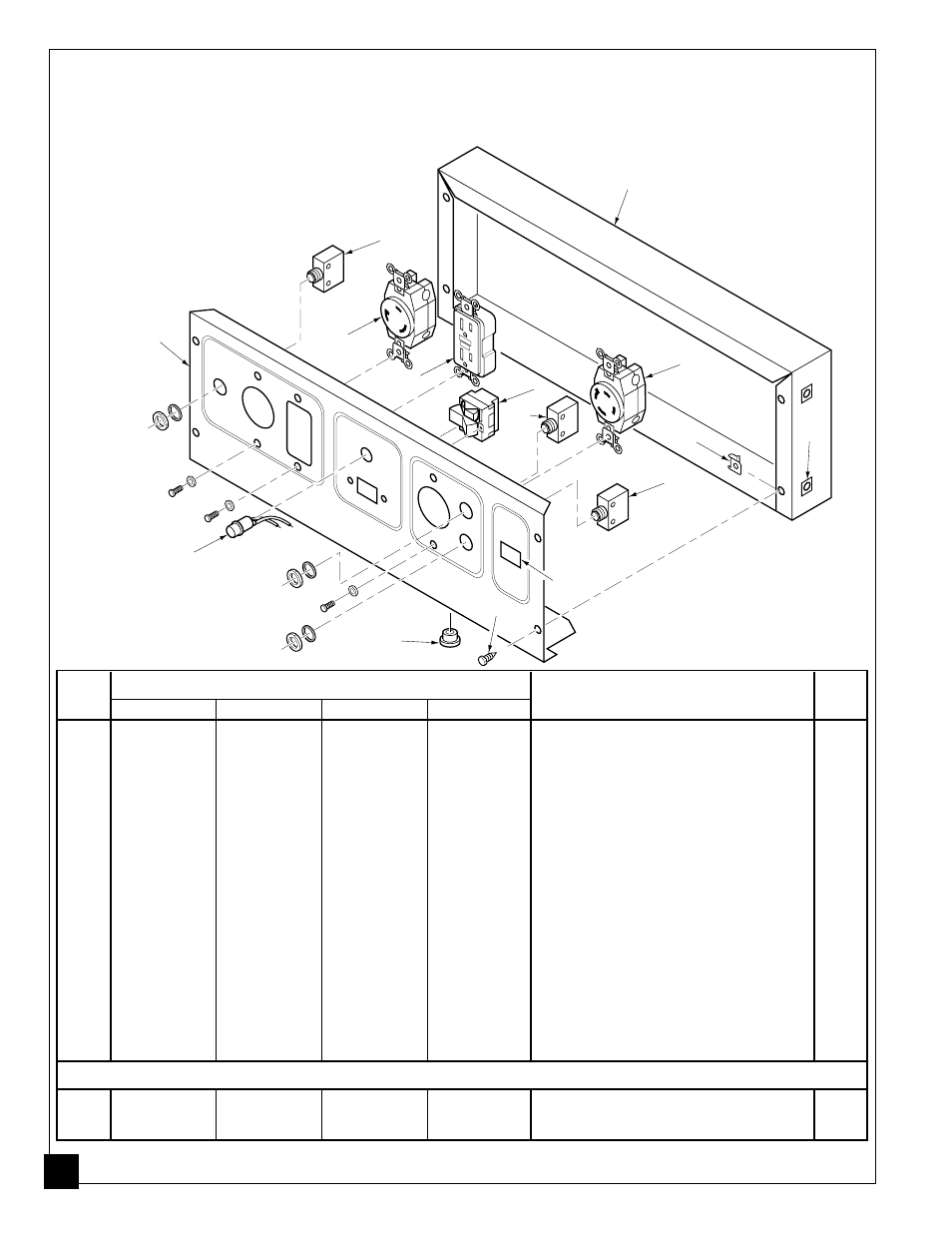

manual. ILLUSTRATED
PARTS LIST
RESET
FULL POWER
SELECTOR 120/240 VOLTS
RESET
RESET
1
2
3
4
5
7
6
6
9
10
11
12 12
120
ONLY
120
240V
120 VOLTS
8
RESET
TEST
13
KEY PART NUMBER FOR MODEL
NO. MGH4000A MGH5000A MGH6000 MGH7000 DESCRIPTION QTY.
1 100148-01 100148-02 100148-03 100148-04 Control Panel 1
2 22616009 22616009 22616009 22616009 Circuit Breaker, 20 Amp * 1
3 099833-01 099833-01 099833-01 099833-01 120V, 30A Twist-Lock Receptacle * 1
4 100445-01 100445-01 100445-01 100445-01 120V, 15A Duplex (GFCI) Receptacle * 1
5 099956-01 099956-01 099956-01 — Full Power Selector Switch * 1
6 22616009 — — — Circuit Breaker, 20 Amp * 2
— 22616011 — — Circuit Breaker, 25 Amp * 2
— — 22616010 22616010 Circuit Breaker, 30 Amp * 2
7 099834-01 099834-01 099834-01 — 120/240V, 20A Twist-Lock Receptacle * 1
— — — 099835-01 120/240V, 30A Twist-Lock Receptacle * 1
8 26299000 26299000 26299000 26299000 Lamp 1
9 099760-01 099760-01 099760-01 099760-01 Bushing 1
10 100410-01 100410-01 100410-01 100410-01 Sems Screw, #8-18 x 1/2" 4
11 100149-01 100149-01 100149-01 100149-01 Control Box 1
12 22261000 22261000 22261000 22261000 U-Nut 8
13 099997-01 099997-01 099997-01 099997-01 Switch Plug 1
PARTS AVAILABLE - NOT SHOWN
100177-01 100177-01 100177-01 100177-01 Panel Schematic Decal 1
* Includes fastening hardware
For Models
MGH4000A,
MGH5000A,
MGH6000, and
MGH7000
Control Panel
