29
This list contains replaceable parts used in your generator. When ordering parts,
follow the instructions listed under REPLACEMENT PARTS on page 28 of this

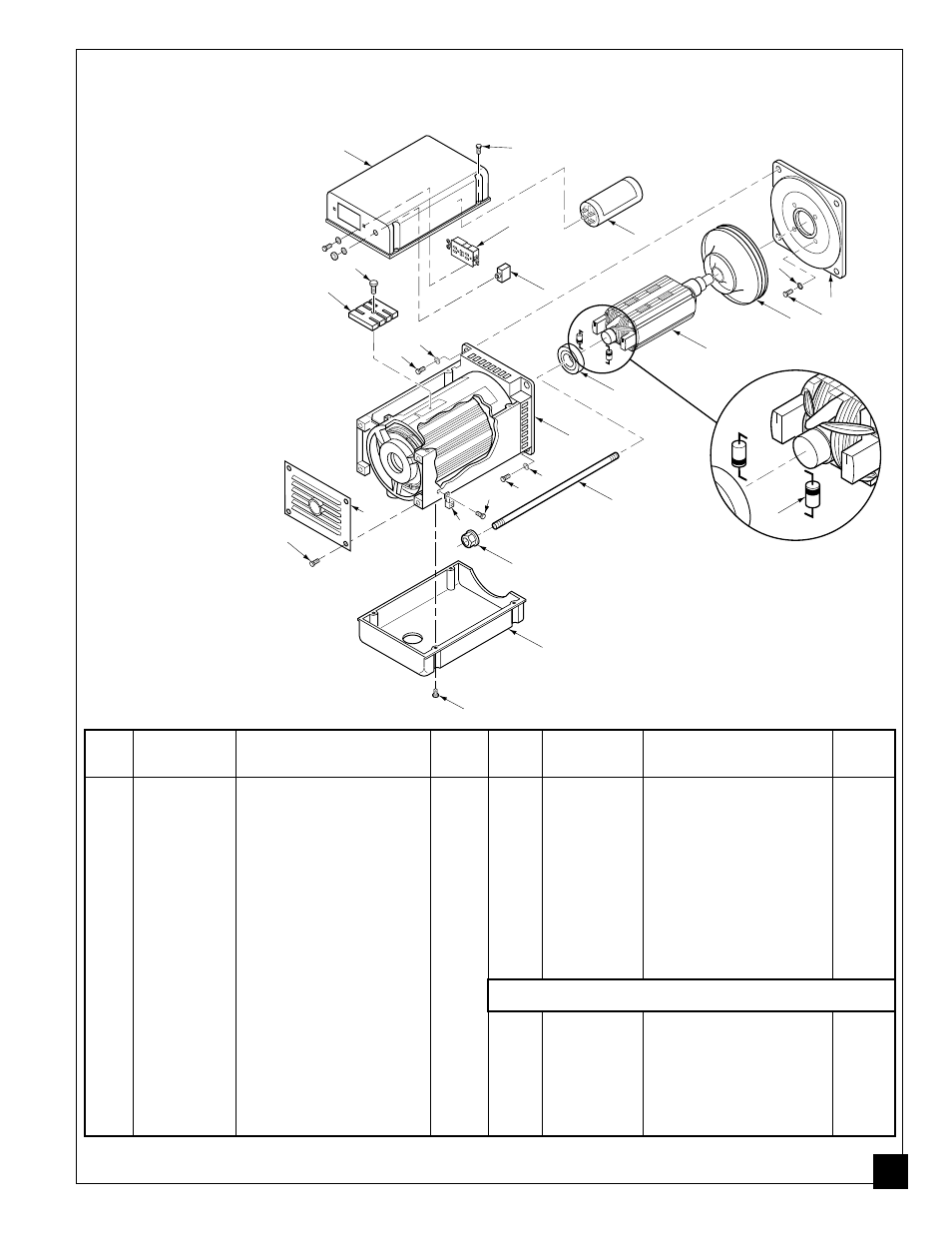

manual. ILLUSTRATED
PARTS LIST
For Model MGH3000
Alternator Assembly
† Includes fastening hardware.
* Part not available by itself. Must purchase Alternator Assembly.
15 27001005S Engine Flange 1
16 WLE-4 Lock Washer, 1/4" 4
17 * Stator 1
18 27001002 Bearing 1
19 27001009S Diode 2
20 * Rotor 1
21 27001006 Fan 1
22 26327006 Bolt, 5/16-24 x 5/8" 4
23 WLE-5 Lock Washer, 5/16" 4
PARTS AVAILABLE - NOT SHOWN
099866-03 Safety Information Decal 1
099866-04 Safety Information Decal 1
099867-02 Operation Decal 1
KEY PART
NO. NUMBER DESCRIPTION QTY.
099722-02 Alternator Assembly 1
1 100074-01 Top Cover 1
2 100065-01 120V, 15A Duplex (GFCI)
Receptacle † 1
3 22616009 Circuit Breaker, 20 Amp † 1
4 27002002S Capacitor 1
5 26333000 Screw, M4 x 20 1
6 099863-01 Terminal Block 1
7 099701-01 Screw, M5 x 13 12
8 099848-01 End Plate 1
9 17587000 Ground Lug 1
10 099891-01 Flanged Nut, 8mm 1
11 M11084-26 Screw, #10 x 3/8" 1
12 099861-01 Bottom Cover 1
13 099842-01 Draw Bolt 1
14 26310000 Screw, M6 x 16 4
KEY PART
NO. NUMBER DESCRIPTION QTY.
5
6
17
19
18
20
21
15
10
3
8
9
7
13
14
16
14
16
22
23
11
12
7
4
1
2
7
