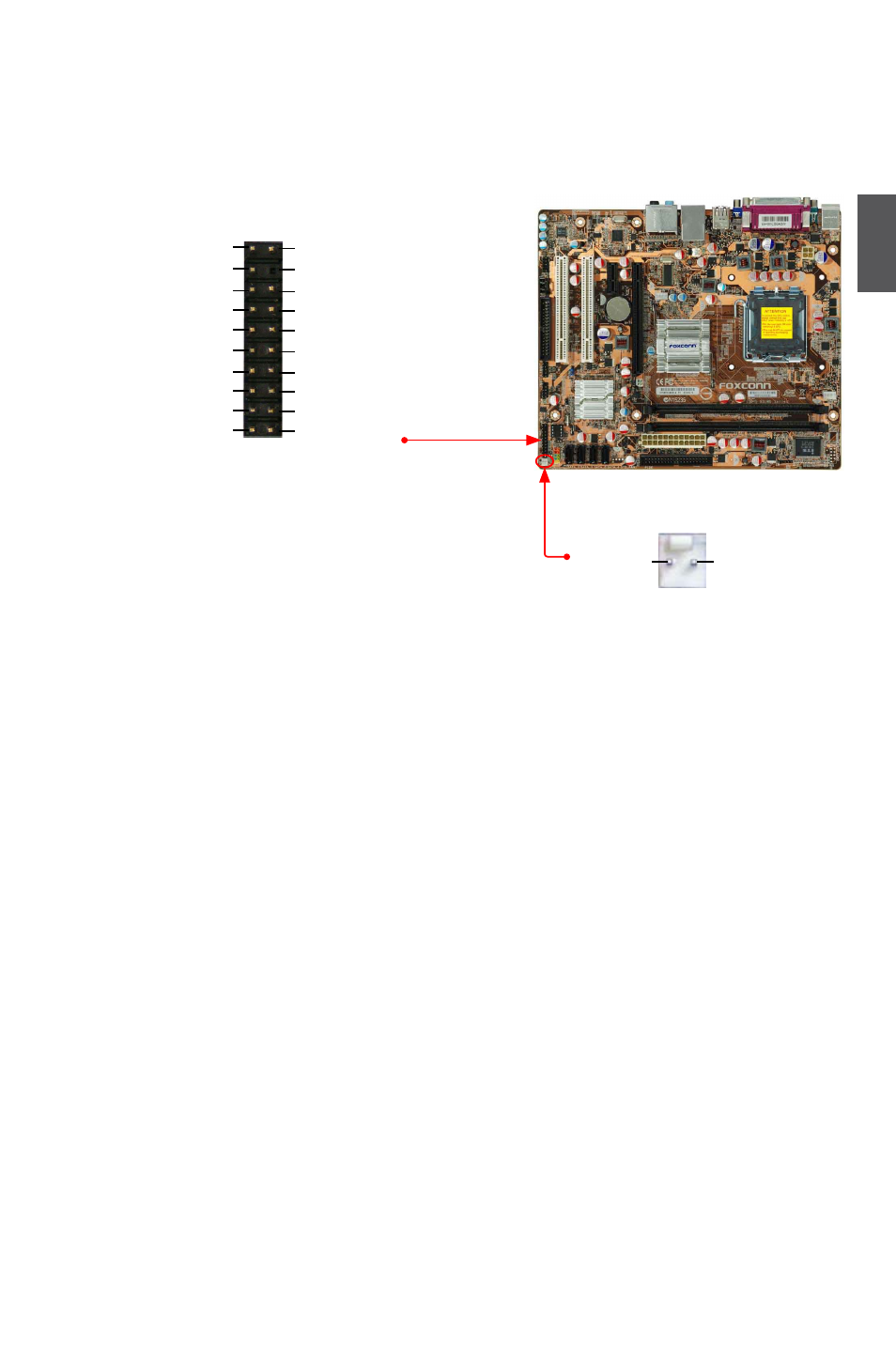

TPM Connector : TPM

The TPM (Trusted Platform Module) provides the ability
to the PC to run applications more secure and to make
transactions and communication more trustworthy. To
utilize this function, you should purchase additional
device and install it.

PWR_bU Header : PWR_bU

This Green Power Saving header can be connected to
a special Green Power Supply to dramatically reduce
the power consumption in standby mode. Our Green
series motherboards are supporting this feature. When
you connect the Green Power Supply to this mother-

board, and set the "Green Mode/Normal Mode" switch

on the Green Power Supply to "Green Mode" position,

the “System Mode” in BIOS will be changed to [Green

System] automatically.

LCLK

LFRAMEn

LRESETn

LAD3

VDD

LAD0

NC_2

NC_1

GND

LPCPDn

GND

EMPTY

LAD2

NC_3

LAD1

GND
NC_4
SERIRQ

CLKRUNin
NC_5

1 2

19 20

TPM

1

2

POWER

BUTTON

POWER SUPPLY
DETECTION

PWR_BU
