INSTALLATION
Continued
10. Install door catch bolt (M8 x 1.25-55mm with
two M8 hex nuts) into threaded hole on stove
body (see Figure 7). Use an adjustable wrench
or a 12mm socket. The catch bolt has two hex
nuts attached to it (see Figure 11). The top nut
is a bolt stop and the bottom nut is for door
leveling adjustment.
11. Check general catch bolt alignment with door
claw. Make final adjustment and door level-
ing after stove is in normal standing position.
12. Carefully lift stove back up on its four attached
legs.
13. Remove gas log heater from carton. Note: Do
not pick up gas log heater by the burner itself.
This could damage heater. Always handle the
gas log heater by the heater base only.
14. Fasten stove pan to stove with two (2) M6
x 1 - 25mm bolts. Use a flat washer and lock
washer with each bolt. Tighten bolts into
threaded holes on stove body (see Figures
7 and 9). Use an adjustable wrench or a
10mm socket.
15. Set top grates into stove top.

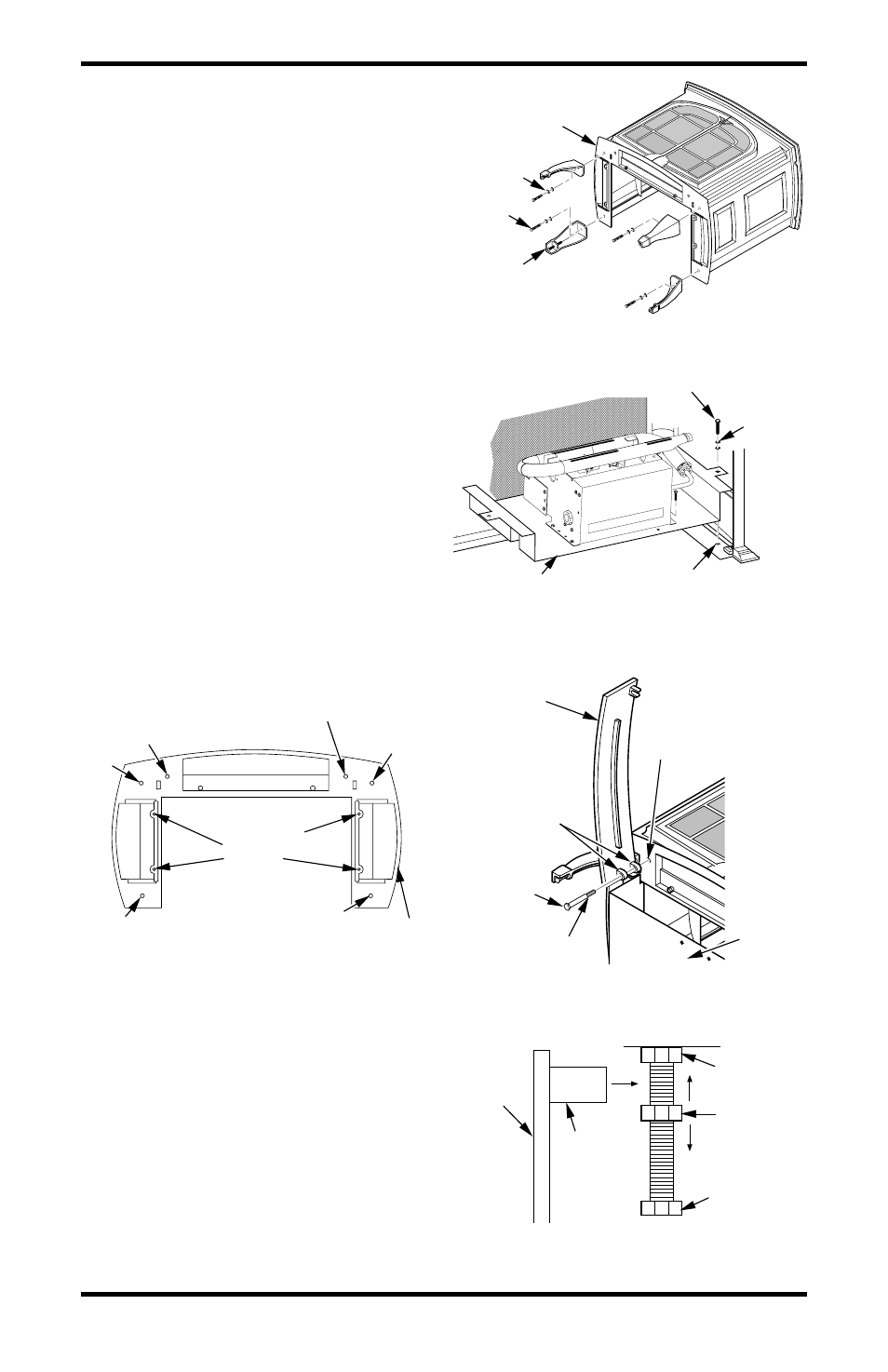

Figure 7 - Locating Threaded Holes for
Stove Bottom, Legs, and Door
Attachment (Appearance May Vary
Depending on Model)
Leg
Hole
Leg Hole
Leg Hole
Leg Hole
Door Hinge
Step Bolt Hole
Door Catch Bolt
With Adjustable
Hex Nuts Hole
Holes for
Stove
Bottom
Front
Bottom Of
Stove Unit
Figure 8 - Attaching Stove Legs
(Oxford™ Model Shown)
Bottom Of
Stove Unit
Leg
Bolt
Washers
Figure 9 - Attaching Stove Pan
(Oxford™ Model Shown)
Threaded Holes
in Stove Body
Bolt
Washers
Stove Pan
Figure 10 - Attaching Stove Door
(Appearance May Vary Depending on Model)
Stove
Bottom
Step
Bolt
Door
Hinge
Threaded
Hole
Stove
Door
Bolt Shoulder
Figure 11 - Catch Bolt and Door Claw
Orientation
Adjusting
Nut
Bolt Stop
Catch
Bolt
Door
Claw
Door
