11
2

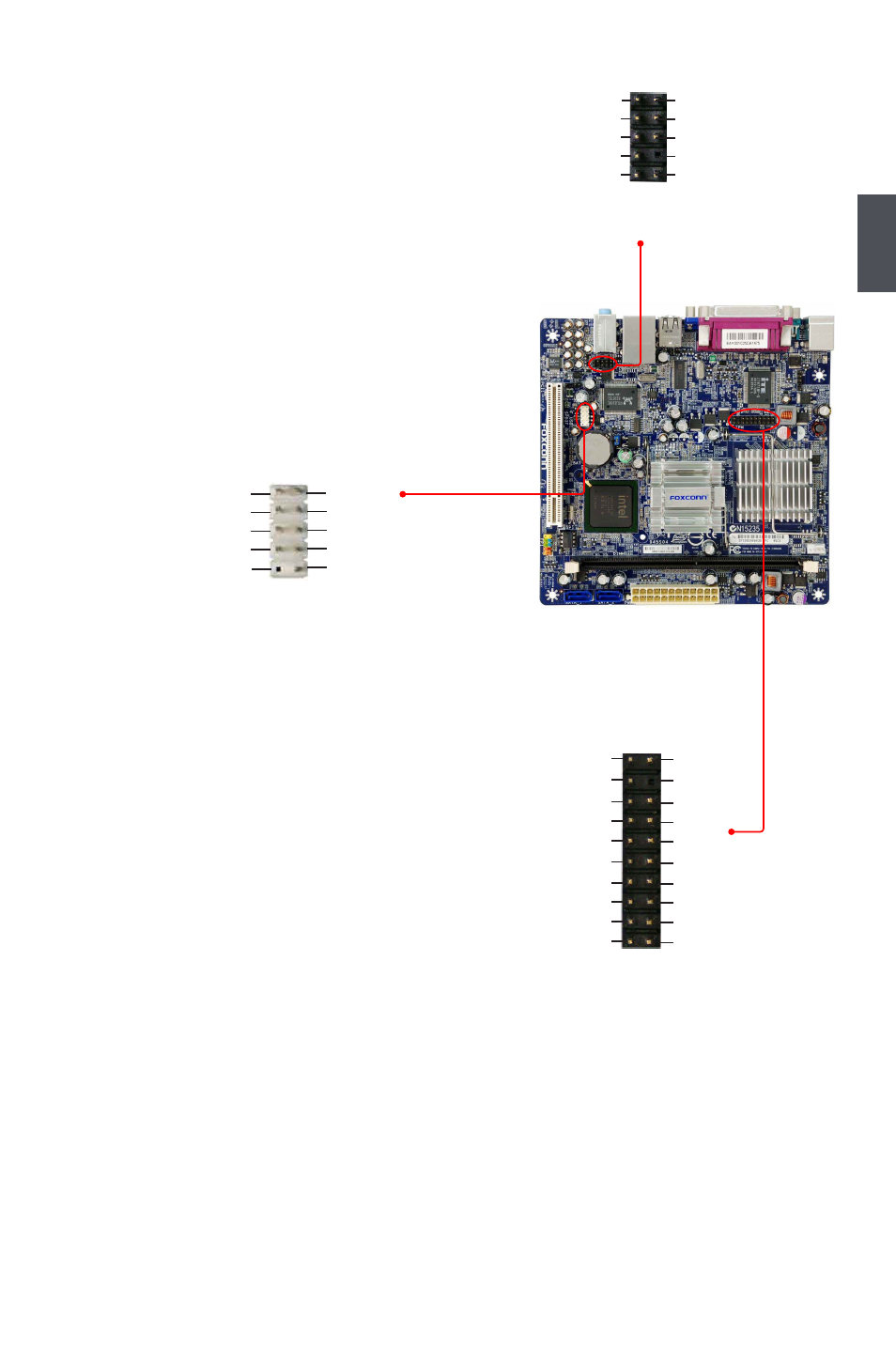

Audio Connector : f_AUDIo
The audio connector supports HD Audio standard.
It provides the Front Audio output choice.
USb Connectors : f_USb1
In addition to the four USB ports on the rear panel, this
product also provides one 10-pin USB headers on its
motherboard. By connecting through USB cables with
them, user can quickly expand another two USB ports
on the front panel.
TPM Connector : TPM
The TPM (Trusted Platform Module) provides the ability
to the PC to run applications more secure and to make
transactions and communication more trustworthy. To
utilize this function, you should purchase additional device
and install it.
PORT1_L
PORT1_R
PORT2_L
SENSE_SEND
SENSE1_RETURN
PRESENCEJ
EMPTY
SENSE2_RETURN
AUD_GND
1 2
10 9
F_AUDIO
PORT2_R
LCLK#
LFRAME#
LRESET#
LAD3
VDD
LAD0
SB3V
NC
GND
LPCPD#
GND
EMPTY
LAD2
NC
LAD1
GND
NC
SERIRQ
CLKRUN#
NC
1 2
19 20
TPM
NC
GND
VCC
D+
D-
D+
GND
D-
VCC
EMPTY
1 2
10 9
F_USB1
