17 fan headers : cpu_fan, sys_fan, nb_fan, S/pdif out connector : spdif_out, Speaker connector : speaker – Foxconn A7DA Series User Manual
Page 24
2
17
fan Headers : CPU_fAN, SYS_fAN,
Nb_fAN

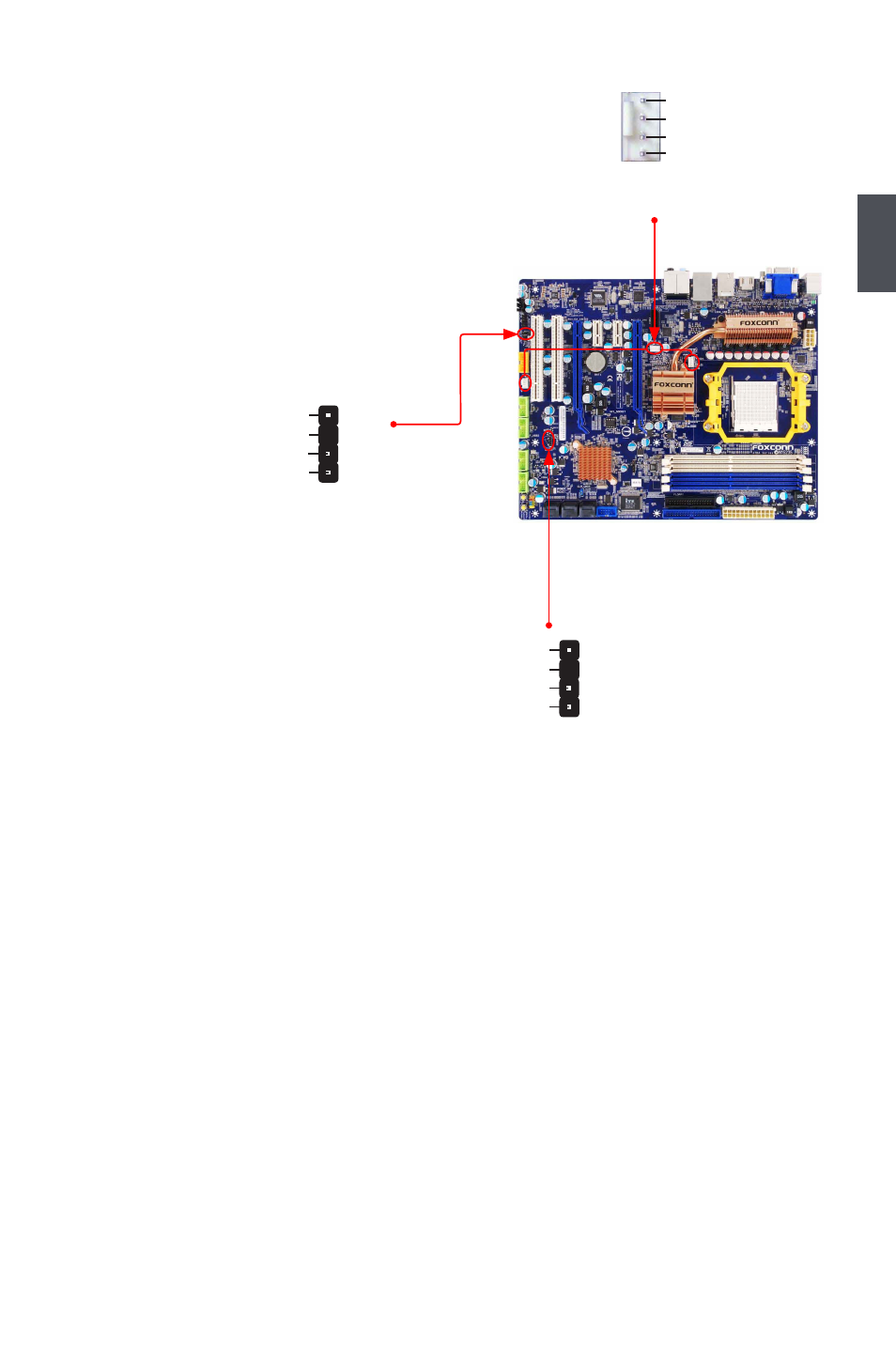

There are three main fan headers on this moth-
erboard. The fan speed can be controlled and
monitored in “PC Health Status” section of the
BIOS Setup. These fans can be automatically
turned off after the system enters S3, S4 and S5
sleeping states.
S/PDIf oUT Connector : SPDIf_oUT
The connector is used for S/PDIF output.
Speaker Connector : SPeAKeR
The speaker connector is used to connect speaker
of the chassis.
NC
SPKJ
EMPTY
SPEAKER
SPKJ
1
2
3
4
SPDIF_OUT
+5V
EMPTY
SPDIF_OUT
GND
1
2
3
4
CPU_FAN / SYS_FAN /
NB_FAN
GND
POWER
SENSE
CONTROL
1
