Chapter 2 Installation Instructions
NF4K8AB Series User Manual
Rear Panel Connectors

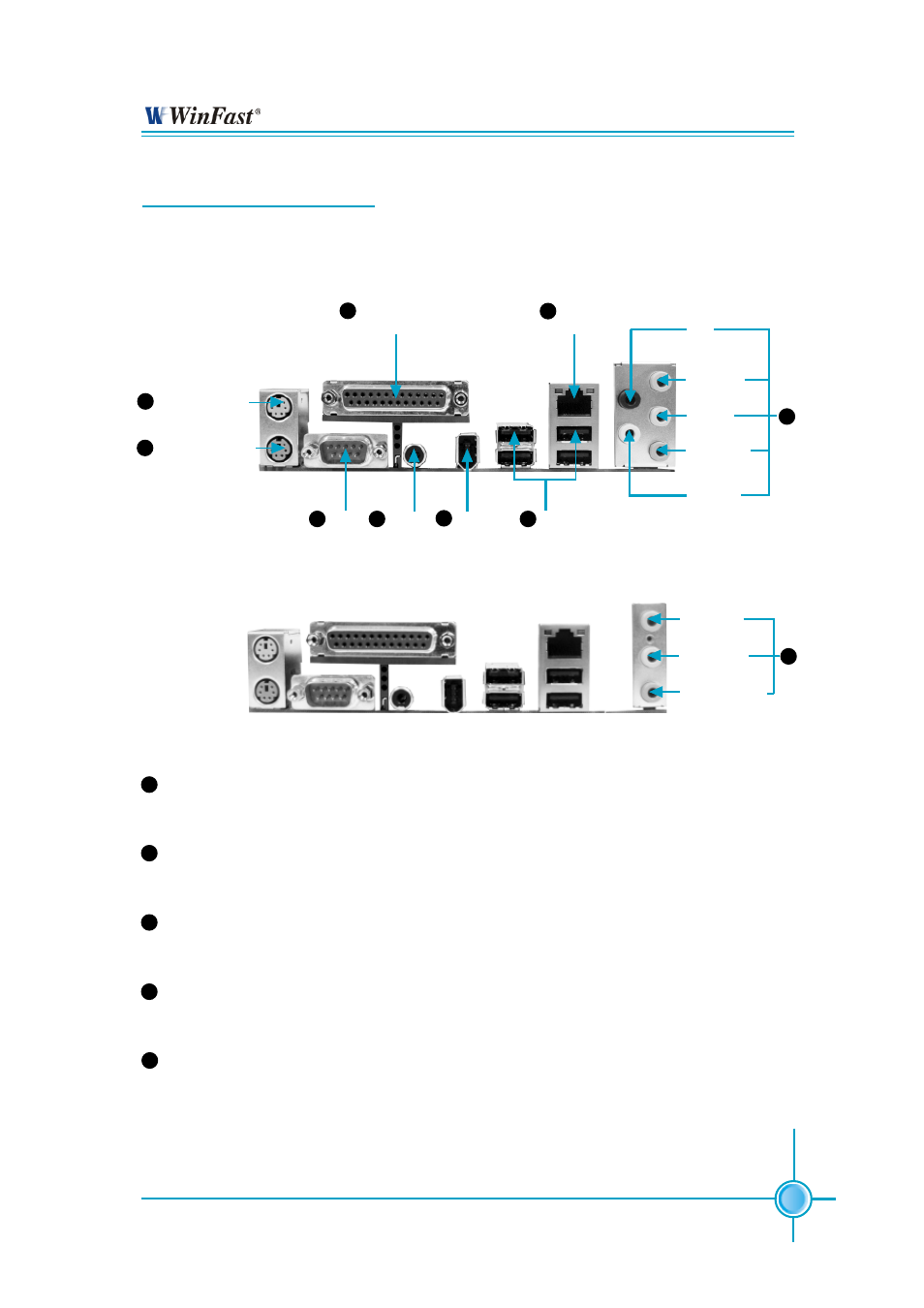

This motherboard provides the following ports as below:
COM1 USB 2.0 Ports
PS/2 Mouse Port
PS/2 Keyboard Port
Parallel Port
(Printer Port)
LAN Port
1394 Port
(optional)
4
5 6 7
8
SPDIF
Coaxial
Out Port
3
1
2
L i n e - i n /
Side
Line-out/
Front
Microphone
Rear
CEN/LFE
9
PS/2 Mouse Port
This green 6-pin connector is for a PS/2 mouse.
PS/2 Keyboard Port
This purple 6-pin connector is for a PS/2 keyboard.
Serial Port: COM1
This 9-pin COM1 port is for pointing devices or other serial devices.
Parallel Port: Printer Port
The 25-pin port connects a parallel printer, a scanner, or other devices.
SPDIF Coaxial Out Port
This port connects to external audio output devices with coaxial cable
connectors.
1
2
3
5
4
Line-in jack
Line-out jack
Microphone jack
10
For -8 models
For -6 models
