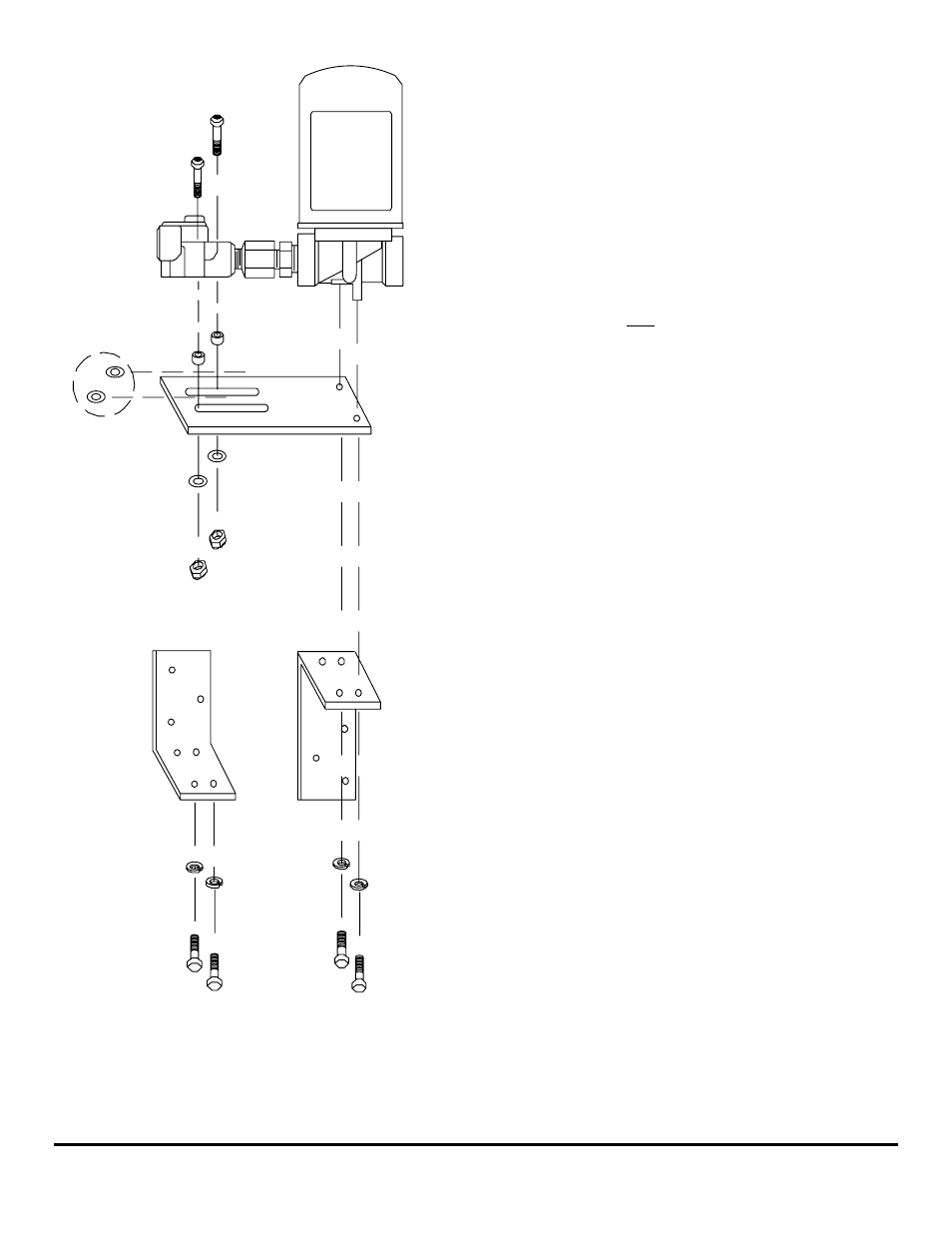

1. Place the Return Sensor-Pulsation Damper assembly, with
inlet and outlet fittings installed, onto the flat bracket.
Orient the Sensor body over the slots and the Pulsation
Damper base over the bolt holes.
FloScan
Additional
Flat Washers
If Needed
OR
Flat Washers
Long Spacers
Lock Washers
2-1/4"
Button Head
Cap Screws
Nylock Nuts
1-1/4"
Hex Head
Bolt
2. Slide a lock washer onto two 1¼” bolts.
3. Chose your 90° mounting bracket option. Assemble the
1¼” bolts through the angle and flat brackets into the
Pulsation Damper base.
4. Tighten the bolts a little past hand tight, compressing the
lock washers slightly.
5. Install the two long spacers between the Sensor body and
flat bracket.
6. Slide the two 2¼” button head cap screws through the
Sensor body, spacers, and flat bracket.
7. Grasp the Pulsation Damper and hold the flat bracket
against the Pulsation Damper’s base. Verify that the
Sensor’s base is perpendicular to the flat bracket.
8. If the Sensor and spacers are flush with the flat bracket,
install flat washers and ESNA nuts onto the 2¼” button
head cap screw ends and tighten until snug. The Pulsation
Damper and Sensor bolts should be tightened evenly.
9. If a small air gap is present between Sensor and spacers,
place one flat washer between each spacer and the flat
bracket.
10. Install flat washers and ESNA nuts onto the bolt ends and
tighten until snug. The Pulsation Damper and Sensor bolts
should be tightened evenly.
