Hydra HD – A Series User’s Guide
Copyright     2008 Entone, Inc. All rights reserved . 10

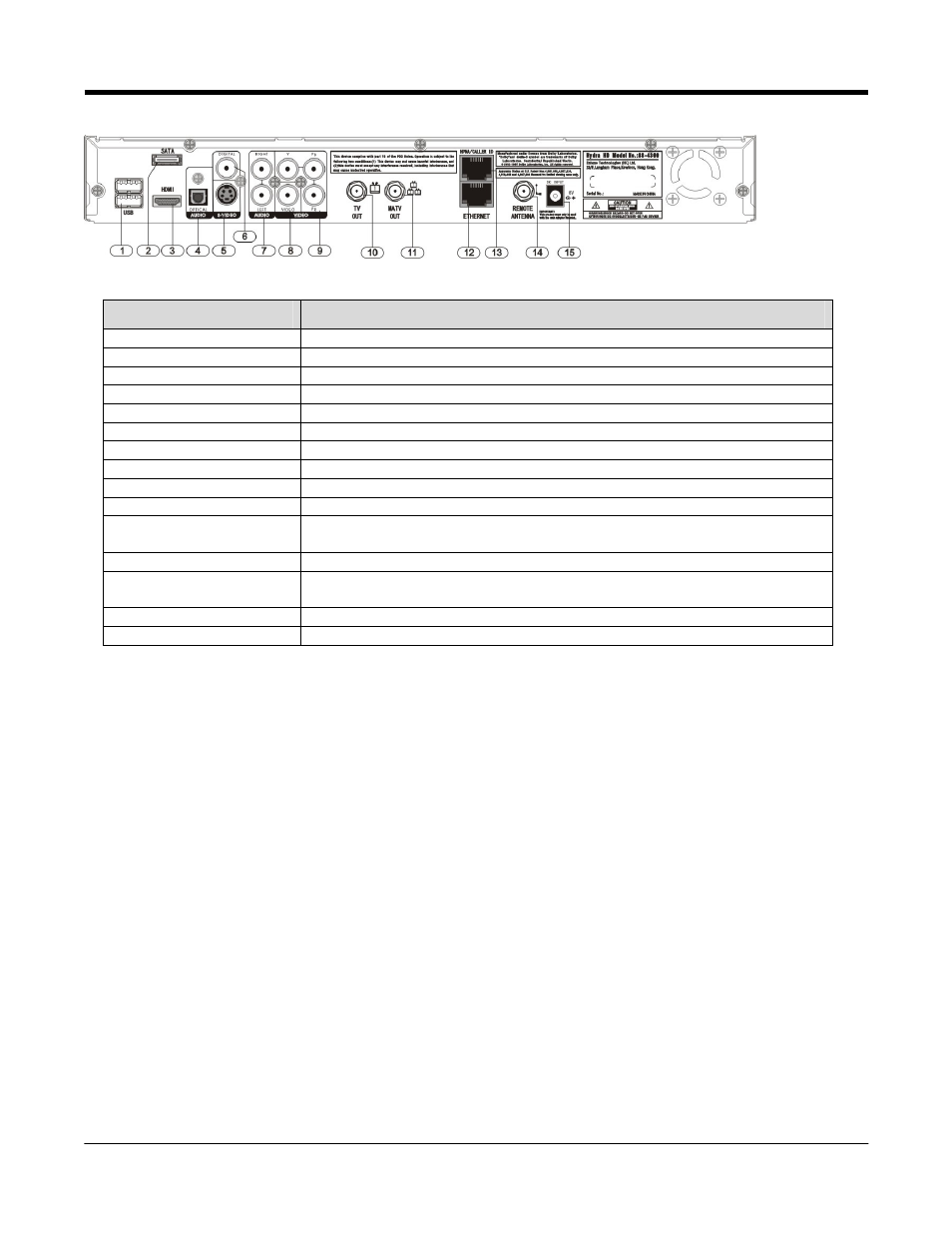

Figure 2-2 Hydra Rear Panel
Part Name Description
1. USB USB port for future use
2. SATA eSATA port for connecting to external SATA hard drive for DVR and PLTV
3. HDMI HDMI output for decoder 1
4. OPTICAL AUDIO S/PDIF digital optical audio TOSLINK output for decoder 1
5. S-VIDEO S-Video output for decoder 1
6. DIGITAL AUDIO S/PDIF digital coaxial RCA audio output for decoder 1
7. AUDIO LEFT / RIGHT Composite audio output for decoder 1
8. VIDEO Composite video output for decoder 1
9. Y Pb Pr Component video output for decoder 1
10. TV OUT RF Type-F connector for decoder 1 (factory set to channel 10)
11. MATV OUT RF Type-F connector for decoder 1, 2 and 3 (factory set to channel 10, 23 and
39)
12. ETHERNET RJ45 plug for connecting to ADSL modem or network access equipment
13. HPNA / Caller ID RJ11 plug for connecting to telephone line for caller ID display and optional
HomePNA
14. REMOTE ANTENNA RF Type-F connector for connecting the RF remote control antenna
15. DC INPUT 6V DC power jack
