OPERATION

MANUAL CONTROLS
(WITHOUT REMOTE OPTION)

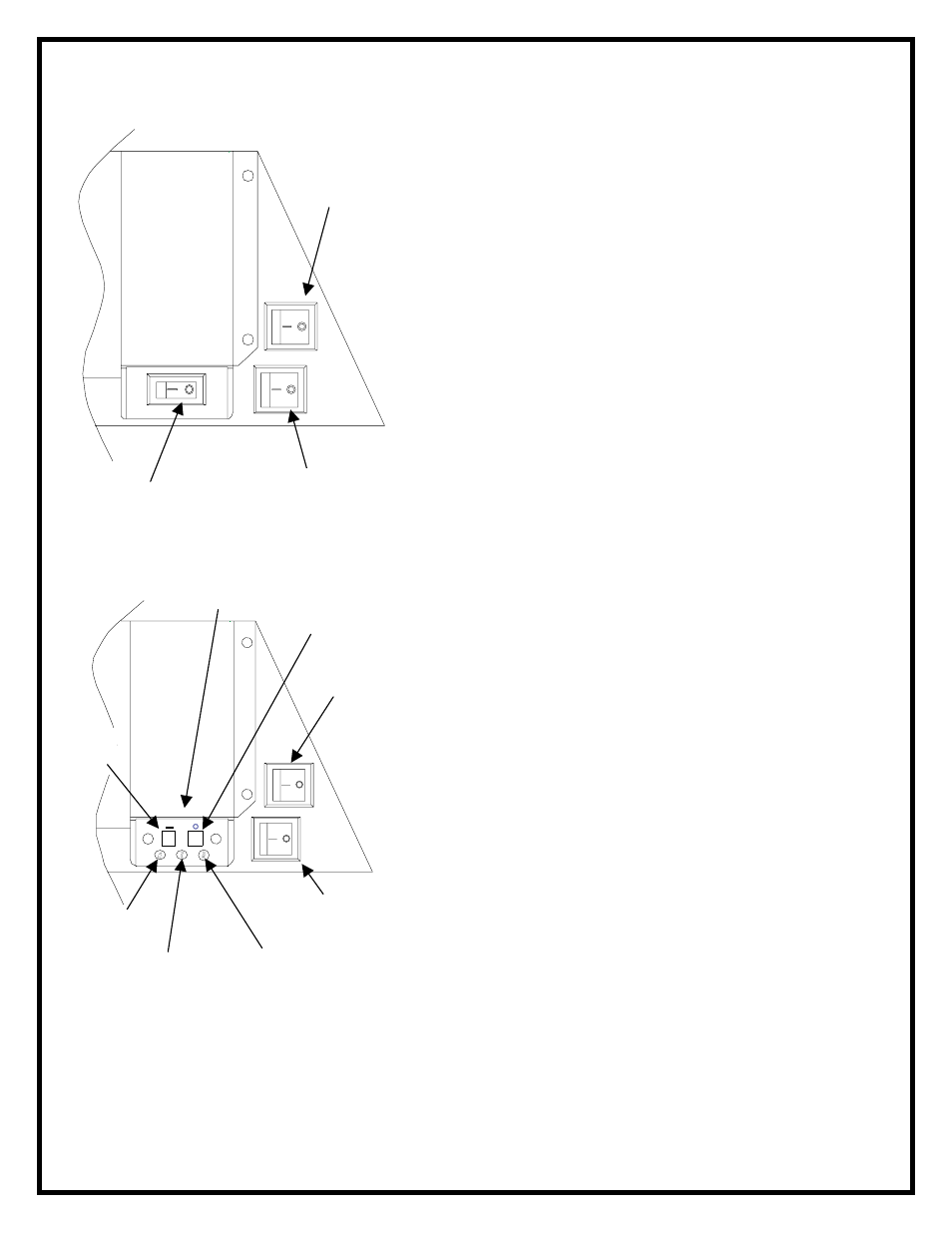

The fireplace can be controlled by the manual
switches located on the fireplace (FIGURE 1).

Main Power Switch
Main ON/OFF switch, activates the flame effect.

Heater Control Switch
Heater ON/OFF switch, activates heater to the high
level.

MANUAL CONTROLS
(WITH REMOTE OPTION)

The fireplace can also be controlled in a similar
manner to the remote control with the manual
switches located on the fireplace (FIGURE 2).
(refer to initialization instructions on page 2)

Main Power Switch
Main ON/OFF switch supplies power to the circuit
board. When the Main ON/OFF switch is switched to
the ON position the Level 1 indicator light will flash.

On Switch
1. Pressing once on the remote control board “ON

SWITCH” activates the Level 1 function.
Level 1:

The flame effect is turned on and the first

red indicator light is activated.

2. Pressing twice on the remote control board “ON

SWITCH” activates the Level 2 function.
Level 2:

The flame effect remains on, the Purifire

is activated if Purifire switch is in the “-“ position.
Heater remains off.

3. Pressing three times on the remote control board

“ON SWITCH” activates the Level 3 function.
Level 3:

The flame effect remains on, the Purifire

is activated if Purifire switch is in the “-“ position.
the heater is set to the high heat setting.

Off Switch
Pressing this button ONCE will turn the unit OFF.

OFF

SWITCH

ON

SWITCH

LEVEL 1

INDICATOR

LEVEL 2

INDICATOR

LEVEL 3

INDICATOR

FIGURE 2

HEATER CONTROL

SWITCH

FIGURE 1

MAIN POWER

SWITCH

MAIN POWER
SWITCH

BFRC

KIT

PURIFIRE

SWITCH

PURIFIRE

SWITCH
