BF33STP, BF33DXP
If the fireplace was operating prior to servicing allow at least 10 minutes for light bulbs
and heating elements to cool off to avoid accidental burning of skin.
Disconnect circuit power before attempting any maintenance or cleaning to reduce the
risk of electric shock or damage to persons.
TO REPLACE VOLTAGE SELECTOR SWITCH
(UNIT IS PERMENANTLY INSTALLED IN WALL)
15. Properly orientate the new switch and connect all of the wiring connections to the
heater elements.
NOTE: Ensure there is enough wire length to wire connect the wires together.
16. Cut and strip the brown and orange wires from the new voltage selector switch.
17. Use (2) wire connectors to connect the 4 stripped wire with their matching colour.
(brown wire with brown wire, orange wire with orange wire)
WARNING:
Ensure wires do not come in contact with moving parts by securing
wires in wiring tie wraps.
18. Using a sharp utility knife, cut 3.22” off of the length of the new rubber channel so
the overall length is 17.33”.
19. Reassemble in the reverse order as above.
NOTE:
Prior to installing the mirror, cut the one end off of the T-shaped groove on
the supplied rubber channel with a sharp utility knife as indicated in diagram below.
NOTE:
To install the mirror after the factory installed rubber channel has been cut,
use the channel that was supplied with the replacement motor / blower. Slide the
channel onto the edge of the mirror and push the other side of the mirror into the
existing rubber channel in the firebox, carefully press mirror into the mounting slot on
the firebox.
NOTE:
To replace the log set re-connect the logset LED wire harness to the unit,
insert the front edge, pushing back down until the rear tab snaps under the back
ledge and the logs are resting against the mirror.

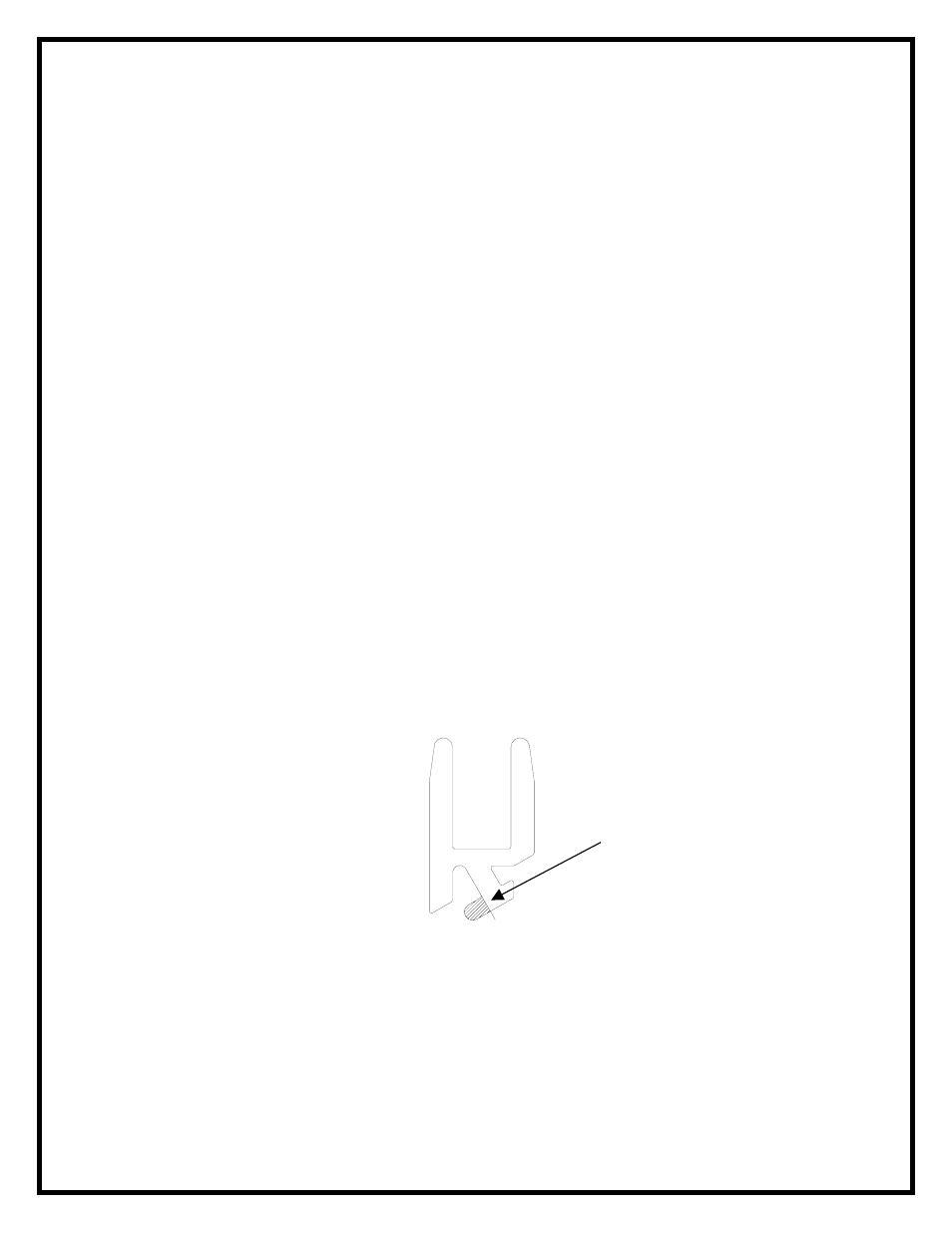

Remove the shaded area
from rubber channel with
sharp utility knife
