15 DR ® LEAF and LAWN VACUUM Optional Accessories
3. Make the horizontal (bottom) Template.
a) Using the vertical Reference Lines (Figure 17 on page 12),
place the Template Board beneath the Discharge Chute
with the leading edge aligned to the Reference Lines
(Figure 26) and centered right to left.
b) Clamp the Template Board in place and trace the outer
edge of the Discharge Chute on to the Template Board
(Figure 26).
c) Cut the outline from the Template Board. Center the
Template Board to match the Discharge Opening that
you traced on the side, tape it in place, and trace the
contour (Figure 27) on to the Universal Deck Adapter.
Your finished markings should look similar to those in
(Figure 28). Note how the two (2) patterns match at the
common edge.

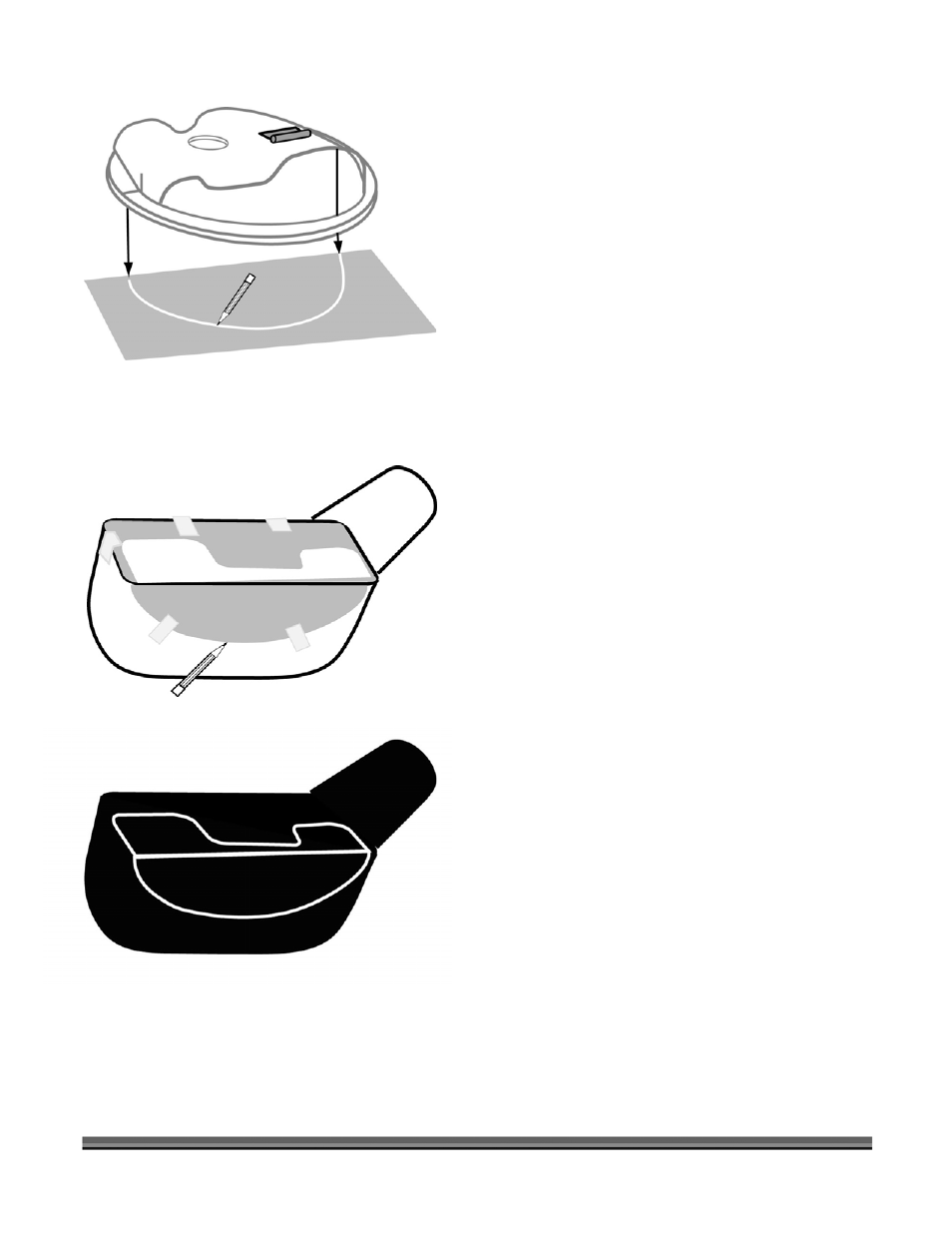

Figure 26
Figure 27
Figure 28
Completed Template Contours on Deck Adapter
