11 DR
®
LEAF and LAWN VACUUM Optional Accessories

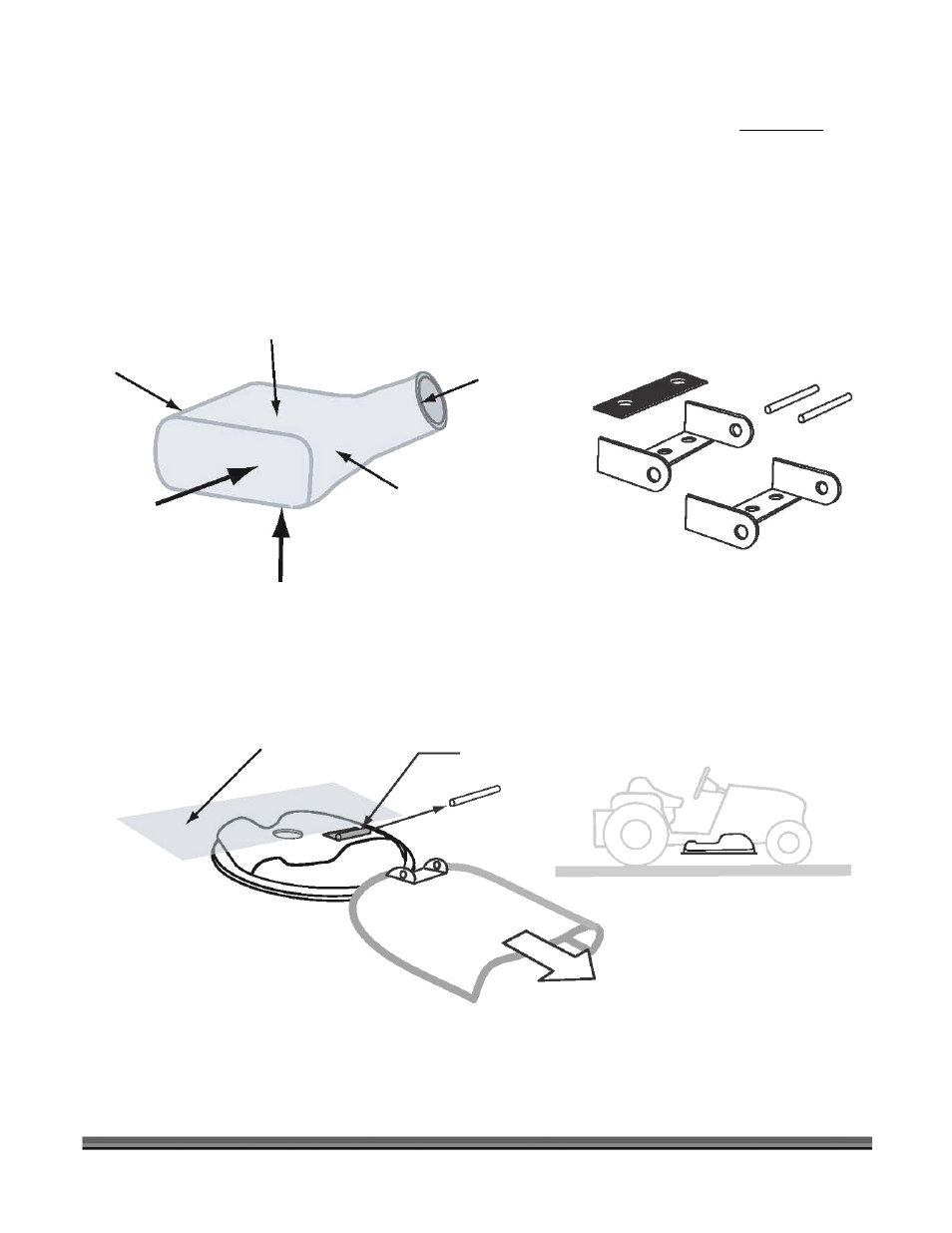

Figure 13
Figure 14
1. Before proceeding with the installation, familiarize yourself with the Parts, and the illustrations of
the Universal Lawn Deck Adapter as shown in Figure 13.
2. Thoroughly clean the exposed area of your Mower Deck so that it may be easily marked.
3. Remove the Hinge Pin from your Mower Deck Mounting Bracket (Figure 14) and remove the Discharge
Chute, Springs, and related parts from your Mower Deck. Do not remove the Mounting Bracket. (See
Reference Line instruction below). Save these parts for future use should you decide to return your Lawn
Mower Deck to its original configuration.
NOTE: You may wish to remove the Mower Deck from your Mower and place it on a bench at a comfortable
work height for these procedures.
Area Beneath Mower
Mounting Bracket
Hinge Pin
Typical Lawn Tractor with Mower Deck
Discharge Chute
Top
Discharge
Rear
Front
SIDE
(Vertical)
BOTTOM
(Horizontal)
UNIVERSAL DECK ADAPTER
DR Mounting Brackets
Hinge Pins
Base Plate
