DH Satellite Gibralter Gemini Sectional Antenna Mount - Manual (Page 3)

3/8" x 39" Ring

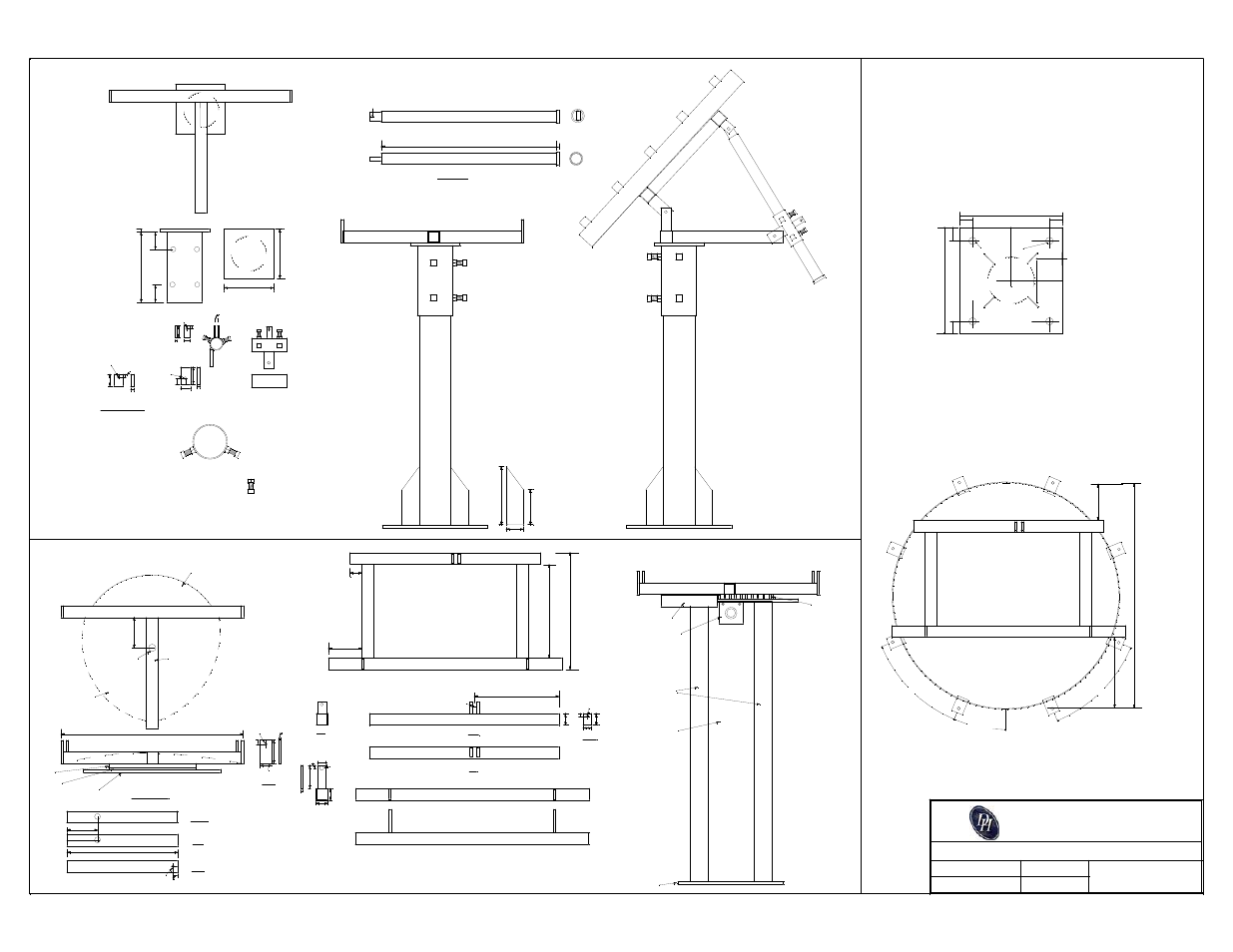

Gemini 39" Azel Mount & Fixed Mount
DH SATELLITE
PRAIRIE DU CHIEN, WISCONSIN 53821
PHONE (608) 326-8406
P.O. BOX 239
DESCRIPTION:
DRWN BY: DATE;
SCALE: REVISED:
DRWG#: GILBERTS 1-27-15
NOT TO SCALE
39AZELMT wblocks
weld
22.5°
45.0° 45.0°
2"
1/2"
1 1/2"
2"
17/32" Hole
End Side
Top
Tabs
14 1/2"
3/4"
38 1/2"
1/4" x 3" Fins
1/2" x 18" x 18" Plate
3/16" x 2" Dust Shroud
Motivario Gearbox
Chain Drive 16" 20"
12"
6 1/2"
4"
1 1/2" 3/4"
2"
2"
1/8" x 2" x 2" x 40" Square Tube
1/8" x 2" x 2" x 32 1/2" Square Tube
1/8" x 2" x 2" Square Tube
2"
5 3/4"
5 1/4"
1 1/4" Hole
1/8" x 2" x 2"x 30 1/2" Square Tube
1/4" x 2" x 2" x 19" Square Tube
Galvanized Tin Shroud
10 1/2" x 17 3/4"
Front Shroud 5 1/4" deep x 20 1/4" Long
4"
1 3/4"
3/8" 17/32" Hole 31 1/4"
1/8" x 2" x 2" Square Tube
T- Top
Tab
Top Plate
Wear Plate
Bottom Plate 1/2" x 23 1/2"
Bottom of T-
Top
Side
19"
5 1/4"
17/32" Hole
1/4" 2" x 2" Square Tube
3/4"
5 1/2" x 48" Sch. 40
Gibralter Gemini Dual Az-El Mount
3/4"
1/2"
3/4" Hole
2"
2"
18"
18"
1 1/4" Holes
Gemini Base Plate
1/4 x 3" Fins full length
12"
3"
3"
6" O.D. Pipe
3/16" Wall
3/4" x 1 1/2" Set Screws (4)
8 1/2"
8 1/2"
Stow Bar End Tab
5/8"
2"
1/2"
17/32" Hole
Stow Bar End Cap
2 1/4"
30"
1 7/8" x 30" Tube
1/2"
1" 1/4"
2"
17/32" Hole
1"
17/32" Hole
1/2" 1 3/4"
3"
1/2"
Gibralter Gemini Fixed
6"
4"
10"
Fins made from 1/4 x 4"
39" Ring w/blocks
PAGE 3
